Toyota FORTUNER (SUV) — TRANSFER ASSEMBLY & GASKET KIT

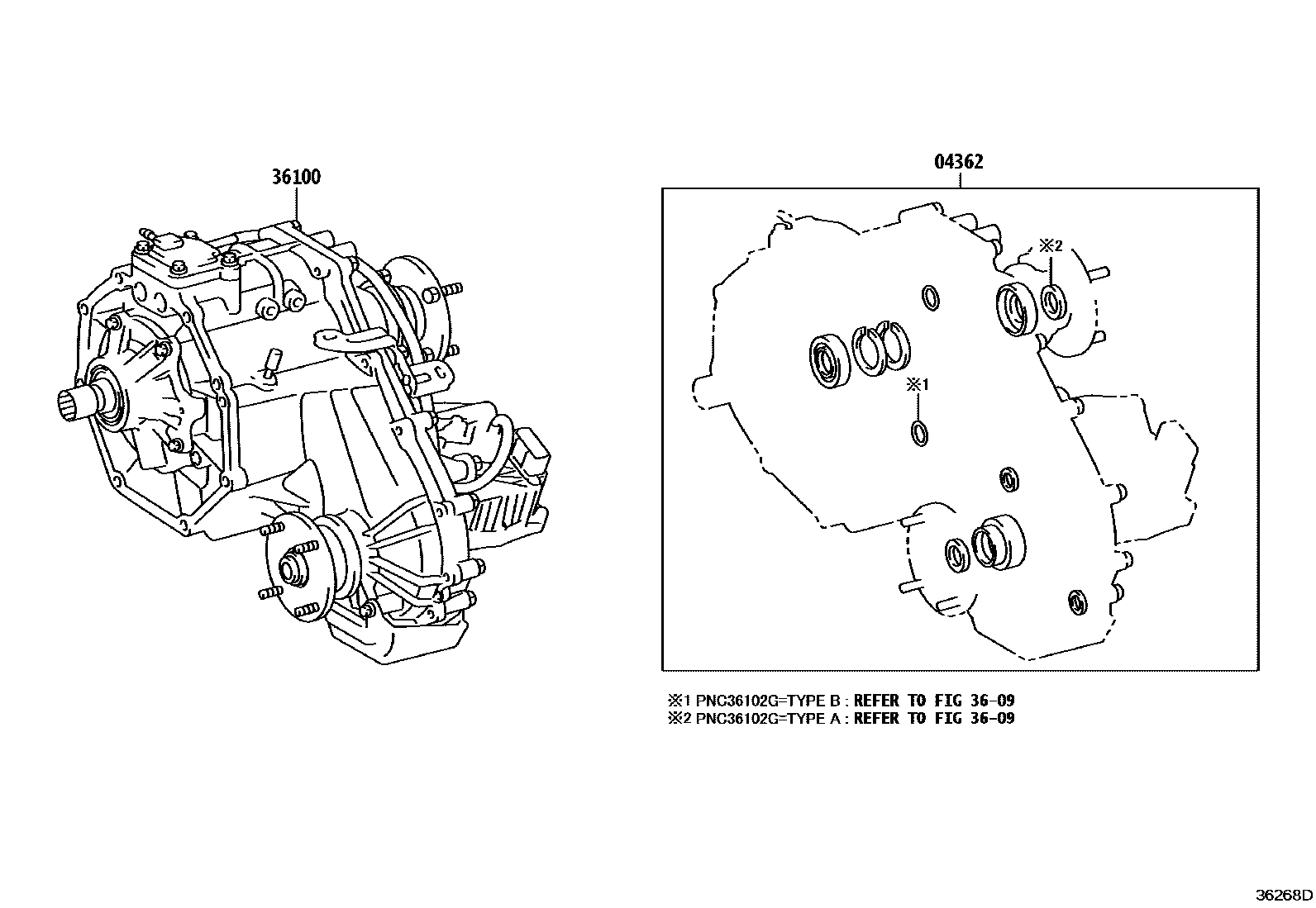

Parts diagram

04362GASKET KIT, TRANSFER OVERHAUL

main04362-0K020i202408

*382

main04362-71170i¥1,680202408

*381

3609

36100TRANSFER ASSY

main36100-0K440i202408

*382

main36100-0K460i202408

*382

main36100-71440i202408

*381

main36100-71460i¥130,000202408

*381

3 parts on this diagram · 1 diagram in section
