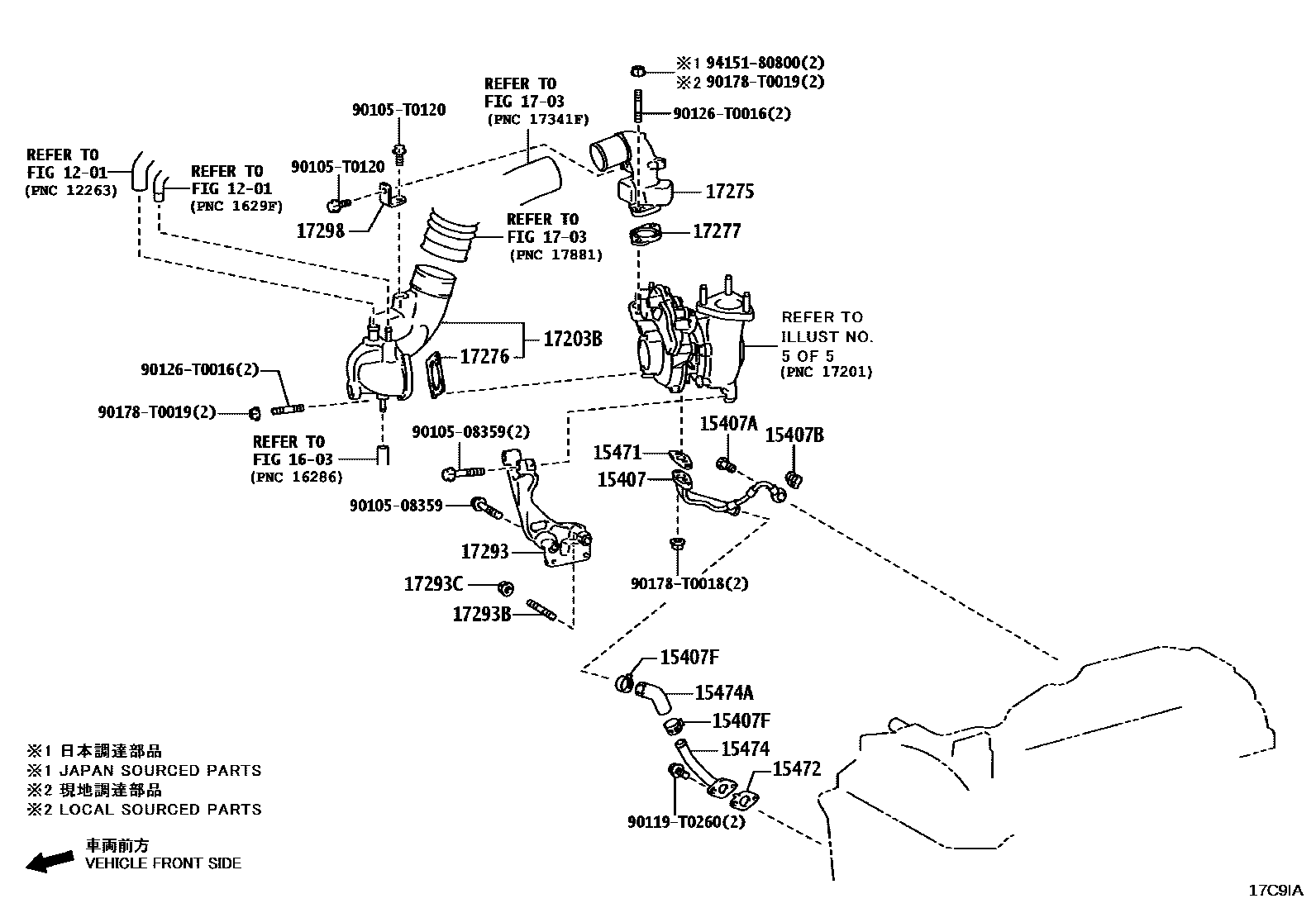

Toyota FORTUNER (SUV) — MANIFOLD
15407PIPE SUB-ASSY, TURBO OIL INLET
15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)
THA SOURCED PARTS
15407BGASKET(FOR TURBO OIL INLET PIPE)
THA SOURCED PARTS
15407FCLAMP OR CLIP, OIL HOSE
15471GASKET, TURBO OIL INLET
THA SOURCED PARTS
IND SOURCED PARTS
15472GASKET, TURBO OIL OUTLET, NO.1
THA SOURCED PARTS
IND SOURCED PARTS
15474PIPE, TURBO OIL OUTLET
THA SOURCED PARTS
IND SOURCED PARTS
15474AHOSE, TURBO OIL OUTLET
THA SOURCED PARTS
IND SOURCED PARTS
17203BELBOW SUB-ASSY, COMPRESSOR INLET
THA SOURCED PARTS
17275ELBOW, COMPRESSOR OUTLET
THA SOURCED PARTS
IND SOURCED PARTS
17276GASKET, COMPRESSOR INLET
THA SOURCED PARTS
17277GASKET, COMPRESSOR OUTLET
THA SOURCED PARTS
IND SOURCED PARTS
17293STAY, TURBOCHARGER
THA SOURCED PARTS
IND SOURCED PARTS
17293BBOLT(FOR TURBOCHARGER STAY)
17293CNUT(FOR TURBOCHARGER STAY)
17298STAY, COMPRESSOR ELBOW
THA SOURCED PARTS
IND SOURCED PARTS
9010508359
90105T0120
main90105-T0120
90119T0260
main90119-T0260
90126T0016
main90126-T0016
90178T0018
90178T0019
main90178-T0019
9415180800
23 parts on this diagram · 6 diagrams in section
