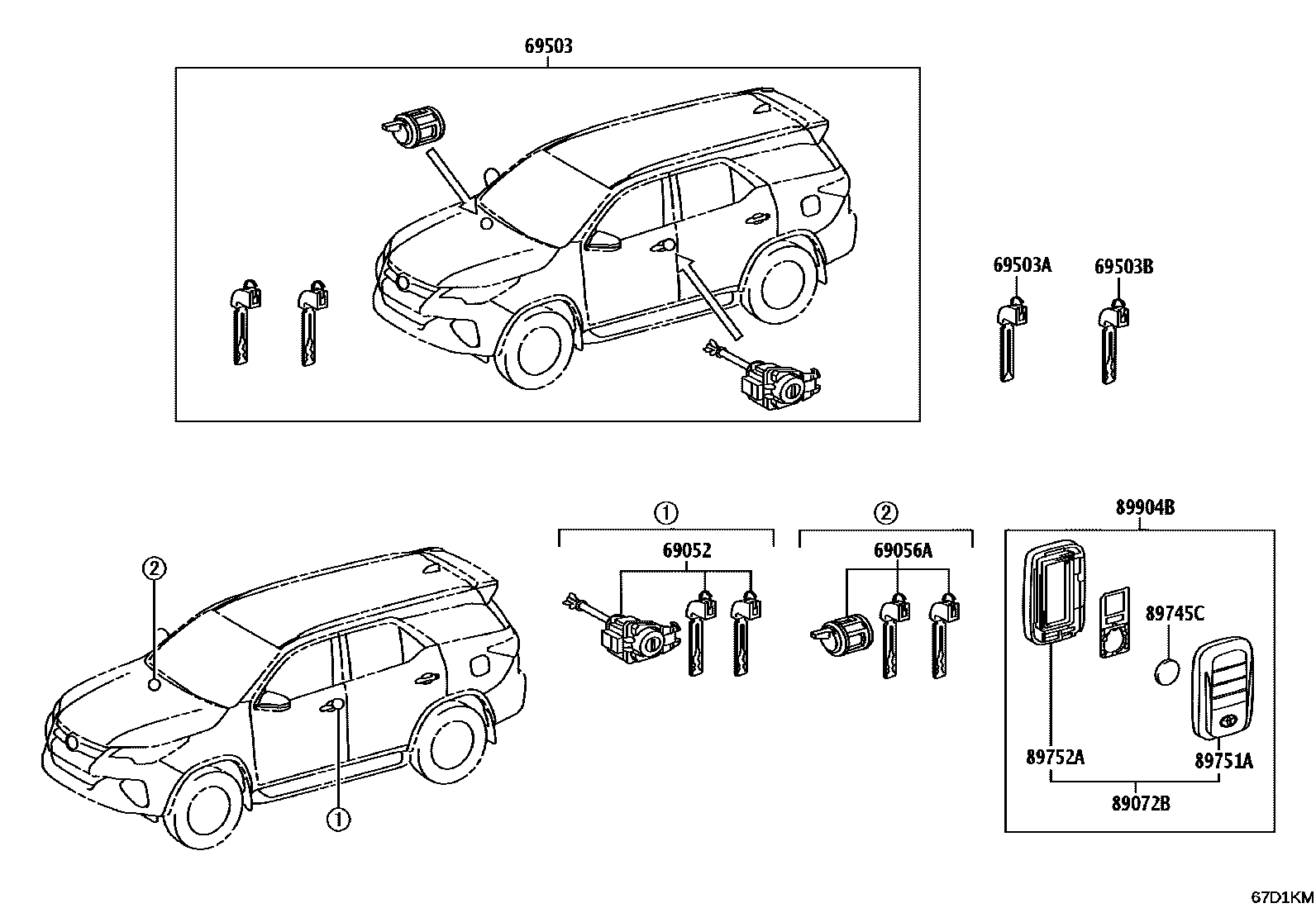

Toyota FORTUNER (SUV) — LOCK CYLINDER SET

0001 1WITH(SMART ENTRY) 0002 1WITH(WIRELESS DOOR LOCK)

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-0K060iGUN156,TGN156..L,S202408

main69052-0K070iGUN156..H202408

WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-0K050iGUN156,TGN156..L,S¥7,000202408

main69056-0K060iGUN156..H¥7,000202408

WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)

69503CYLINDER SET, LOCK

main69005-0KC70iGUN156..H202408

WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)

main69005-0KJ20iGUN156,TGN156..L,S202408

69503AKEY, BLANK

main69515-0K100iGUN156..H202408

MASTER KEY,W(*68),SMART KEY,INSIDE CUT

main69515-0K100iGUN156..H202408

MASTER KEY,W(*68),WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX),SMART KEY,INSIDE CUT

69503BKEY, CUT

main69515-0K070iGUN156..H¥7,100202408

MASTER KEY,W(*68),SMART KEY,INSIDE CUT

main69515-0K070iGUN156..H¥7,100202408

MASTER KEY,W(*68),WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX),SMART KEY,INSIDE CUT

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-0KF40iGUN156..H202408

89745CBATTERY, TRANSMITTER

main89745-0K010iGUN156..H¥440202408

CR2032

main89745-0K010iGUN156..H¥440202408

CR2032,WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)

89751ACOVER, TRANSMITTER HOUSING

main89751-0K140iGUN156..H202408

89752ACASE, TRANSMITTER HOUSING

main89752-0K740iGUN156..H202408

WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-0KM00iGUN156..H202408

10 parts on this diagram · 2 diagrams in section
