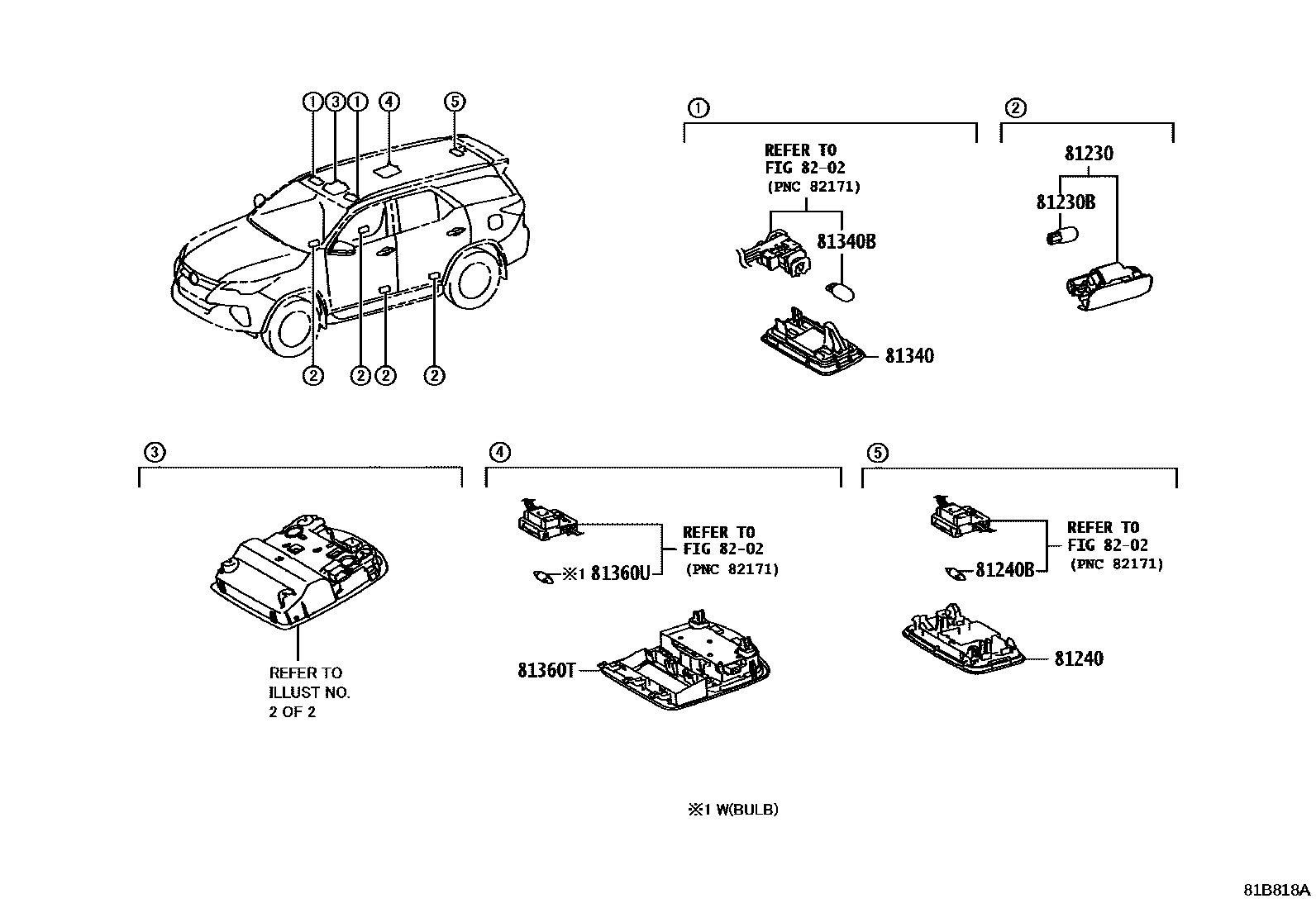

Toyota FORTUNER (SUV) — INTERIOR LAMP

0001 1 0002 1

81230LAMP ASSY, COURTESY

main81230-30200iGUN156,TGN156..6FC¥990202408

81230BBULB(FOR COURTESY LAMP)

main90981-12010iGUN156,TGN156..6FC¥110202408

12V 5W

81240LAMP ASSY, ROOM, NO.1

main81240-0K090-B0iGUN156,TGN156202408

LT.GRAY,TRIM2#,4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iTGN156¥180202408

12V 8W

81340LAMP ASSY, VANITY

main81340-0K030iGUN156..H202408

81340BBULB (FOR VANITY LAMP)

main90981-11062iGUN156..H¥340202408

12V 8W

81360TLAMP ASSY, SPOT

main81360-0K120-B0iTGN156202408

LT.GRAY,TRIM2#,4#

main81360-0K130-B0iGUN156202408

LT.GRAY,TRIM2#,4#

main81360-0K130-B0iGUN156202408

FRONT AIR CONDITIONER-AUTO,LT.GRAY,TRIM2#,4#

81360UBULB, SPOT LAMP

main90981-14011iTGN156¥180202408

FRONT AIR CONDITIONER-AUTO

8202

9 parts on this diagram · 2 diagrams in section
