Toyota FORTUNER (SUV) — INSIDE TRIM BOARD

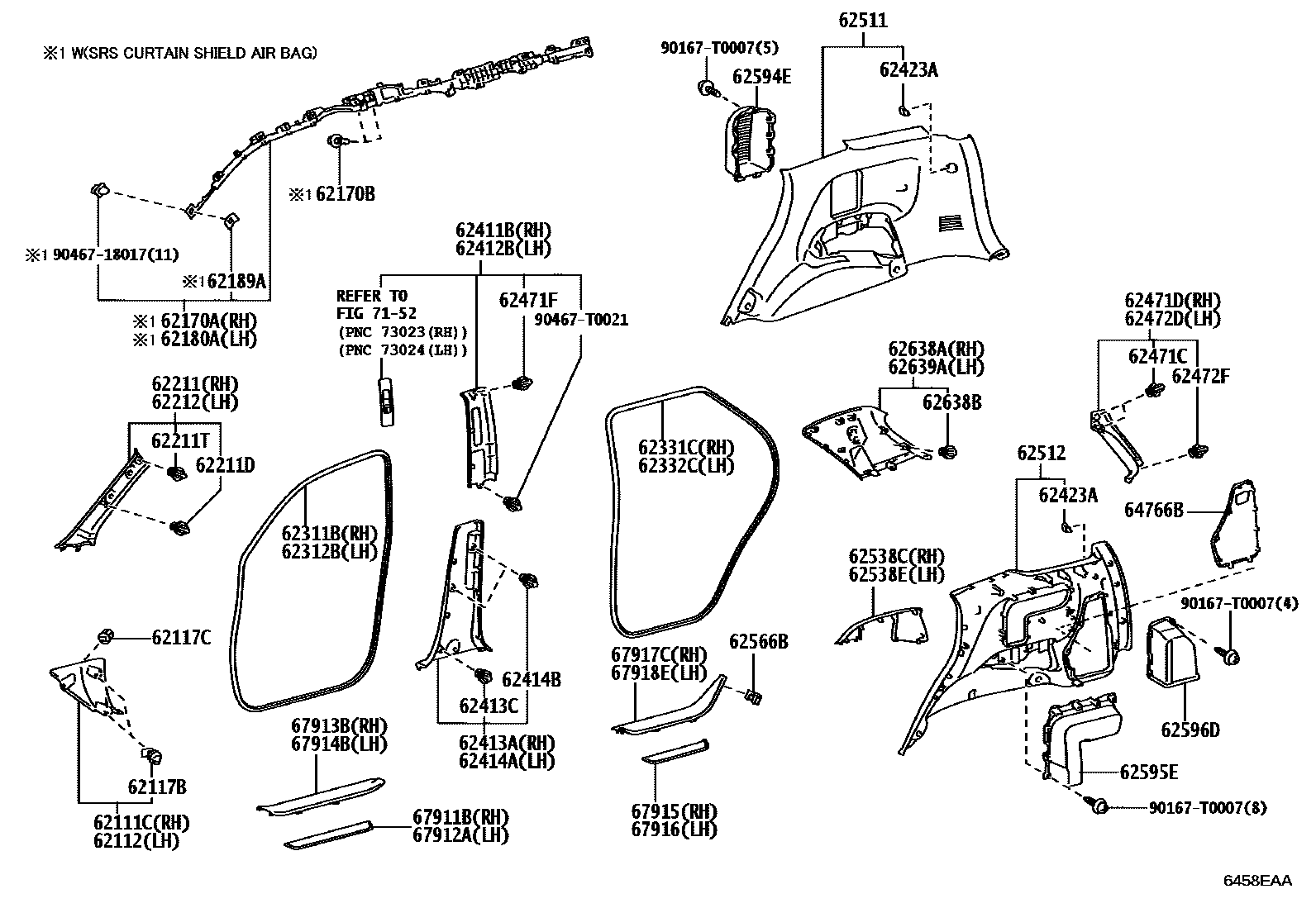

Parts diagram
62111CBOARD, COWL SIDE TRIM, RH
main62111-0K210-C0i202408
BLACK,TRIM2#,4#
62112BOARD, COWL SIDE TRIM, LH
main62112-0K210-C0i202408
BLACK,TRIM2#,4#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
main90467-11089-A0i202408
IVORY
sub90467-11089¥230
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
main90467-06147i¥80202408
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
main62170-0K111i202408
62170BBOLT, W/WASHER
main91673-80616i¥60202408
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
main62180-0K111i202408
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
main62189-42010i¥80202408
62211GARNISH, FRONT PILLAR, RH
main62211-0K190-B0i202408
LT.GRAY,TRIM2#,4#
main62211-0K200-B0i202408
LT.GRAY,TRIM2#,4#
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
main90467-T0021i202408
62211TCLIP(FOR FRONT PILLAR GARNISH)
main90467-10188i¥80202408
main90467-T0021i202408
62212GARNISH, FRONT PILLAR, LH
main62212-0K190-B0i202408-202507
LT.GRAY,TRIM2#,4#
main62212-0K200-B0i202408-202507
LT.GRAY,TRIM2#,4#
sub62212-0K201
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-0K111i¥7,300202408
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-0K111i¥7,300202408
62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-0K130i202408
62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-0K130i202408
62411BGARNISH, CENTER PILLAR, UPPER RH
main62411-0K120-B0i202408
LT.GRAY,TRIM2#,4#
62412BGARNISH, CENTER PILLAR, UPPER LH
main62412-0K120-B0i202408
LT.GRAY,TRIM2#,4#
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-0K110-C0i202408
BLACK,TRIM2#,4#
62413CCLIP (FOR CENTER LOWER GARNISH)
main90467-10167i¥90202408
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-0K110-C0i202408
BLACK,TRIM2#,4#
62414BCLIP (FOR CENTER LOWER GARNISH)
main90467-10188i¥80202408
62423AHOOK, SIDE WINDOW GARNISH
main62423-0K010-C0i202408
BLACK,TRIM2#,4#
62471CCLIP(FOR REAR PILLAR COVER)
main90467-10188i¥80202408
62471DGARNISH, REAR PILLAR, UPPER RH
main62471-0K200-B0i202408
LT.GRAY,TRIM2#,4#
62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)
main90467-10188i¥80202408
62472DGARNISH, REAR PILLAR, UPPER LH
main62472-0K200-B0i202408
LT.GRAY,TRIM2#,4#
62472FCLIP(FOR REAR PILLAR GARNISH)
main90467-T0021i202408
62511BOARD, QUARTER INSIDE TRIM, RH
main62510-0K320-C0i202408
BLACK,TRIM2#,4#
62512BOARD, QUARTER INSIDE TRIM, LH
main62520-0K260-C0i202408
BLACK,TRIM2#,4#
62538CCOVER, QUARTER TRIM, HOLE
main79937-0K070-C0i202408
BLACK,TRIM2#,4#
62538ECOVER, QUARTER TRIM, HOLE
main79937-0K080-C0i202408
BLACK,TRIM2#,4#
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
main62566-71010i¥210202408
62594EPOCKET, QUARTER TRIM, RH
main62594-0K130-C0i202408
BLACK,TRIM2#,4#
62595EPOCKET, QUARTER TRIM, LH
main62595-0K090-C0i202408
BLACK,TRIM2#,4#
62596DTRAY, QUARTER TRIM POCKET
main62596-0K030-C0i202408
BLACK,TRIM2#,4#
62638AGARNISH, QUARTER PILLAR, RH
main62638-0K170-B0i202408
LT.GRAY,TRIM2#,4#
main62638-0K180-B0i202408
LT.GRAY,TRIM2#,4#
62638BCLIP
main90467-T0021i202408
62639AGARNISH, QUARTER PILLAR, LH
main62639-0K170-B0i202408
LT.GRAY,TRIM2#,4#
main62639-0K180-B0i202408
LT.GRAY,TRIM2#,4#
64766BCOVER, QUARTER TRIM JACK
main64766-0K100-C0i202408
BLACK,TRIM2#,4#
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
main67911-0K030-C0i202408
BLACK,TRIM2#,4#
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
main67912-0K010-C0i202408
BLACK,TRIM2#,4#
67913BPLATE, FRONT DOOR SCUFF, RH
main67913-0K150-C0i202408
BLACK,TRIM2#,4#
67914BPLATE, FRONT DOOR SCUFF, LH
main67914-0K150-C0i202408
BLACK,TRIM2#,4#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
main67915-0K100-C0i202408
BLACK,TRIM2#,4#
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
main67916-0K100-C0i202408
BLACK,TRIM2#,4#
67917CPLATE, REAR DOOR SCUFF, RH
main67917-0K160-C0i202408
BLACK,TRIM2#,4#
67918EPLATE, REAR DOOR SCUFF, LH
main67918-0K160-C0i202408
BLACK,TRIM2#,4#
7152
90167T0007
main90167-T0007¥60
9046718017
main90467-18017¥180
90467T0021
main90467-T0021

52 parts on this diagram · 1 diagram in section
