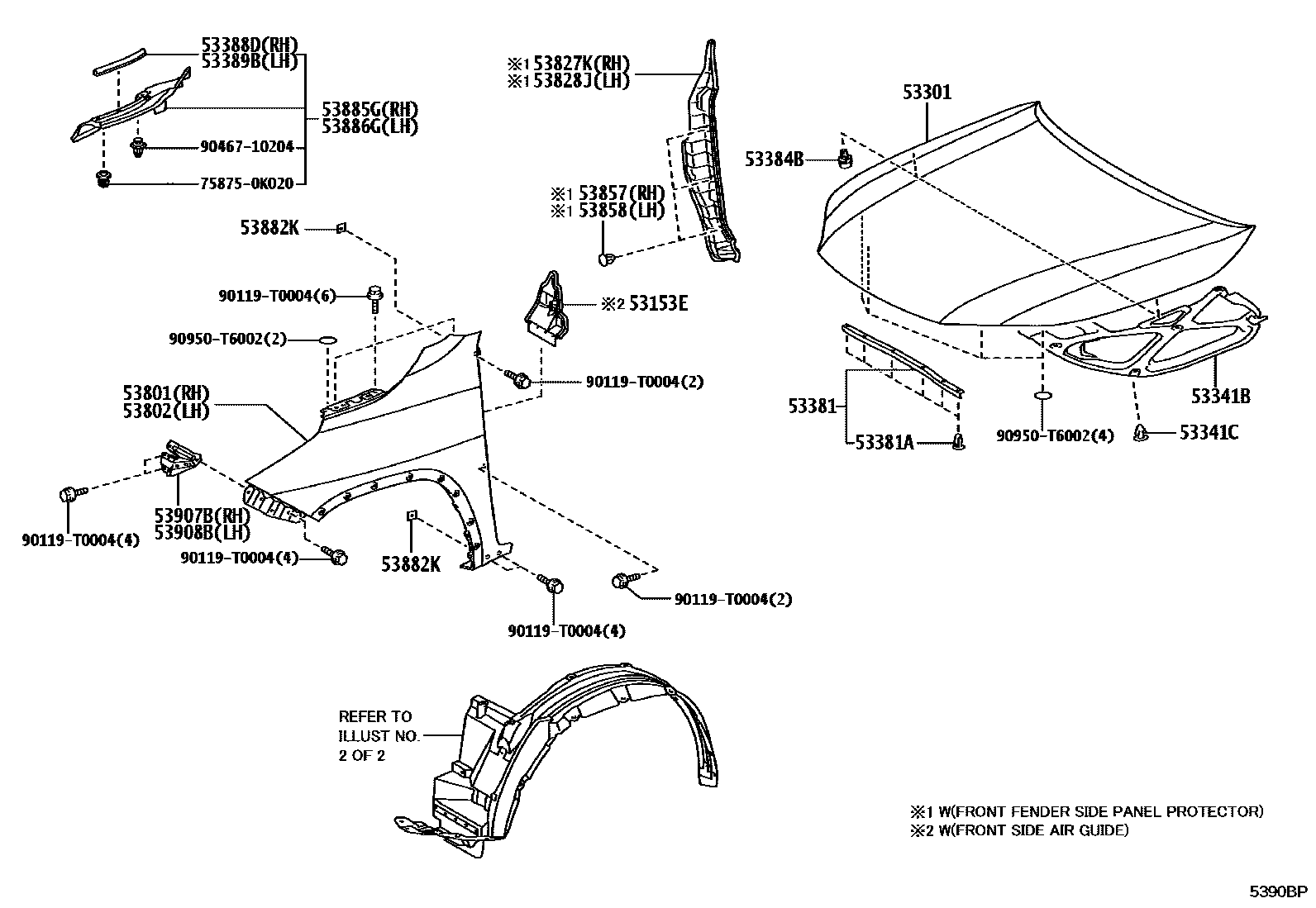

Toyota FORTUNER (SUV) — HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53153EGUIDE, FRONT SIDE AIR

main53153-0K040iGUN156202408

53301HOOD SUB-ASSY

main53301-KK031iGUN156,TGN156202408

53341BINSULATOR, HOOD

main53341-0K251iGUN156,TGN156¥10,800202408

53341CCLIP(FOR HOOD INSULATOR)

main90467-T0014iGUN156,TGN156202408

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-0K080iGUN156,TGN156¥720202408

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-T0013iGUN156,TGN156202408

53384BCUSHION, HOOD, CENTER

main53384-0K040iGUN156,TGN156¥100202408

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-0K080iGUN156,TGN156202408

53389BSEAL, HOOD TO FRONT FENDER, LH

main53388-0K080iGUN156,TGN156202408

53801FENDER SUB-ASSY, FRONT RH

main53801-KK020iGUN156,TGN156¥30,300202408

53802FENDER SUB-ASSY, FRONT LH

main53802-KK020iGUN156,TGN156202408

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0K010iGUN156,TGN156..6FC¥2,540202408

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0K010iGUN156,TGN156..6FC¥2,540202408

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-0K010iGUN156,TGN156..6FC202408

(L)

main53857-47011iGUN156,TGN156..6FC¥60202408

(J)

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-0K010iGUN156,TGN156..6FC202408

(L)

main53857-47011iGUN156,TGN156..6FC¥60202408

(J)

53882KSEAL, FRONT FENDER

main53882-33060iGUN156,TGN156¥60202408

53885GSEAL SUB-ASSY, FENDER APRON MUDGUARD, RH

main53807-0K180iGUN156,TGN156202408

53886GSEAL, FENDER APRON MUDGUARD, LH

main53808-0K180iGUN156,TGN156202408

53907BEXTENSION SUB-ASSY, FRONT END PANEL, RH

main53941-KK070iGUN156,TGN156202408

53908BEXTENSION SUB-ASSY, FRONT END PANEL, LH

main53942-KK070iGUN156,TGN156202408

758750K020MOULDING, BACK DOOR OUTSIDE, UPPER

main75875-0K020¥210

90119T0004

main90119-T0004

9046710204

main90467-10204¥90

90950T6002

main90950-T6002

24 parts on this diagram · 2 diagrams in section
