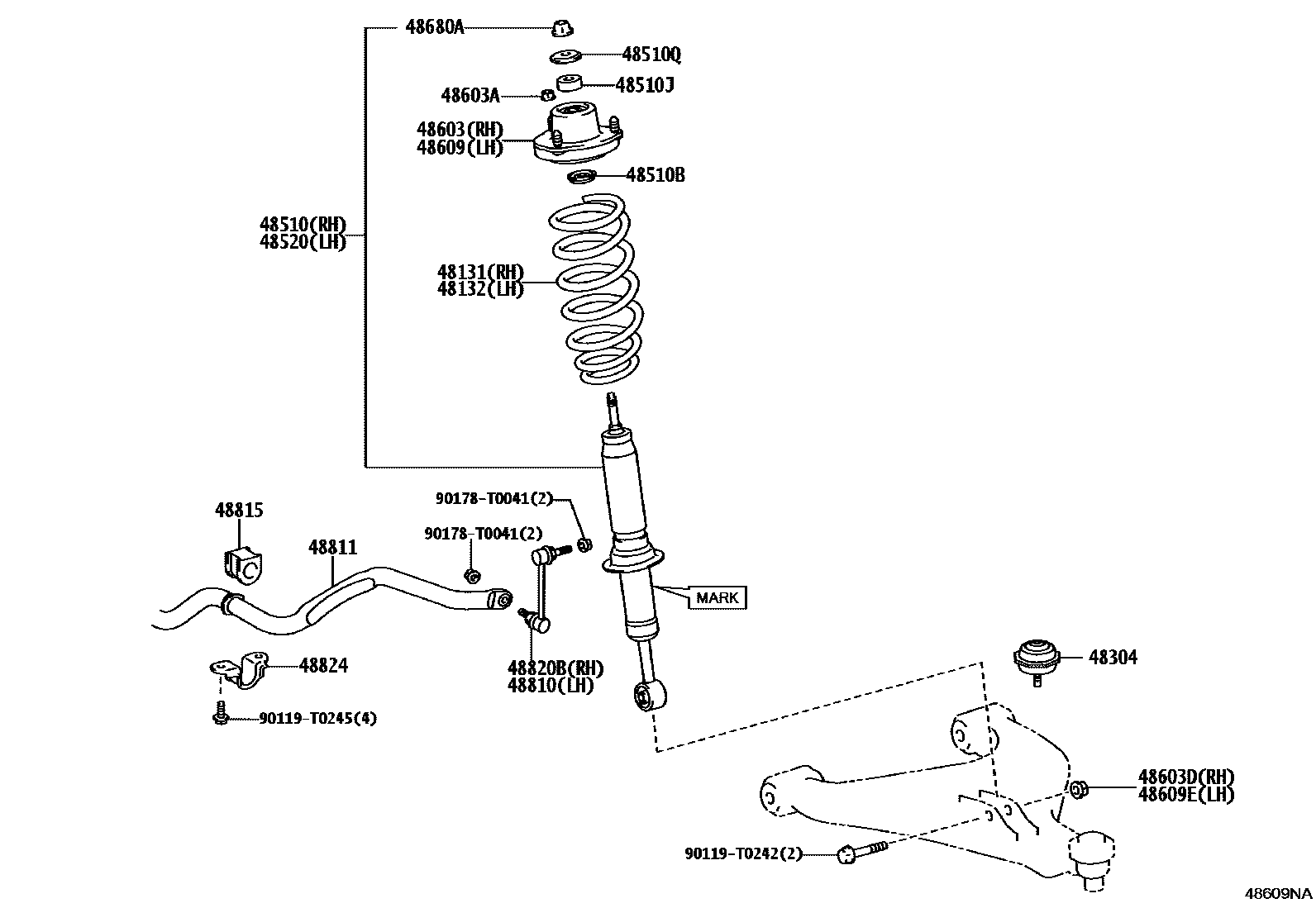

Toyota FORTUNER (SUV) — FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-0KG71iTGN156202408

main48131-0KN81iGUN156202408

48132SPRING, FRONT COIL, LH

main48131-0KG71iTGN156202408

main48131-0KK91iGUN156202408

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-0K041iGUN156,TGN156¥1,540202408

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-8Z194iTGN156202408

MARK 48510-0KA10

main48510-8Z208iGUN156202408

MARK 48510-0KA20

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-T2003iGUN156,TGN156202408

48510JCUSHION, FRONT SHOCK ABSORBER, NO.1

main90948-T1013iGUN156,TGN156¥300202408

48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)

main90948-T2004iGUN156,TGN156202408

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-8Z194iTGN156202408

MARK 48510-0KA10

main48510-8Z208iGUN156202408

MARK 48510-0KA20

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-0K070iGUN156,TGN156¥2,910202408

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-T0050iGUN156,TGN156202408

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90178-T0048iGUN156,TGN156202408

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-0K070iGUN156,TGN156¥2,910202408

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90178-T0048iGUN156,TGN156202408

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-T0015iGUN156,TGN156202408

48810LINK ASSY, FRONT STABILIZER, LH

main48810-0K010iGUN156,TGN156¥4,390202408-202506

48811BAR, STABILIZER, FRONT

main48811-0K170iGUN156,TGN156¥14,200202408

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-0K090iGUN156,TGN156¥850202408

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-0K030iGUN156,TGN156¥4,390202408-202506

48824BRACKET, STABILIZER, FRONT

main48824-KK010iGUN156,TGN156¥1,170202408

90119T0242

main90119-T0242¥310

90119T0245

main90119-T0245¥120

90178T0041

main90178-T0041

22 parts on this diagram · 1 diagram in section
