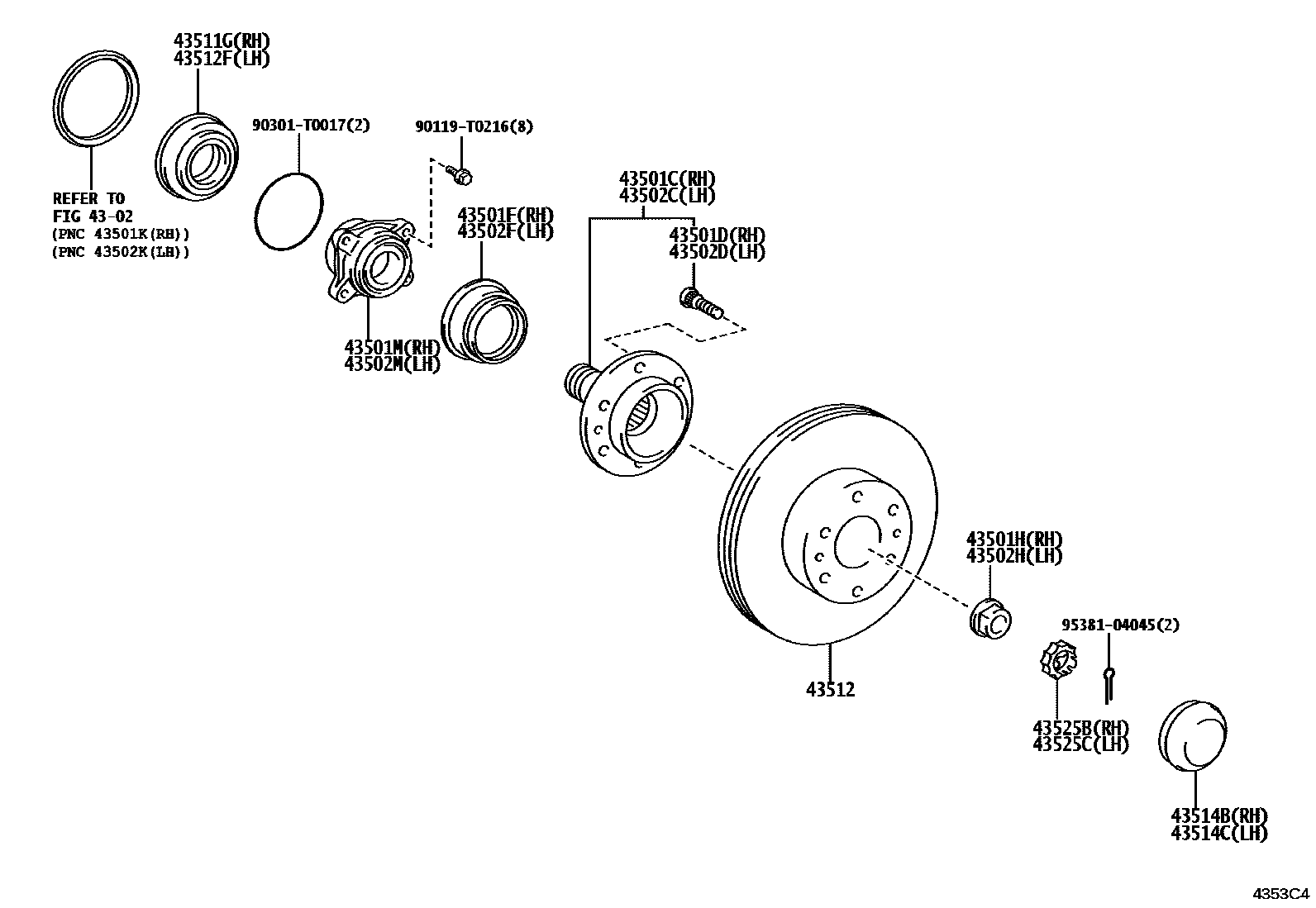

Toyota FORTUNER (SUV) — FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-KK010iGUN156,TGN156¥8,900202408

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02081iGUN156,TGN156¥240202408

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90312-T0001iGUN156,TGN156¥520202408

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90178-T0113iGUN156,TGN156202408

43501MBEARING (FOR FRONT AXLE HUB INNER RH)

main90366-T0061iGUN156,TGN156¥6,800202408

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-KK010iGUN156,TGN156¥8,900202408

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02081iGUN156,TGN156¥240202408

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90312-T0001iGUN156,TGN156¥520202408

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90178-T0113iGUN156,TGN156202408

43502MBEARING (FOR FRONT AXLE HUB INNER LH)

main90366-T0061iGUN156,TGN156¥6,800202408

43511GSEAL, OIL (FOR FRONT AXLE HUB OUTER RH)

main90316-T0002iGUN156,TGN156¥1,160202408

43512DISC, FRONT

main43512-0K210iGUN156,TGN156¥10,100202408

43512FSEAL, OIL (FOR FRONT AXLE HUB OUTER LH)

main90316-T0002iGUN156,TGN156¥1,160202408

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-0K010iGUN156,TGN156202408

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-0K010iGUN156,TGN156202408

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-71010iGUN156,TGN156¥200202408

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-71010iGUN156,TGN156¥200202408

90119T0216

main90119-T0216

90301T0017

main90301-T0017

9538104045

main95381-04045¥60

21 parts on this diagram · 1 diagram in section
