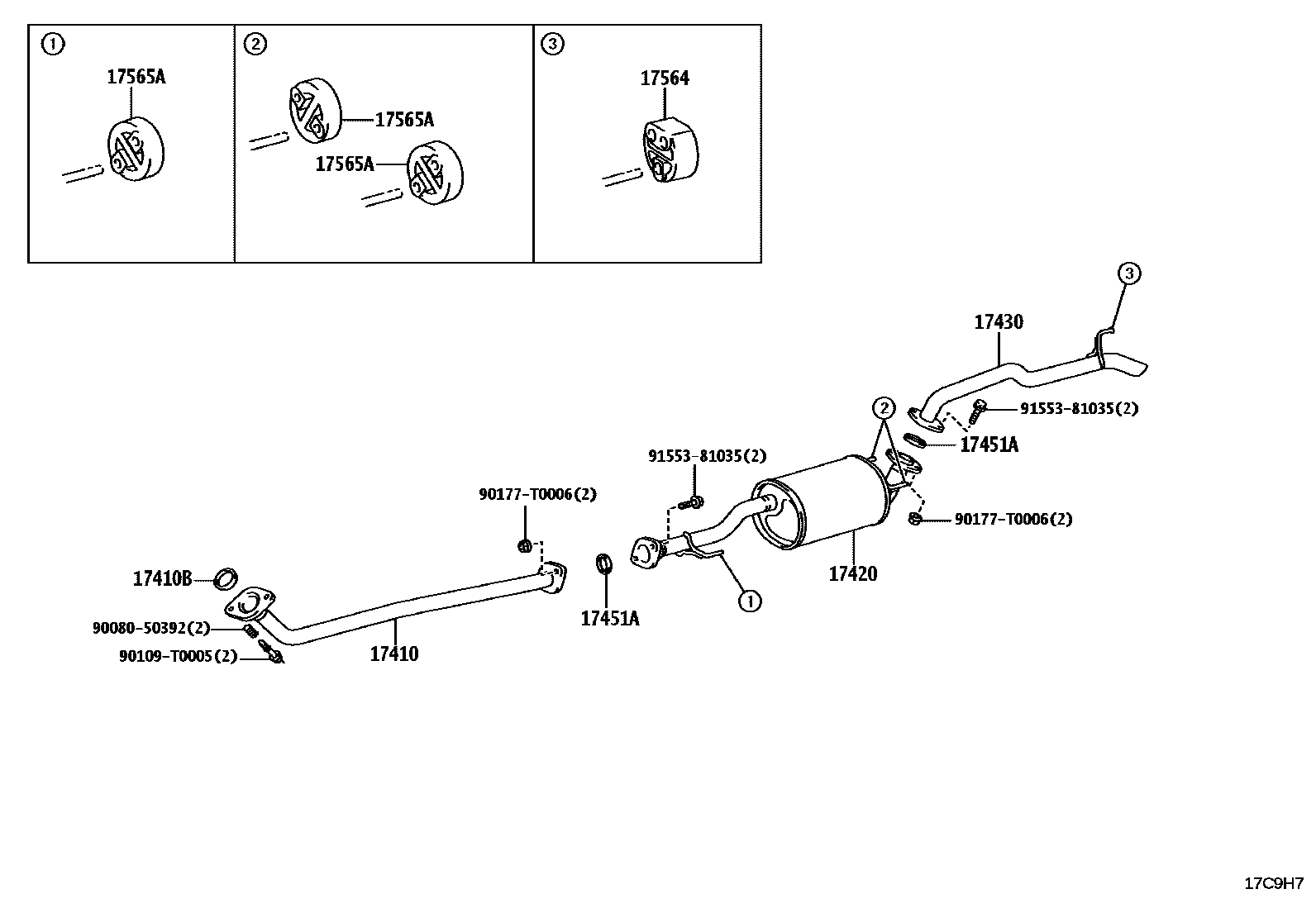

Toyota FORTUNER (SUV) — EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17401-0C701i2TRFE..TGN156202408

main17401-0L210i1GDFTV..GUN156202408

17410BGASKET, EXHAUST PIPE

main17451-0L050i1GDFTV,2TRFE..GUN156,TGN156202408

17420PIPE ASSY, EXHAUST, CENTER

main17403-0C070i2TRFE..TGN156202408

main17403-0L200i1GDFTV..GUN156202408

17430PIPE ASSY, EXHAUST, TAIL

main17405-0C190i2TRFE..TGN156202408

main17405-0L220i1GDFTV..GUN156202408

17451AGASKET, EXHAUST PIPE, NO.2

main90917-T6002i1GDFTV,2TRFE..GUN156,TGN156202408

17564SUPPORT,EXHAUST PIPE, NO.4

main17565-0L100i1GDFTV,2TRFE..GUN156,TGN156202408

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0P240i2TRFE..TGN156202408

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0P240i1GDFTV,2TRFE..GUN156,TGN156202408

9008050392

main90080-50392

90109T0005

main90109-T0005¥190

90177T0006

main90177-T0006¥220

9155381035

main91553-81035¥120

12 parts on this diagram · 2 diagrams in section
