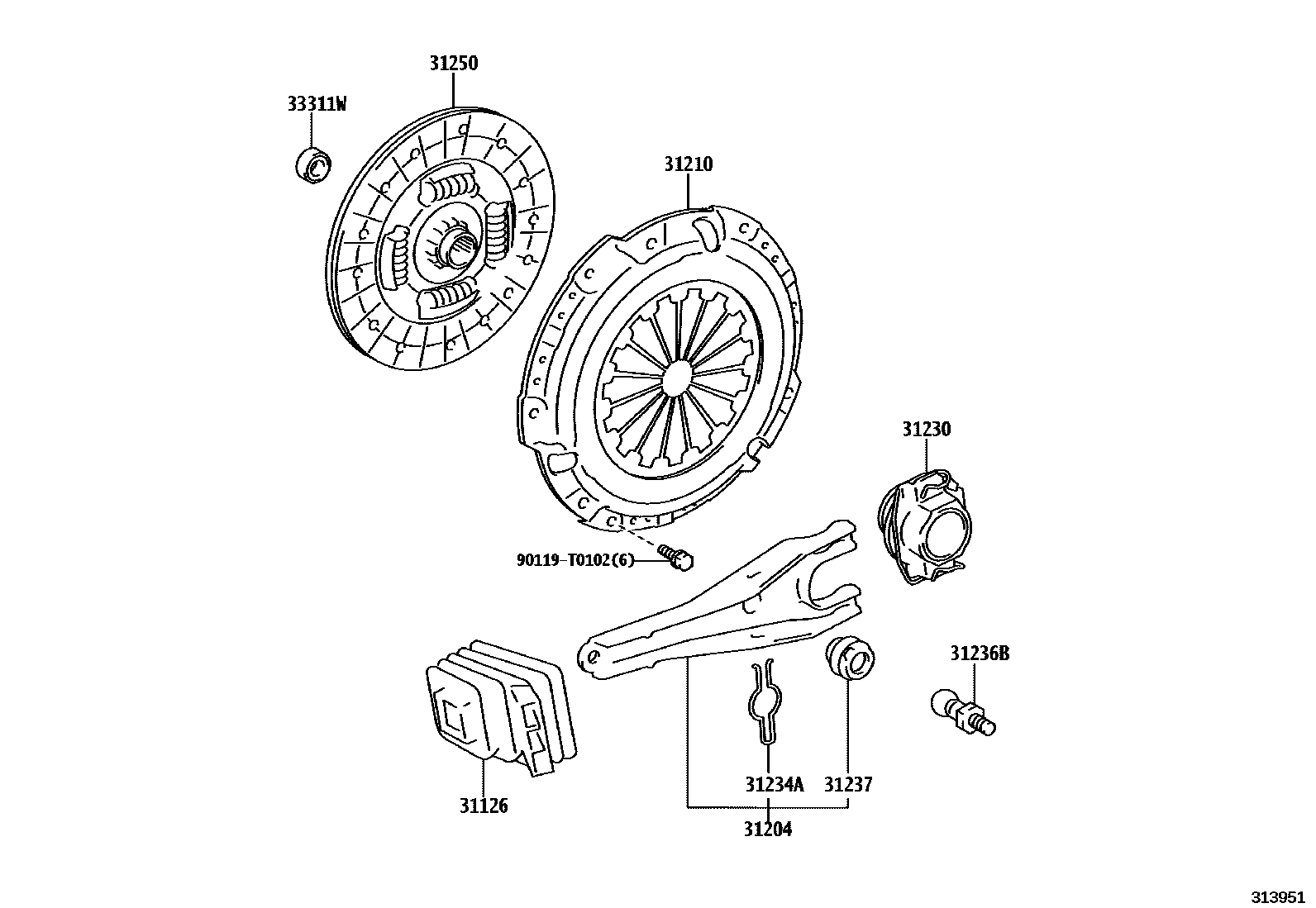

Toyota FORTUNER (SUV) — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-0K090iTGN156..L202408

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-0K190iTGN156..L202408

31210COVER ASSY, CLUTCH

main31210-0K260iTGN156..L202408

31230BEARING ASSY, CLUTCH RELEASE

main31230-0K040iTGN156..L202408

31234ASPRING, RELEASE FORK SUPPORT

main31234-71020iTGN156..L202408

31236BSUPPORT, RELEASE FORK

main31236-0K060iTGN156..L202408

31237BOOT, CLUTCH RELEASE FORK SUPPORT

main31237-0K020iTGN156..L202408

31250DISC ASSY, CLUTCH

main31250-0K261iTGN156..L202408-202409

sub31250-0K262

main31250-0K262iTGN156..L202409

33311WBEARING (FOR INPUT SHAFT)

main90363-T0019iTGN156..L202408

90119T0102

main90119-T0102¥80

10 parts on this diagram · 1 diagram in section
