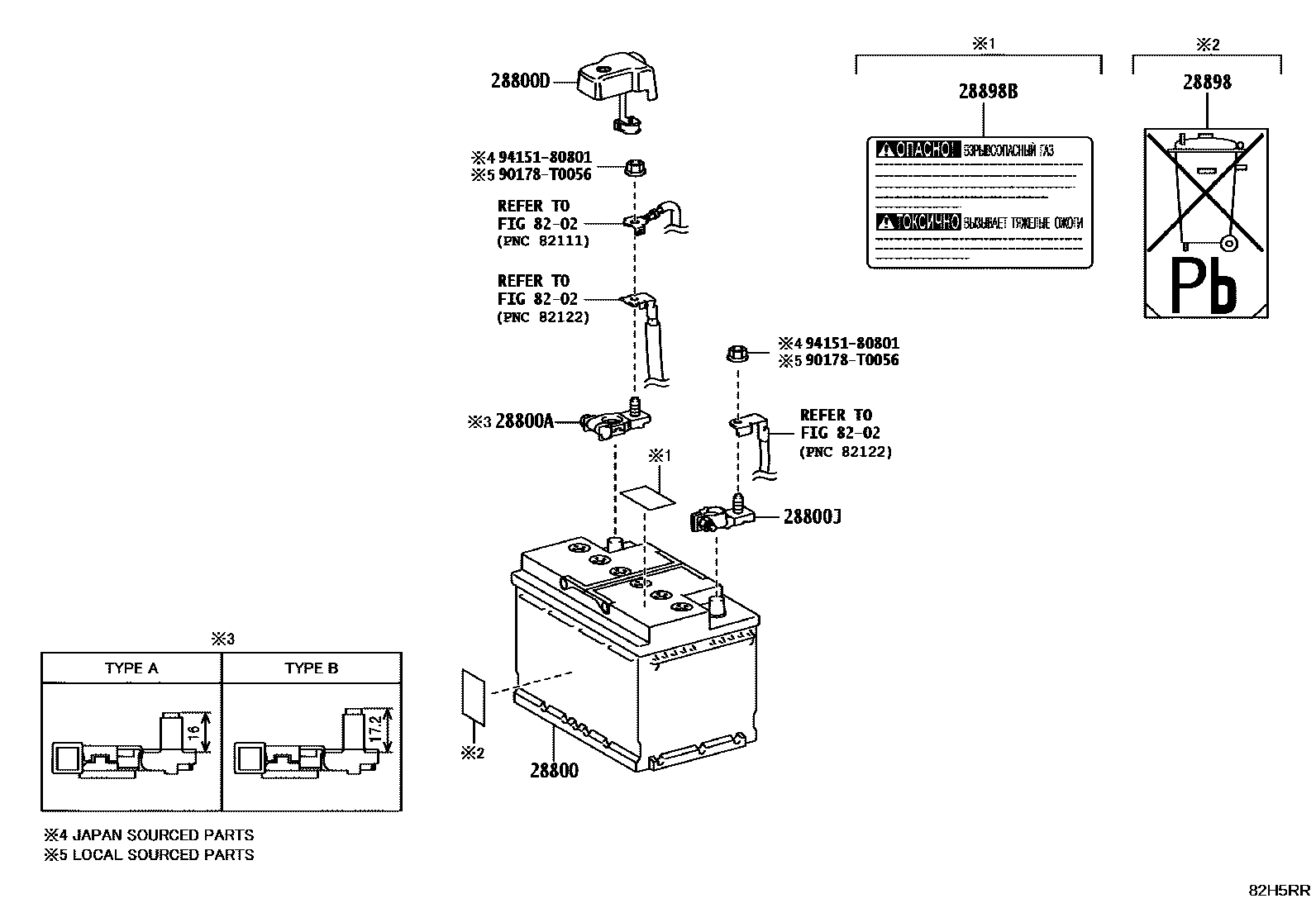

Toyota FORTUNER (SUV) — BATTERY & BATTERY CABLE

28800BATTERY

main28800-0L504i2TRFE..TGN156202408

LN3,FURUKAWA

main28800-0L511i1GDFTV..GUN156¥48,600202408

LN4

main28800-0L572i2TRFE..TGN156202408

LN3,YUASA

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i1GDFTV,2TRFE..GUN156,TGN156¥850202408

TYPE A:REFER ILLUST.

main90982-05061i1GDFTV,2TRFE..GUN156,TGN156¥850202408

TYPE B:REFER ILLUST.

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-33350i1GDFTV,2TRFE..GUN156,TGN156¥640202408

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i1GDFTV,2TRFE..GUN156,TGN156¥850202408

28898PLATE, BATTERY

main28898-0L010i1GDFTV,2TRFE..GUN156,TGN156202408

28898BPLATE, BATTERY

main28897-31040i1GDFTV,2TRFE..GUN156,TGN156¥180202408

8202

90178T0056

main90178-T0056

9415180801

main94151-80801¥80

9 parts on this diagram · 1 diagram in section
