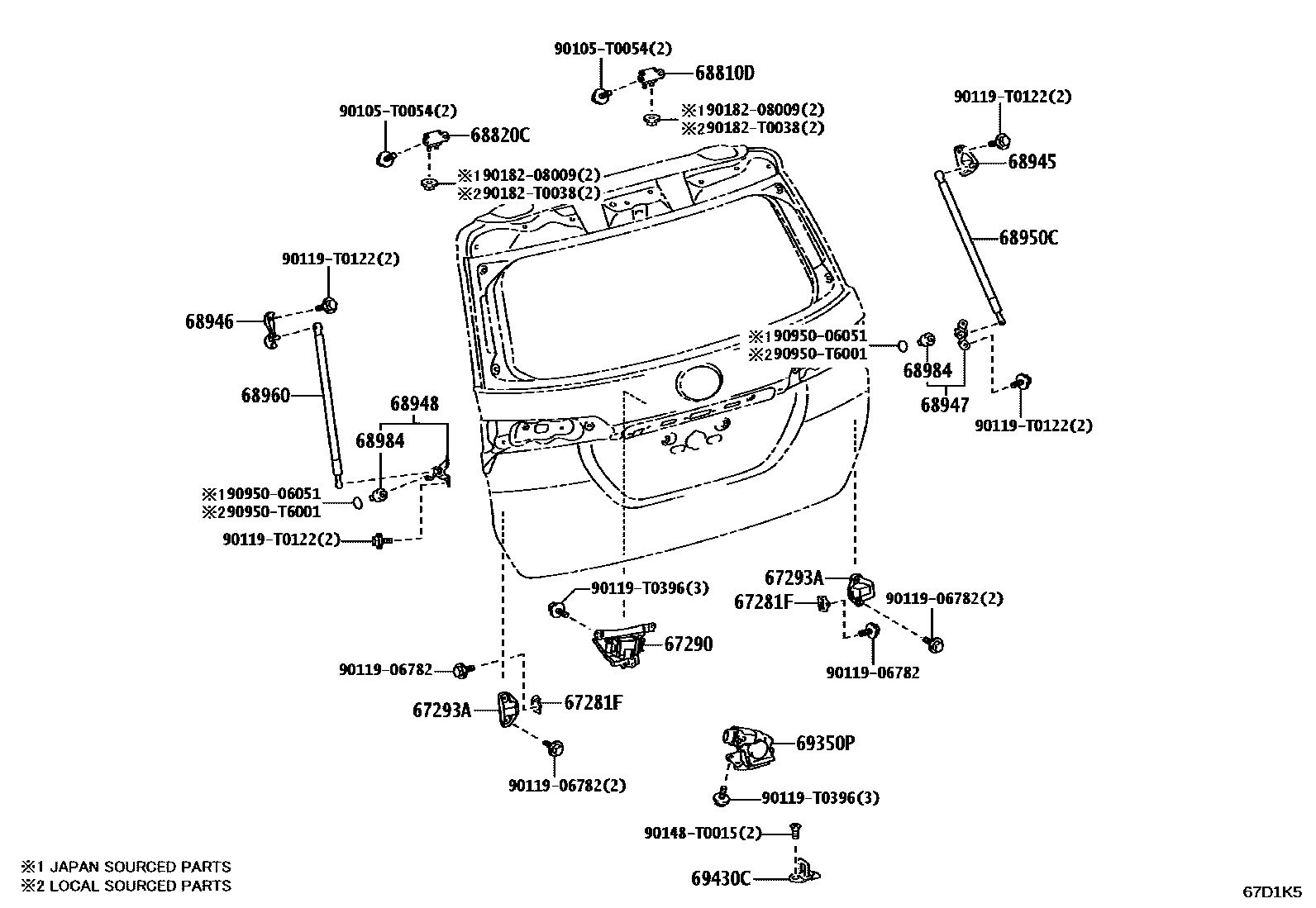

Toyota FORTUNER (SUV) — BACK DOOR LOCK & HINGE

0001 1W/O(POWER BACK DOOR) 0002 1

67281FSTOPPER, BACK DOOR, LOWER

main67281-0K020iGUN156,TGN156202408

67290DAMPER ASSY, BACK DOOR

main67290-0K030iGUN156,TGN156202408

67293ACUSHION, BACK DOOR STOPPER

main67293-0K020iGUN156,TGN156202408

68810DHINGE ASSY, BACK DOOR, RH

main68810-0K070iGUN156,TGN156202408

68820CHINGE ASSY, BACK DOOR, LH

main68810-0K070iGUN156,TGN156202408

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-0K011iGUN156..H202408

main68945-0K020iGUN156,TGN156..L,S202408

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-0K011iGUN156..H202408

main68946-0K020iGUN156,TGN156..L,S202408

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-0K010iGUN156,TGN156202408

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-0K010iGUN156,TGN156202408

68950CSTAY ASSY, BACK DOOR, RH

main68950-0K381iGUN156,TGN156..L,S202408

68960STAY ASSY, BACK DOOR, LH

main68960-0K381iGUN156,TGN156..L,S202408

68984STOPPER, BACK DOOR STAY

main68984-42010iGUN156,TGN156¥160202408

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-0K190iGUN156,TGN156..L,S202408

main69350-0K290iGUN156..H202408

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-0K070iGUN156,TGN156202408

90105T0054

main90105-T0054

9011906782

main90119-06782¥60

90119T0122

main90119-T0122

90119T0396

main90119-T0396

90148T0015

main90148-T0015

9018208009

main90182-08009¥100

90182T0038

main90182-T0038

9095006051

main90950-06051¥130

90950T6001

main90950-T6001

23 parts on this diagram · 2 diagrams in section
