Toyota ETIOS — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 1/2 0005 1ENGINE ROOM 2/2 0006 1ENGINE ROOM 2/2 0007 1COWL 0008 1COWL 0009 1INSTRUMENT PANEL 0010 1STEERING 0011 1STEERING 0012 1DOOR, ROOF, FLOOR & BACK DOOR0013 1DOOR, ROOF, FLOOR & LUGGAGE

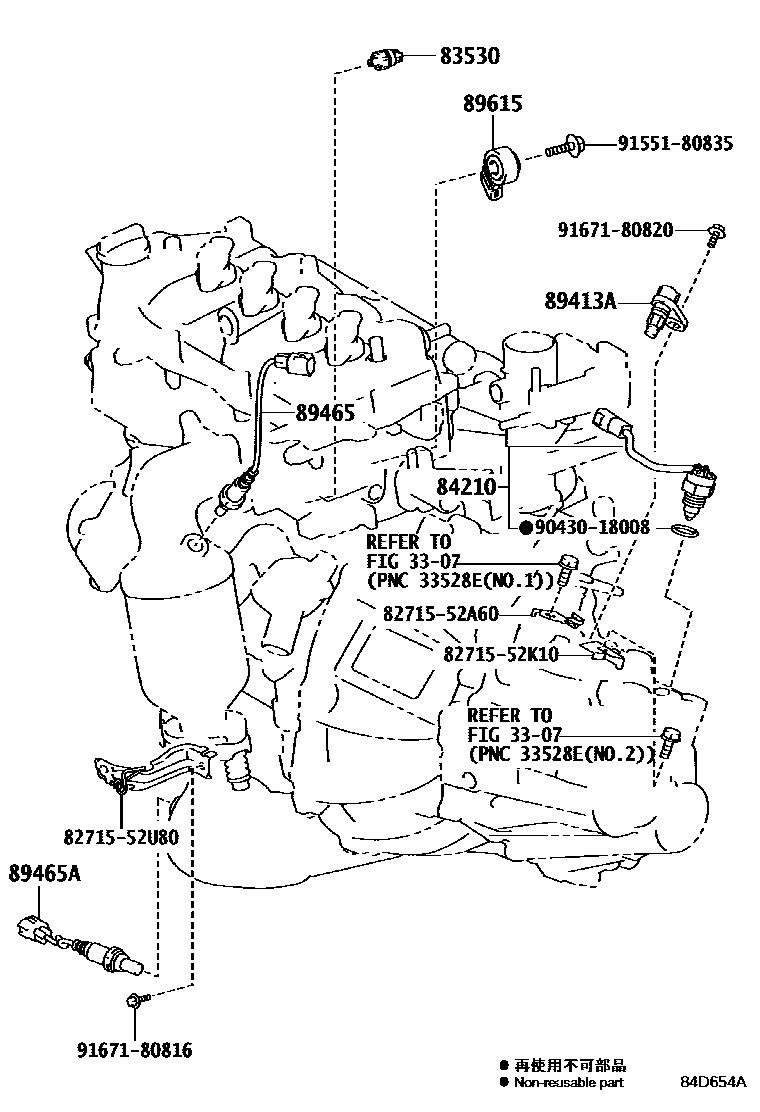

3307

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ¥1,970201209-202103

DENSO

main83530-28020iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)¥1,970201209

DENSO

main83530-60020iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ¥1,970201209-202103

YAZAKI

main83530-60020iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)¥1,970201209

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-52030iNGK1#201209-201604

sub84210-K0010

main84210-52050iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ¥1,360201604-202103

main84210-52050iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)¥1,360201604

89413ASENSOR, TRANSMISSION REVOLUTION

main89413-52070iNGK11..STD201209-201310

89465SENSOR, OXYGEN

main89465-52570iNGK1#¥9,400201209-201604

main89465-52740iNGK11..6F;NGK15..BZ;NGK12..XS..BZ¥6,500201604-202103

main89465-52740iNGK11..4FC;NGK15..AGT;NGK12..XS..AGT;NGK12..CROSS,X,XLS¥6,500201604

89465ASENSOR, OXYGEN NO.2

main89465-52580iNGK1#201209-201604

89615SENSOR, KNOCK CONTROL

main89615-20090iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ¥2,370201209-202103

main89615-20090iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)¥2,370201209

8271552A60BRACKET,WIRING HARNESS CLAMP

main82715-52A60¥300

8271552K10BRACKET,WIRING HARNESS CLAMP

main82715-52K10

8271552U80BRACKET,WIRING HARNESS CLAMP

main82715-52U80

9043018008

main90430-18008¥110

9155180835

main91551-80835¥80

9167180816

main91671-80816¥80

9167180820

main91671-80820¥80

14 parts on this diagram · 13 diagrams in section
