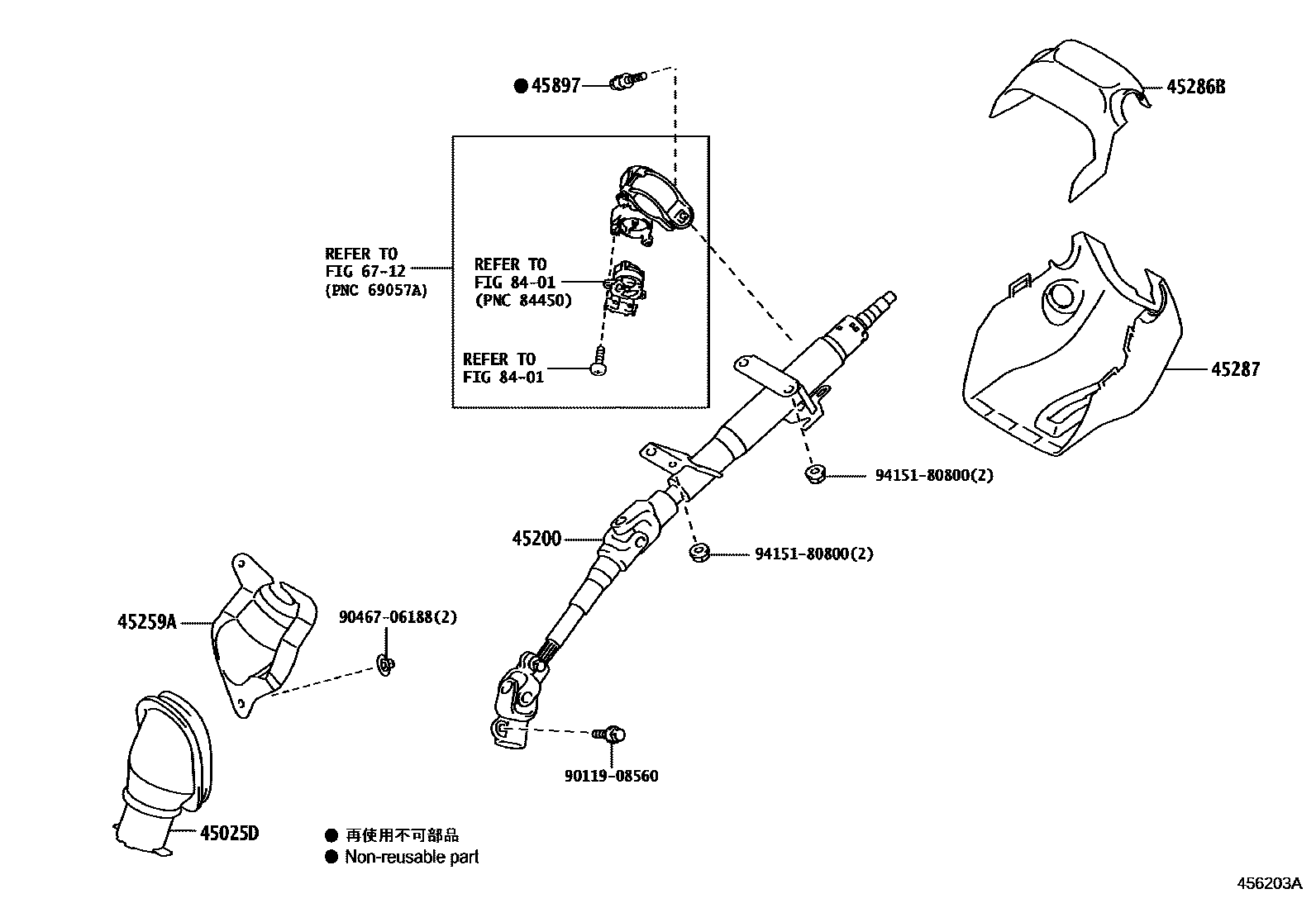

Toyota ETIOS — STEERING COLUMN & SHAFT

0001 1 0002 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0D160iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201209-202103

45200POST ASSY, STEERING

main45200-0D240iNGK11..STD201209-201310

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-0D110iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

45286BCOVER, STEERING COLUMN, UPR

main45286-0D130-C0iNGK12..CROSS..AGT;NGK12..(CROSS,XS)..BZ201309-201408

BLACK,TRIM2#

sub45286-0D250

main45286-0D130-C0iNGK11,15;NGK12..X,XLS;NGK12..XS..AGT201209-201408

BLACK,TRIM1#,2#

sub45286-0D250

main45286-0D250-C0iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201409-202103

BLACK,TRIM2#

45287COVER, STEERING COLUMN, LWR

main45287-0D110-C0iNGK11,15;NGK12..X,XLS;NGK12..XS..AGT201209-201408

BLACK,TRIM1#,2#

sub45287-0D210

main45287-0D110-C0iNGK12..CROSS..AGT;NGK12..(CROSS,XS)..BZ201309-201408

BLACK,TRIM2#

sub45287-0D210

main45287-0D210-C0iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201409-202103

BLACK,TRIM2#

45897BOLT, STEERING LOCK SET

main45897-12020iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ¥210201209-202103

6712

8401

9011908560

main90119-08560¥110

9046706188

main90467-06188¥160

9415180800

main94151-80800¥80

11 parts on this diagram · 2 diagrams in section
