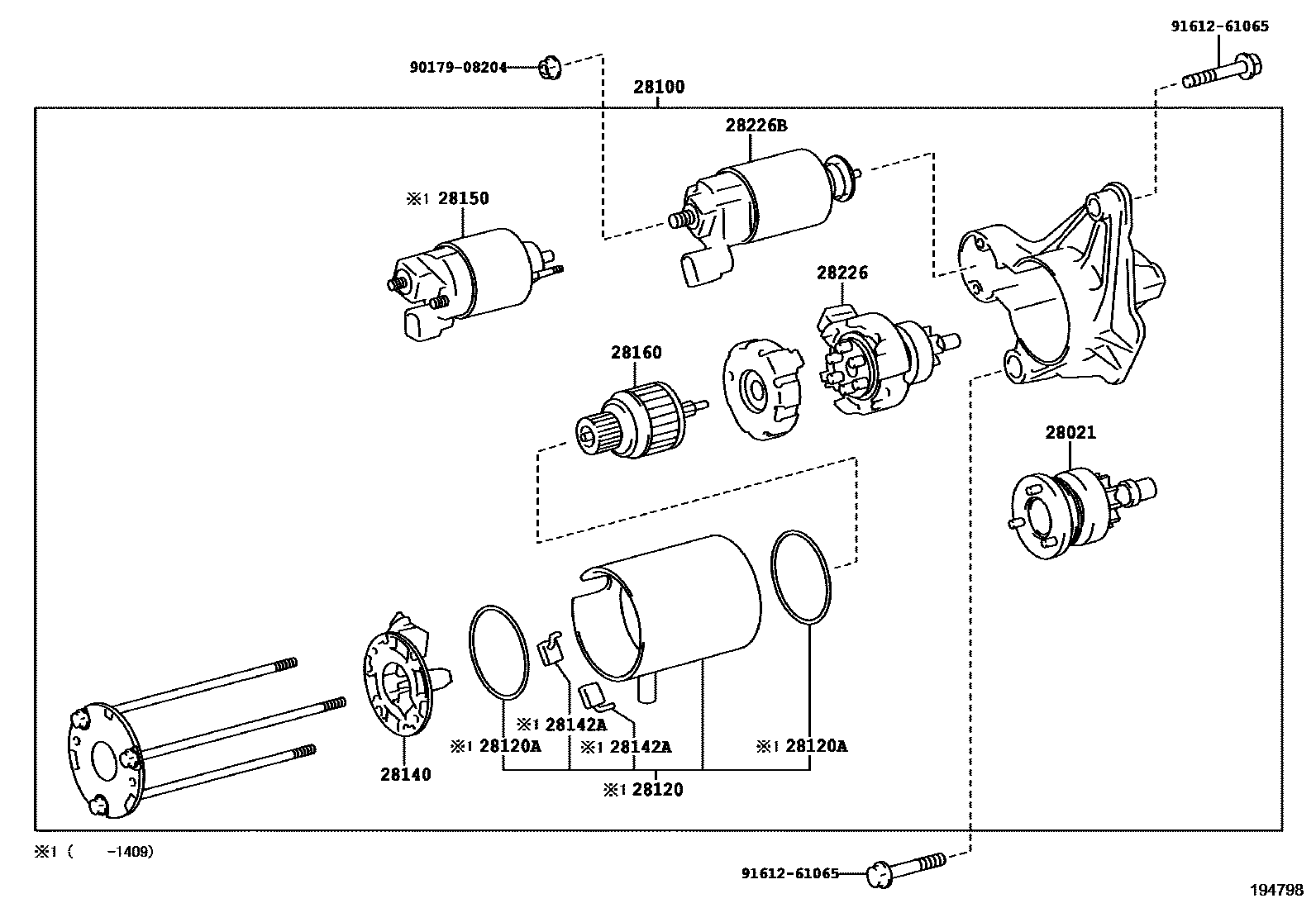

Toyota ETIOS — STARTER

0001 112V 1.0KW,1.2KW 0002 112V 1.0KW,1.2KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-0Y210i1NRFBE,2NR#..NGK1#201409-201604

main28021-0Y310i2NRFBE..NGK15;2NRFBE..NGK12..XS;1NRFBE..NGK11..6F201701-202103

main28021-0Y310i2NRFE..NGK12,15;1NRFBE..NGK11..4FC;2NRFBE..NGK12..CROSS,XLS201701

main28021-70020i1NRFBE,2NR#..NGK1#¥3,820201209-201409

28100STARTER ASSY

main28100-0Y070i1NRFBE,2NRFBE..NGK1#201209-201409

12V 1.2KW

main28100-0Y080i2NRFE..NGK12,15201309-201409

12V 1.0KW

main28100-0Y210i2NRFE..NGK12,15201409-201604

12V 1.0KW

main28100-0Y220i1NRFBE,2NRFBE..NGK1#201409-201604

12V 1.2KW

main28100-0Y310i1NRFBE..NGK11..4FC;2NRFBE..NGK12..XLS201901

12V 1.0KW

main28100-0Y310i2NRFBE..NGK15;2NRFBE..NGK12..XS;1NRFBE..NGK11..6F201901-202103

12V 1.0KW

main28100-0Y310i2NRFE..NGK12,15201604

12V 1.0KW

main28100-0Y320i1NRFBE,2NRFBE..NGK1#201604-201901

12V 1.2KW

28120YOKE ASSY, STARTER

main28120-40130i2NRFE..NGK12,15201309-201409

main28120-40140i1NRFBE,2NRFBE..NGK1#201209-201409

28120ARING, O(FOR STARTER YOKE)

main90099-14092i1NRFBE,2NR#..NGK1#201209-201409

28140HOLDER ASSY, STARTER BRUSH

main28140-0Y210i1NRFBE..NGK11..6F;2NRFBE..NGK15..4FC,6F;2NRFBE..NGK12..(4FC,6F)..XS201409-202103

main28140-0Y210i2NRFE..NGK12,15;2NRFBE..NGK12,15..5F;1NRFBE..NGK11..4FC,5F;2NRFBE..NGK12..(4FC,6F)..(CROSS,XLS)201409

main28140-70020i1NRFBE,2NR#..NGK1#201209-201409

28142ASTARTER KIT

main28142-70020i1NRFBE,2NR#..NGK1#¥260201209-201409

28150SWITCH ASSY, MAGNET STARTER

main28150-21020i1NRFBE,2NR#..NGK1#¥9,400201209-201409

28160ARMATURE ASSY, STARTER

main28160-0Y210i2NRFE..NGK12,15201409-201604

main28160-0Y220i1NRFBE,2NRFBE..NGK1#201409-201604

main28160-0Y310i2NRFBE..NGK15;2NRFBE..NGK12..XS;1NRFBE..NGK11..6F201901-202103

main28160-0Y310i2NRFE..NGK12,15201604

main28160-0Y310i1NRFBE..NGK11..4FC;2NRFBE..NGK12..XLS201901

main28160-0Y320i1NRFBE,2NRFBE..NGK1#201604-201901

main28160-70050i1NRFBE,2NR#..NGK1#¥12,000201209-201409

28226STARTER KIT, BATTERY TERMINAL

main28226-0Y210i1NRFBE,2NR#..NGK1#201604-201701

sub28021-0Y210

sub28021-0Y310

28226BSTARTER KIT, REPAIR SERVICE

main28226-0Y221i1NRFBE,2NR#..NGK1#201409-201604

main28226-0Y310i2NRFBE..NGK15;2NRFBE..NGK12..XS;1NRFBE..NGK11..6F201604-202103

main28226-0Y310i2NRFE..NGK12,15;1NRFBE..NGK11..4FC;2NRFBE..NGK12..CROSS,XLS201604

9017908204

main90179-08204¥140

9161261065

main91612-61065¥160

12 parts on this diagram · 2 diagrams in section
