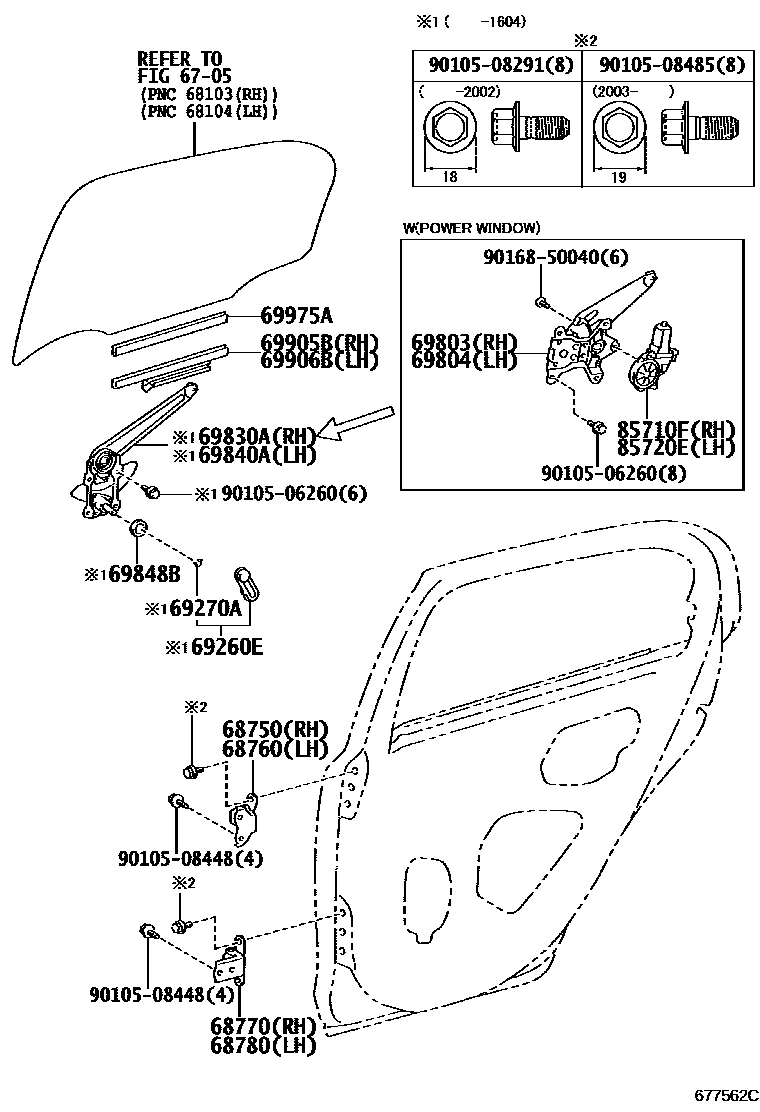

Toyota ETIOS — REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0D050iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0D050iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-0D050iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-0D050iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-0D030-B0iNGK11,15..STD,X201209-201309

GRAY,TRIM1#

main69260-0D030-B0iNGK11,15..STD,X201209-201309

W(*ERCDM),GRAY,TRIM1#

main69260-0D030-C0iNGK1#..STD,X201309-201604

BLACK,TRIM2#

main69260-0D030-C0iNGK1#..STD,X201309-201604

W(*ERCDM),BLACK,TRIM2#

69270ASPRING(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90524-15006iNGK1#..STD,X¥80201209-201604

W(*ERCDM)

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-0D130iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-0D130iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-0D200iNGK1#..STD,X201209-201604

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-0D200iNGK1#..STD,X201209-201604

69848BSEAL, WINDOW REGULATOR HOLE(FOR REAR DOOR)

main69848-0D010iNGK1#..STD,X201209-201604

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-0D060iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-0D100iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-0D100iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-0D130iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-0D170iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

9010506260

main90105-06260¥60

9010508291

main90105-08291¥90

9010508448

main90105-08448¥80

9010508485

main90105-08485¥80

9016850040

main90168-50040¥70

22 parts on this diagram · 1 diagram in section
