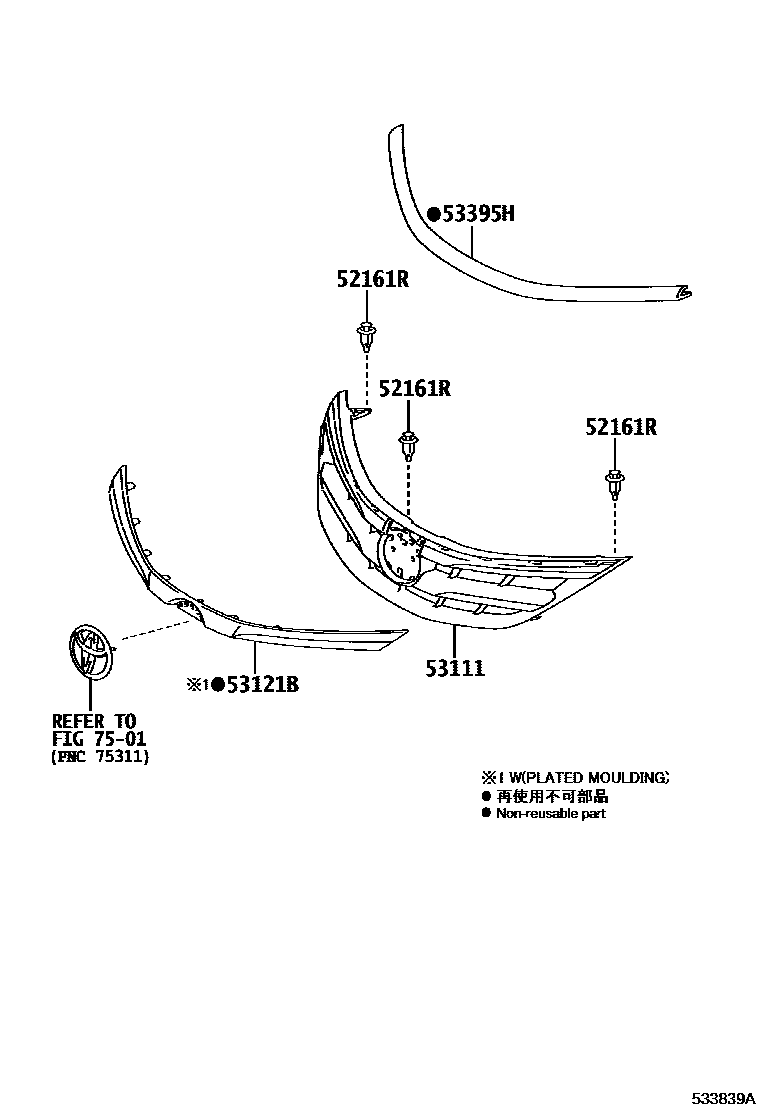

Toyota ETIOS — RADIATOR GRILLE

0001 1 0002 1

52161RPIECE, FRONT BUMPER

main52161-16010iNGK1#..STD,X,XLS,XS¥120201209

sub52161-0K040¥120

53111GRILLE, RADIATOR

main53111-0D730iNGK11..STD201209-201310

NO PAINT REQ.

main53111-0D907iNGK1#..X,XS201209

main53111-0D908iNGK12,15..XLS201209

53121BMOULDING, RADIATOR GRILLE, UPPER

main53121-0D050iNGK12,15..XLS201209

53395HSEAL, HOOD TO RADIATOR GRILLE

main53395-0D060iNGK1#..X,XLS,XS201412

main53395-52070iNGK1#..STD,X,XLS,XS201209-201411

sub53395-0D060

7501

5 parts on this diagram · 2 diagrams in section
