Toyota ETIOS — PARTIAL ENGINE ASSEMBLY

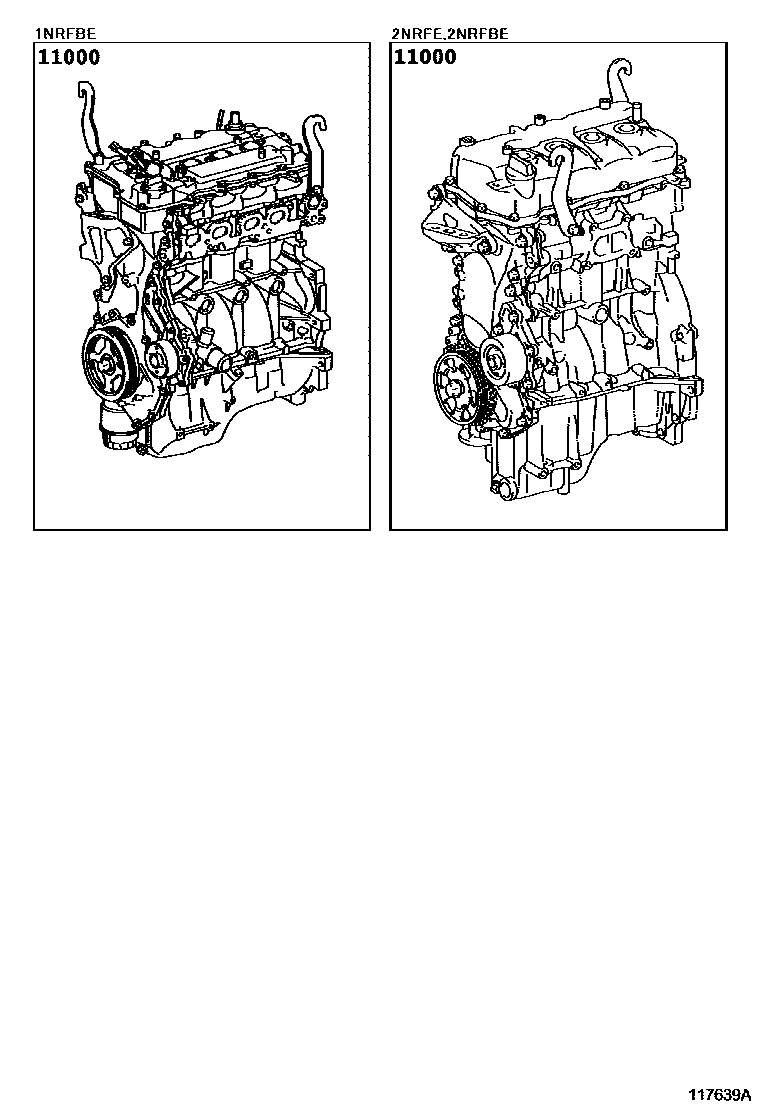

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-0Y150i201604
main19000-0Y160i201604-201903
sub19000-0Y161
main19000-0Y161i201903
main19000-0Y161i201903-202103
main19000-0Y170i201604
main19000-0Y170i201604-202103
main19000-47140i201309-201505
sub19000-47141
main19000-47141i201505-201604
main19000-47230i201209-201505
sub19000-47231
main19000-47231i201505-201604
main19000-47240i201209-201505
sub19000-47241
main19000-47241i201505-201604

1 parts on this diagram · 1 diagram in section
