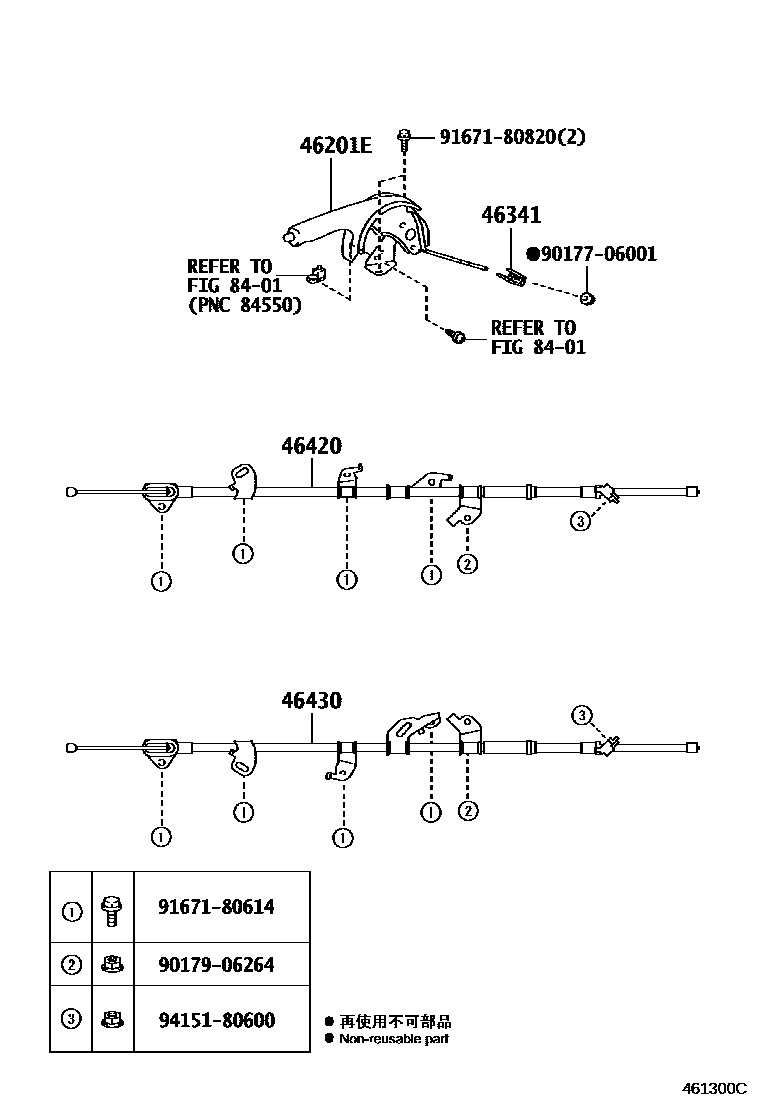

Toyota ETIOS — PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0D200-C0iNGK11..4FC;NGK12..5F..CROSS..AGT;NGK12..5F..(CROSS,XS)..BZ;NGK12,15..6F..(X,XS)..AGT201309-202103

BLACK,TRIM2#

main46201-0D200-C0iNGK11,15;NGK12..X,XLS;NGK12..XS..AGT201209-201604

BLACK,TRIM1#,2#

main46201-0D480-C0iNGK15..XLS..AGT;NGK12..CROSS,XLS201604-202103

BLACK,TRIM2#

46341EQUALIZER, PARKING BRAKE

main46341-0D050iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201209-202103

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0D161iNGK11..6F;NGK12..(4FC,6F)..XS..BZ201209-202103

main46420-0D171iNGK15..5F;NGK15..(4FC,6F)..AGT201209-202103

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0D161iNGK11..6F;NGK12..(4FC,6F)..XS..BZ201209-202103

main46430-0D171iNGK15..5F;NGK15..(4FC,6F)..AGT201209-202103

8401

9017706001

main90177-06001¥60

9017906264

main90179-06264¥100

9167180614

main91671-80614¥60

9167180820

main91671-80820¥80

9415180600

main94151-80600¥60

10 parts on this diagram · 1 diagram in section
