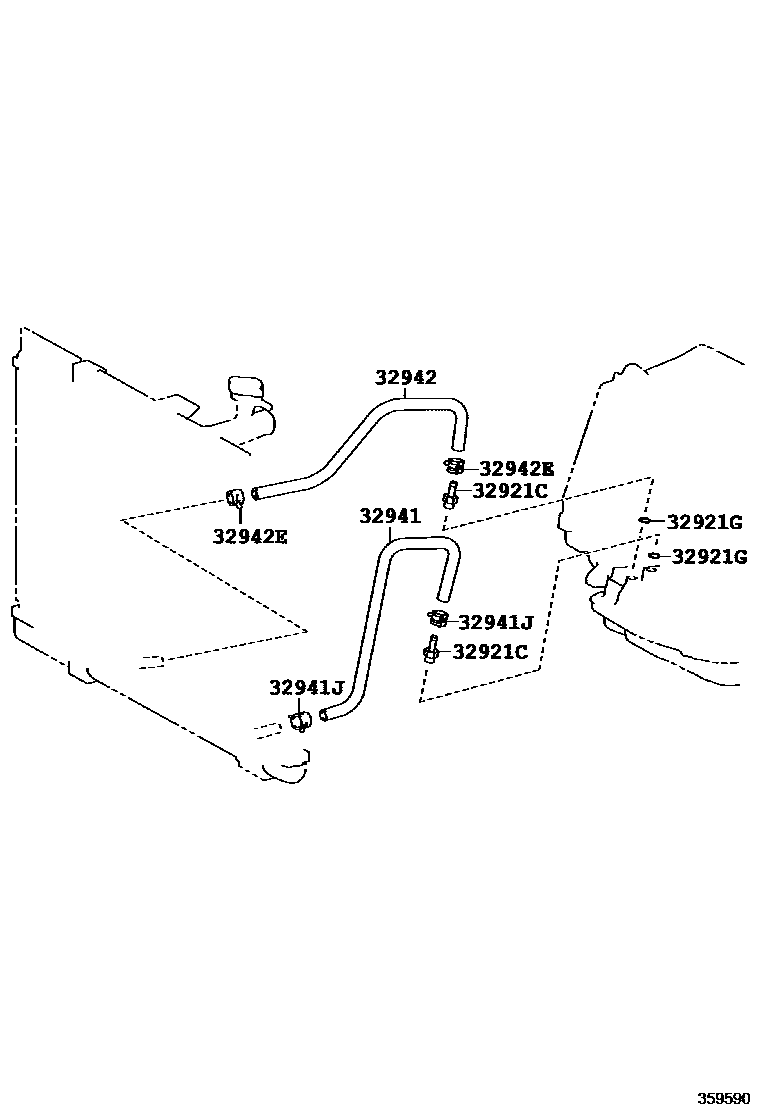

Toyota ETIOS — OIL COOLER & TUBE (ATM)

32921CUNION(FOR OIL COOLER TUBE)

main90404-13008iNGK12..4FC..XS;NGK15..4FC..BZ201604-202103

main90404-13008iNGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS)201604

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-08015iNGK11..4FC¥140202104

main90301-10189iNGK12..4FC..XLS;NGK15..4FC..AGT¥170202104

main90301-C0044iNGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS)201604-202104

main90301-C0044iNGK12..4FC..XS;NGK15..4FC..BZ201604-202103

32941HOSE, OIL COOLER INLET, NO.1

main32941-52030iNGK12..4FC..CROSS201604-201712

main32941-52030iNGK12..4FC..XS;NGK15..4FC..BZ201604-202103

main32941-52030iNGK15..4FC..AGT;NGK11,12..4FC..(X,XLS)201604

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main96137-41501iNGK12..4FC..CROSS¥120201604-201712

main96137-41501iNGK12..4FC..XS;NGK15..4FC..BZ¥120201604-202103

main96137-41501iNGK15..4FC..AGT;NGK11,12..4FC..(X,XLS)¥120201604

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-52030iNGK12..4FC..CROSS201604-201712

main32942-52030iNGK12..4FC..XS;NGK15..4FC..BZ201604-202103

main32942-52030iNGK15..4FC..AGT;NGK11,12..4FC..(X,XLS)201604

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main96137-41501iNGK12..4FC..CROSS¥120201604-201712

main96137-41501iNGK12..4FC..XS;NGK15..4FC..BZ¥120201604-202103

main96137-41501iNGK15..4FC..AGT;NGK11,12..4FC..(X,XLS)¥120201604

6 parts on this diagram · 1 diagram in section
