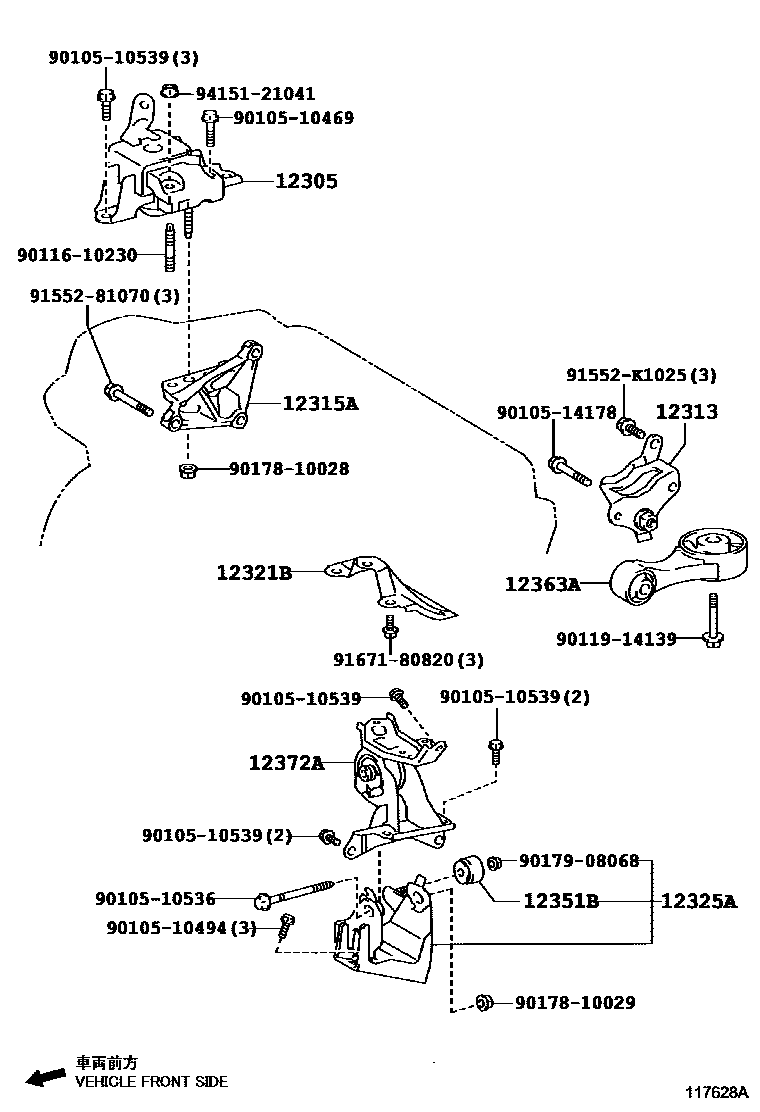

Toyota ETIOS — MOUNTING

0001 1 0002 1 0003 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-0Y040i1NRFBE,2NR#..NGK1#..STD,X,XLS,XS201209-201604

main12305-0Y040i2NR#..NGK12..CROSS201311-201604

main12305-0Y170i2NRFBE..NGK15;2NRFBE..NGK12..XS;1NRFBE..NGK11..6F201604-202103

main12305-0Y170i2NRFE..NGK12,15;1NRFBE..NGK11..4FC;2NRFBE..NGK12..CROSS,XLS201604

12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)

main12313-0Y030i1NRFBE,2NR#..NGK1#..STD,X,XLS,XS201209-201604

main12313-0Y030i2NR#..NGK12..CROSS201311-201604

main12313-0Y090i2NRFBE..NGK12..6F..XS;1NRFBE,2NRFBE..NGK11,15..6F201604-202103

main12313-0Y090i2NRFE..NGK12,15..6F;2NRFBE..NGK12..6F..(CROSS,XLS)201604

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-0Y060i1NRFBE,2NR#..NGK1#..X,XLS,XS201604

main12315-0Y060i2NR#..NGK12..CROSS201604-201802

main12315-47060i1NRFBE,2NR#..NGK1#201209-201604

12321BINSULATOR SUB-ASSY, DRIVE SHAFT HEAT

main43498-0D060i1NRFBE,2NR#..NGK1#201209-201604

main43498-0D110i2NRFBE..NGK15;2NRFBE..NGK12..XS;1NRFBE..NGK11..6F201604-202103

main43498-0D110i2NRFE..NGK12,15;1NRFBE..NGK11..4FC;2NRFBE..NGK12..CROSS,XLS201604

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12304-0Y070i2NR#..NGK12..CROSS201311-201604

main12304-0Y070i1NRFBE,2NR#..NGK1#..STD,X,XLS,XS201209-201604

main12304-0Y150i1NRFBE,2NR#..NGK1#..6F201604-201803

main12304-0Y200i2NRFBE..NGK12..6F..XS;1NRFBE,2NRFBE..NGK11,15..6F201803-202103

main12304-0Y200i2NRFE..NGK12,15..6F;2NRFBE..NGK12..6F..XLS201803

main12325-0Y240i2NRFBE..NGK15..4FC;2NRFBE..NGK12..4FC..XS201604-202103

main12325-0Y240i1NRFBE,2NRFE..NGK1#..4FC;2NRFBE..NGK12..4FC..(CROSS,XLS)201604

12351BDAMPER, ENGINE MOUNTING

main12351-27010i1NRFBE,2NRFBE..NGK1#¥4,320201209-201306

main12351-47020i1NRFBE,2NR#..NGK1#..6F¥2,750201604-201803

main12351-47040i1NRFBE,2NR#..NGK1#..STD,X,XLS,XS201307-201604

main12351-47040i2NR#..NGK12..CROSS201311-201604

main12351-47060i2NRFE..NGK12,15..6F;2NRFBE..NGK12..6F..XLS201803

main12351-47060i2NRFBE..NGK12..6F..XS;1NRFBE,2NRFBE..NGK11,15..6F201803-202103

12363AROD, ENGINE MOVING CONTROL

main12363-0Y030i1NRFBE,2NR#..NGK1#..STD,X,XLS,XS201209-201604

sub12363-0Y021

main12363-0Y030i2NR#..NGK12..CROSS201311-201604

sub12363-0Y021

main12363-0Y160i2NRFBE..NGK12..6F..XS;1NRFBE,2NRFBE..NGK11,15..6F201604-202103

main12363-0Y160i2NRFE..NGK12,15..6F;2NRFBE..NGK12..6F..(CROSS,XLS)201604

main12363-0Y170i1NRFBE,2NRFE..NGK1#..4FC;2NRFBE..NGK12..4FC..(CROSS,XLS)201604

main12363-0Y170i2NRFBE..NGK15..4FC;2NRFBE..NGK12..4FC..XS201604-202103

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0Y040i1NRFBE,2NR#..NGK1#..STD,X,XLS,XS201209-201409

sub12372-0Y041

main12372-0Y040i2NR#..NGK12..CROSS201311-201409

sub12372-0Y041

main12372-0Y041i1NRFBE,2NR#..NGK1#201410-201604

sub12372-0Y033

main12372-0Y200i2NRFBE..NGK12..6F..XS;1NRFBE,2NRFBE..NGK11,15..6F201604-202103

main12372-0Y200i2NRFE..NGK12,15..6F;2NRFBE..NGK12..6F..(CROSS,XLS)201604

main12372-0Y210i2NRFBE..NGK15..4FC;2NRFBE..NGK12..4FC..XS201604-202103

main12372-0Y210i1NRFBE,2NRFE..NGK1#..4FC;2NRFBE..NGK12..4FC..(CROSS,XLS)201604

9010510469

main90105-10469¥120

9010510494

main90105-10494¥100

9010510536

main90105-10536¥330

9010510539

main90105-10539¥100

9010514178

main90105-14178¥310

9011610230

main90116-10230¥190

9011914139

main90119-14139¥360

9017810028

main90178-10028¥120

9017810029

main90178-10029¥100

9017908068

main90179-08068¥100

9155281070

main91552-81070¥160

91552K1025

main91552-K1025¥100

9167180820

main91671-80820¥80

9415121041

main94151-21041¥100

22 parts on this diagram · 3 diagrams in section
