Toyota ETIOS — METER

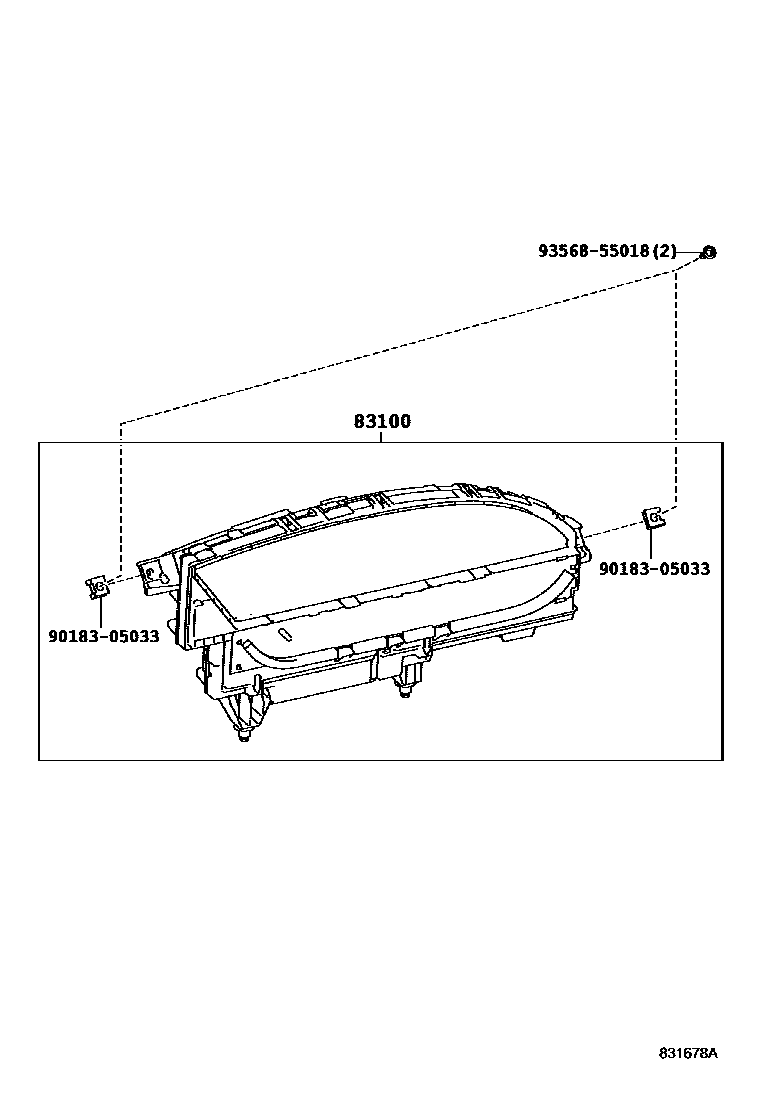

83100METER ASSY, COMBINATION

main83800-0DN40iNGK11,15..XLS,XS201209-201309

main83800-0DN50iNGK1#..X201209-201409

main83800-0DY80iNGK12..CROSS,XLS201309-201409

main83800-0DY90iNGK12201209-201309

main83800-0DZ00iNGK11..STD201209-201310

main83800-0U770iNGK15..X..BZ201309-201409

W(*ERCDM)

main83800-0U870iNGK15..XLS,XS201409-201604

W(*ERCDM)

main83800-0U880iNGK11,12..CROSS,XLS,XS201409-201604

main83800-0UA50iNGK1#..X201409-201604

main83800-0UL90iNGK12,15..AGT201604-201803

main83800-0UM10iNGK1#..BZ201604-201803

main83800-F5710iNGK12,15..AGT201803

main83800-F5720iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201803-202103

main83800-F5720iNGK11..4FC;NGK12..XLS..BZ201803

9018305033

main90183-05033¥80

9356855018

main93568-55018¥120

3 parts on this diagram · 1 diagram in section
