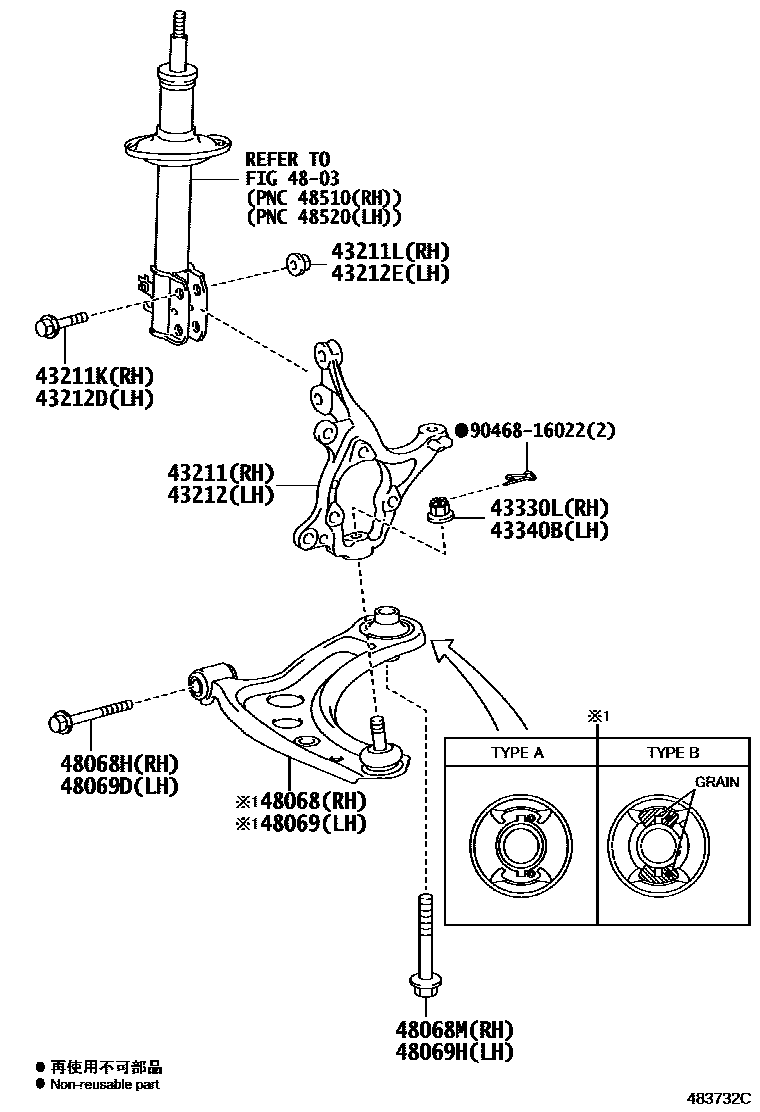

Toyota ETIOS — FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-0D220iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201209-202103

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-14140iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ¥310201209-202103

OD=14

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-14062iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ¥140201209-202103

43212KNUCKLE, STEERING, LH

main43212-0D220iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-14140iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ¥310201209-202103

OD=14

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-14062iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ¥140201209-202103

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-12007iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)¥110201405-202103

(J)

main90171-12007iNGK1#¥110201209-201405

main90171-T0005iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201405-202103

(L)

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-12007iNGK1#¥110201209-201405

main90171-12007iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ¥110201405-202103

(J)

main90171-T0005iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201405-202103

(L)

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-0D130iNGK1#201209-201310

TYPE A:REFER ILLUST.

main48068-0D131iNGK1#201310-201604

TYPE B:REFER ILLUST.

main48068-0D132iNGK1#201604-201805

sub48068-0D133

main48068-0D133iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201806-202103

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14086iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ¥310201209-202103

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14147iNGK1#¥430201209-201710

main90119-14190iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201711-202103

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-0D120iNGK1#201209-201310

TYPE A:REFER ILLUST.

main48069-0D121iNGK1#201310-201604

TYPE B:REFER ILLUST.

main48069-0D122iNGK1#201604-201805

sub48069-0D123

main48069-0D123iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201806-202103

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14086iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ¥310201209-202103

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14147iNGK1#¥430201209-201710

main90119-14190iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201711-202103

9046816022

main90468-16022¥90

16 parts on this diagram · 1 diagram in section
