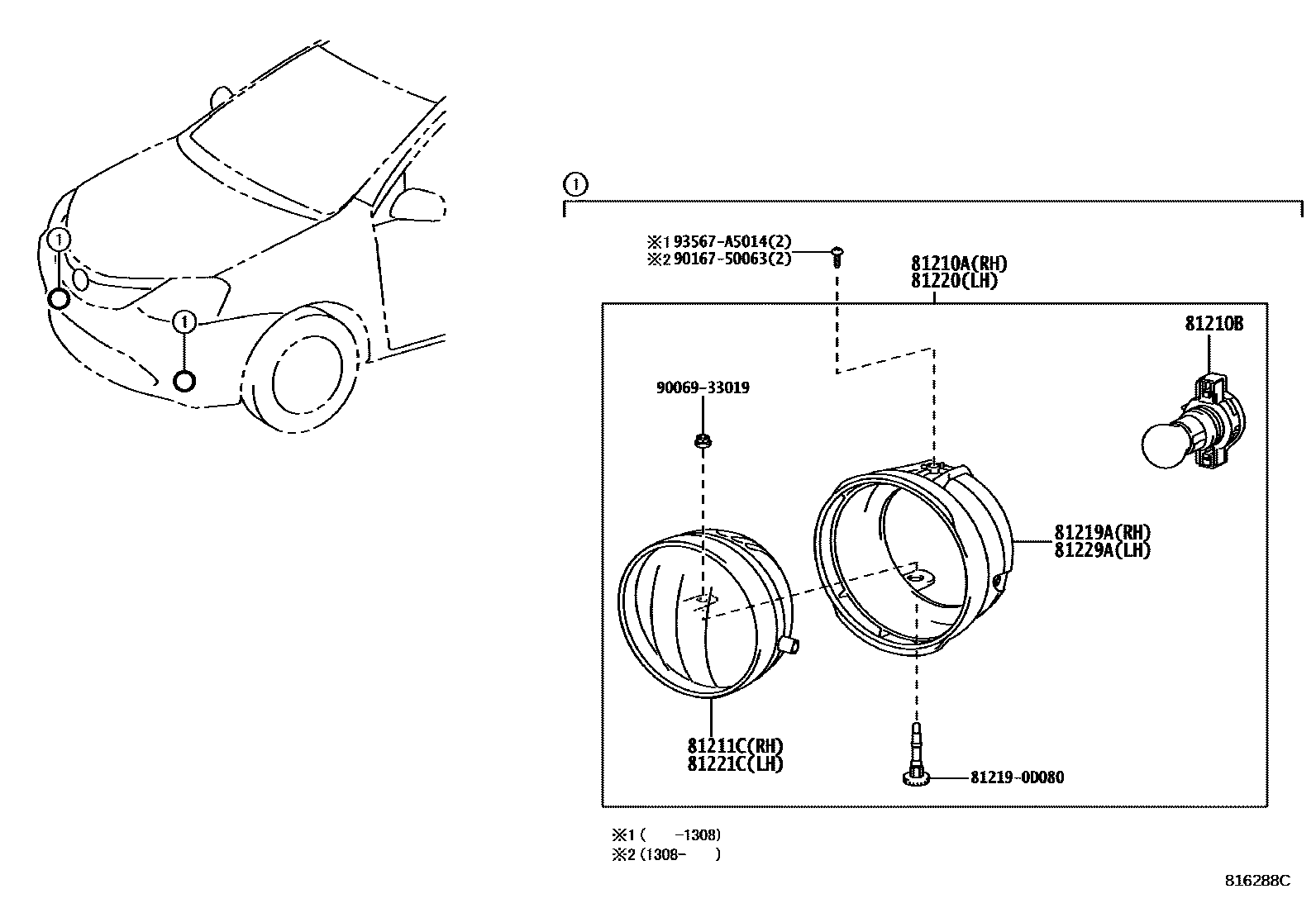

Toyota ETIOS — FOG LAMP

0001 1 0002 1

81210ALAMP ASSY, FOG, RH

main81210-0D080iNGK12,15..CROSS,XLS201209

81210BBULB, FOG LAMP

main90981-WD015iNGK15..(4FC,6F)..XLS..BZ201209-202103

12V 24W

main90981-WD015iNGK15..5F..XLS;NGK12..CROSS,XLS;NGK15..(4FC,6F)..XLS..AGT201209

12V 24W

81211CLAMP UNIT, FOG LAMP, RH

main81211-0D080iNGK15..(4FC,6F)..XLS..BZ201209-202103

main81211-0D080iNGK15..5F..XLS;NGK12..CROSS,XLS;NGK15..(4FC,6F)..XLS..AGT201209

81219ABRACKET, FOG LAMP, RH

main81218-0D080iNGK15..(4FC,6F)..XLS..BZ201209-202103

main81218-0D080iNGK15..5F..XLS;NGK12..CROSS,XLS;NGK15..(4FC,6F)..XLS..AGT201209

81220LAMP ASSY, FOG, LH

main81220-0D080iNGK12,15..CROSS,XLS201209

81221CLAMP UNIT, FOG LAMP, LH

main81221-0D080iNGK15..(4FC,6F)..XLS..BZ201209-202103

main81221-0D080iNGK15..5F..XLS;NGK12..CROSS,XLS;NGK15..(4FC,6F)..XLS..AGT201209

81229ABRACKET, FOG LAMP, LH

main81229-0D080iNGK15..(4FC,6F)..XLS..BZ201209-202103

main81229-0D080iNGK15..5F..XLS;NGK12..CROSS,XLS;NGK15..(4FC,6F)..XLS..AGT201209

812190D080BOLT, FOG LAMP

main81219-0D080

9006933019

main90069-33019

9016750063

main90167-50063¥60

93567A5014

main93567-A5014¥80

11 parts on this diagram · 2 diagrams in section
