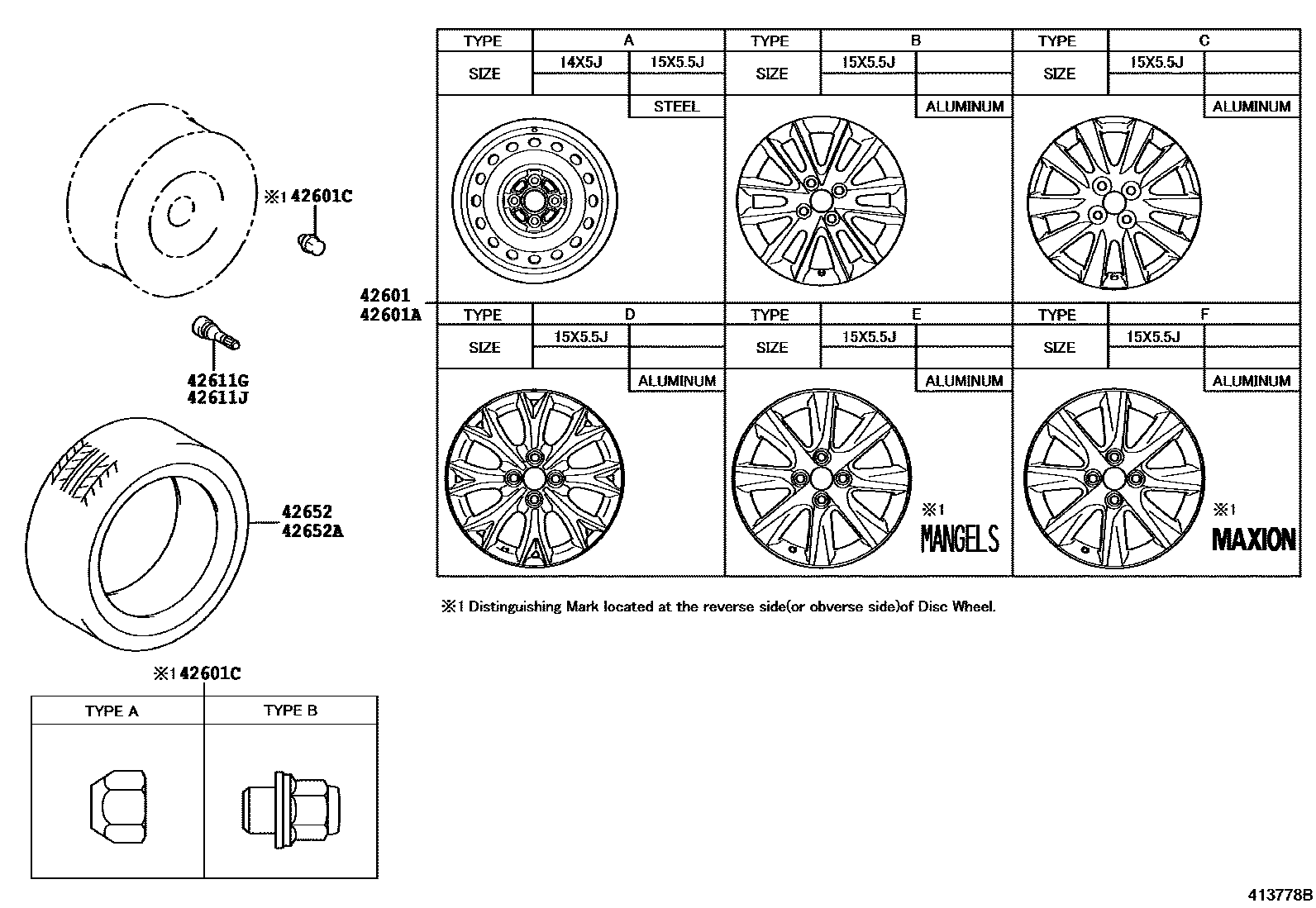

Toyota ETIOS — DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-0D450iNGK1#..STD,X,XS201209-201411

14X5J,#,TYPE A:REFER ILLUST.

sub42611-0D451

main42611-0D451iNGK11..6F;NGK12,15..(4FC,6F)..(X,XS)..BZ201412-202103

14X5J,#,TYPE A:REFER ILLUST.

main42611-0D451iNGK11..4FC,5F;NGK12,15..5F..(X,XS);NGK12,15..6F..(X,XS)..AGT201412

14X5J,#,TYPE A:REFER ILLUST.

main42611-0D540iNGK12,15..XLS201209-201411

15X5.5J,#,TYPE B:REFER ILLUST.

sub42611-0D541

main42611-0D541iNGK12,15..XLS201412-201604

15X5.5J,#,TYPE B:REFER ILLUST.

main42611-0D720iNGK12..CROSS201604-201802

15X5.5J,#,TYPE D:REFER ILLUST.

main42611-0DB40iNGK12..CROSS201311-201412

15X5.5J,#,TYPE C:REFER ILLUST.

sub42611-0DB41

main42611-0DB41iNGK12..CROSS201412-201604

15X5.5J,#,TYPE C:REFER ILLUST.

main42611-0DE30iNGK15..XLS..BZ201604-202103

15X5.5J,#,TIRE & DISC WHEEL-185/60R15 AL ROUGH NEW,TYPE E:REFER ILLUST.

main42611-0DE30iNGK12..XLS;NGK15..XLS..AGT201604

15X5.5J,#,TIRE & DISC WHEEL-185/60R15 AL ROUGH NEW,TYPE E:REFER ILLUST.

main42611-0DE30iNGK12,15..XS..AGT201604

15X5.5J,#,TYPE E:REFER ILLUST.

main42611-0DE30iNGK15..XLS..BZ201604-202103

15X5.5J,#,TYPE E:REFER ILLUST.

main42611-0DE40iNGK12,15..XS..AGT201604

15X5.5J,#,TYPE F:REFER ILLUST.

main42611-0DE40iNGK15..XLS..BZ201604-202103

15X5.5J,#,TYPE F:REFER ILLUST.

main42611-0DE40iNGK15..XLS..BZ201604-202103

15X5.5J,#,TIRE & DISC WHEEL-185/60R15 AL ROUGH NEW,TYPE F:REFER ILLUST.

main42611-0DE40iNGK12..XLS;NGK15..XLS..AGT201604

15X5.5J,#,TIRE & DISC WHEEL-185/60R15 AL ROUGH NEW,TYPE F:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-0D450iNGK1#..STD,X,XS201209-201411

14X5J,#,TYPE A:REFER ILLUST.

sub42611-0D451

main42611-0D451iNGK11..4FC,5F;NGK12,15..5F..(X,XS);NGK12,15..6F..(X,XS)..AGT201412

14X5J,#,TYPE A:REFER ILLUST.

main42611-0D451iNGK11..6F;NGK12,15..(4FC,6F)..(X,XS)..BZ201412-202103

14X5J,#,TYPE A:REFER ILLUST.

main42611-0D550iNGK12,15..CROSS,XLS201209-201411

15X5.5J,#,TYPE A:REFER ILLUST.

sub42611-0D551

main42611-0D551iNGK12,15..5F..(CROSS,XLS);NGK12,15..(4FC,6F)..(CROSS,XLS)..AGT201412

15X5.5J,#,TYPE A:REFER ILLUST.

main42611-0DB80iNGK12,15..(CROSS,XLS)..BZ201604-201610

14X5J,#,TYPE A:REFER ILLUST.

sub42611-0DB81

main42611-0DB80iNGK12,15..XS..BZ201604-201610

14X5J,#,TIRE & DISC WHEEL-185/60R15 AL ROUGH NEW,TYPE A:REFER ILLUST.

sub42611-0DB81

main42611-0DB81iNGK12,15..XS..BZ201611-202103

14X5J,#,TIRE & DISC WHEEL-185/60R15 AL ROUGH NEW,TYPE A:REFER ILLUST.

main42611-0DB81iNGK15..XLS..BZ201611-202103

14X5J,#,TYPE A:REFER ILLUST.

main42611-0DB81iNGK12..(CROSS,XLS)..BZ201611

14X5J,#,TYPE A:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01007iNGK11..6F;NGK12,15..(4FC,6F)..(X,XS)..BZ¥230201209-202103

TYPE A:REFER ILLUST.

main90942-01007iNGK11..4FC,5F;NGK12,15..5F..(X,XS);NGK12,15..6F..(X,XS)..AGT¥230201209

TYPE A:REFER ILLUST.

main90942-01033iNGK15..(4FC,6F)..XLS..BZ¥430201209-202103

TYPE B:REFER ILLUST.

main90942-01033iNGK15..5F..XLS;NGK12..CROSS,XLS;NGK15..(4FC,6F)..XLS..AGT¥430201209

TYPE B:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90080-94179iNGK1#201209-201511

sub90942-05009¥390

main90942-05009iNGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT¥390201901

(J)

main90942-05009iNGK1#¥390201512-201901

main90942-05009iNGK11..6F;NGK15..BZ;NGK12..XS..BZ¥390201901-202103

(J)

main90942-C5004iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201901-202103

(L)

main90942-C5004iNGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT201901

(L)

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-94179iNGK1#201209-201511

sub90942-05009¥390

main90942-05009iNGK11..6F;NGK15..BZ;NGK12..XS..BZ¥390201901-202103

(J)

main90942-05009iNGK1#¥390201512-201901

main90942-05009iNGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT¥390201901

(J)

main90942-C5004iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201901-202103

(L)

main90942-C5004iNGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT201901

(L)

42652TIRE

main42652-0DC90iNGK1#..STD,X,XS201209-201609

175/65R14,*B/S

sub42652-0DC91

main42652-0DC91iNGK11..4FC;NGK12,15..(X,XS)..AGT201610

175/65R14,*B/S

main42652-0DC91iNGK11..6F;NGK12,15..(X,XS)..BZ201610-202103

175/65R14,*B/S

main42652-0DD00iNGK12,15..CROSS,XLS201209-201609

185/60R15,*B/S

sub42652-0DD01

main42652-0DD01iNGK15..XLS..BZ201610-202103

185/60R15,*B/S

main42652-0DD01iNGK15..XLS..BZ201610-202103

185/60R15,*B/S,TIRE & DISC WHEEL-185/60R15 AL ROUGH NEW

main42652-0DD01iNGK15..XLS..AGT;NGK12..CROSS,XLS201610

185/60R15,*B/S

main42652-0DD01iNGK15..XLS..AGT;NGK12..CROSS,XLS201610

185/60R15,*B/S,TIRE & DISC WHEEL-185/60R15 AL ROUGH NEW

main42652-0DD10iNGK11..4FC,5F;NGK12,15..5F..(X,XS);NGK12,15..6F..(X,XS)..AGT201209

175/65R14,*PIRELLI

main42652-0DD10iNGK11..6F;NGK12,15..(4FC,6F)..(X,XS)..BZ201209-202103

175/65R14,*PIRELLI

main42652-0DD20iNGK15..(4FC,6F)..XLS..BZ201209-202103

185/60R15,*PIRELLI

main42652-0DD20iNGK15..5F..XLS;NGK12..CROSS,XLS;NGK15..(4FC,6F)..XLS..AGT201209

185/60R15,*PIRELLI

42652ATIRE (FOR SPARE)

main42652-0DC90iNGK1#..STD,X,XS201209-201609

175/65R14,*B/S

sub42652-0DC91

main42652-0DC91iNGK11..4FC;NGK12,15..(X,XS)..AGT201610

175/65R14,*B/S

main42652-0DC91iNGK11..6F;NGK12,15..(X,XS)..BZ201610-202103

175/65R14,*B/S

main42652-0DD00iNGK12,15..5F..(CROSS,XLS);NGK12,15..(4FC,6F)..(CROSS,XLS)..AGT201209-201609

185/60R15,*B/S

sub42652-0DD01

main42652-0DD01iNGK12,15..XS..AGT201610

185/60R15,*B/S

main42652-0DD01iNGK12,15..XS..AGT201610

185/60R15,*B/S,TIRE & DISC WHEEL-185/60R15 AL ROUGH NEW

main42652-0DD10iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

175/65R14,*PIRELLI

main42652-0DD10iNGK11..4FC,5F;NGK12,15..5F..(X,XS);NGK12,15..6F..(X,XS)..AGT;NGK12..(4FC,6F)..(CROSS,XLS)..BZ201209

175/65R14,*PIRELLI

main42652-0DD20iNGK12,15..5F..(CROSS,XLS);NGK12,15..(4FC,6F)..(CROSS,XLS)..AGT201209

185/60R15,*PIRELLI

7 parts on this diagram · 3 diagrams in section
