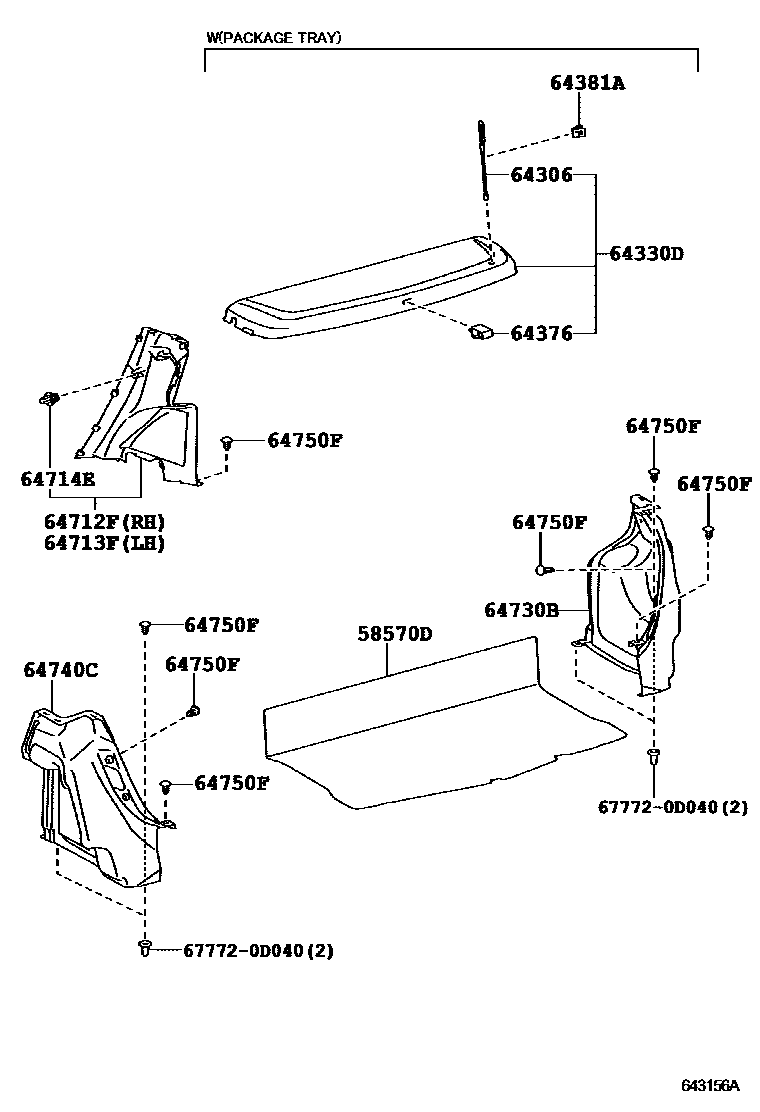

Toyota ETIOS — DECK BOARD & DECK TRIM COVER

0001 1 0002 1

58570DCARPET ASSY, REAR FLOOR

main58570-0D090-C0iNGK11,12..STD,X201209-201604

BLACK,TRIM1#,2#

main58570-0D090-C0iNGK11..6F201604-202103

BLACK,TRIM2#

main58570-0D100-C0iNGK11..XS;NGK12..XLS;NGK12..XS..AGT201209-201604

BLACK,TRIM1#,2#

main58570-0D100-C0iNGK12..(4FC,6F)..XS..BZ201309-202103

BLACK,TRIM2#

64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM

main64306-0D080iNGK11..6F;NGK12..(4FC,6F)..XS..BZ201209-202103

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-0D120-C0iNGK11;NGK12..X,XLS;NGK12..XS..AGT201209-201604

BLACK,TRIM1#,2#

main64330-0D120-C0iNGK11..6F;NGK12..(4FC,6F)..XS..BZ201309-202103

BLACK,TRIM2#

64376SPACER, PACKAGE TRAY TRIM, NO.2

main64376-0D050iNGK11..6F;NGK12..(4FC,6F)..XS..BZ201209-202103

64381AHANGER, PACKAGE TRAY TRIM

main64381-52010iNGK11..6F;NGK12..(4FC,6F)..XS..BZ¥90201209-202103

64712FCOVER, DECK SIDE TRIM, FRONT RH

main64712-0D030-C0iNGK11;NGK12..X,XLS;NGK12..XS..AGT201209-201604

BLACK,TRIM1#,2#

main64712-0D030-C0iNGK11..6F;NGK12..(4FC,6F)..XS..BZ201309-202103

BLACK,TRIM2#

64713FCOVER, DECK SIDE TRIM, FRONT LH

main64713-0D030-C0iNGK11;NGK12..X,XLS;NGK12..XS..AGT201209-201604

BLACK,TRIM1#,2#

main64713-0D030-C0iNGK11..6F;NGK12..(4FC,6F)..XS..BZ201309-202103

BLACK,TRIM2#

64714ECLIP(FOR DECK TRIM SIDE COVER)

main90467-10167iNGK11..6F;NGK12..(4FC,6F)..XS..BZ¥90201209-202103

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-0D220-C0iNGK11,12201209-201305

BLACK,TRIM1#,2#

sub64730-0D221

main64730-0D221-C0iNGK11,12201306-201603

BLACK,TRIM2#

sub64730-0D223

main64730-0D223-C0iNGK11..6F;NGK12..XS..BZ201604-202103

BLACK,TRIM2#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-0D240-C0iNGK11,12201209-201305

BLACK,TRIM1#,2#

sub64740-0D241

main64740-0D241-C0iNGK11,12201306-201603

BLACK,TRIM2#

sub64740-0D242

main64740-0D242-C0iNGK11..6F;NGK12..XS..BZ201604-202103

BLACK,TRIM2#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-08186-C0iNGK12..CROSS,XLS201209-201610

BLACK

sub90467-08186¥120

main90467-08186-C3iNGK11..6F;NGK12..XS..BZ201610-202103

BLACK

sub90467-08186¥120

677720D040WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-0D040

12 parts on this diagram · 2 diagrams in section
