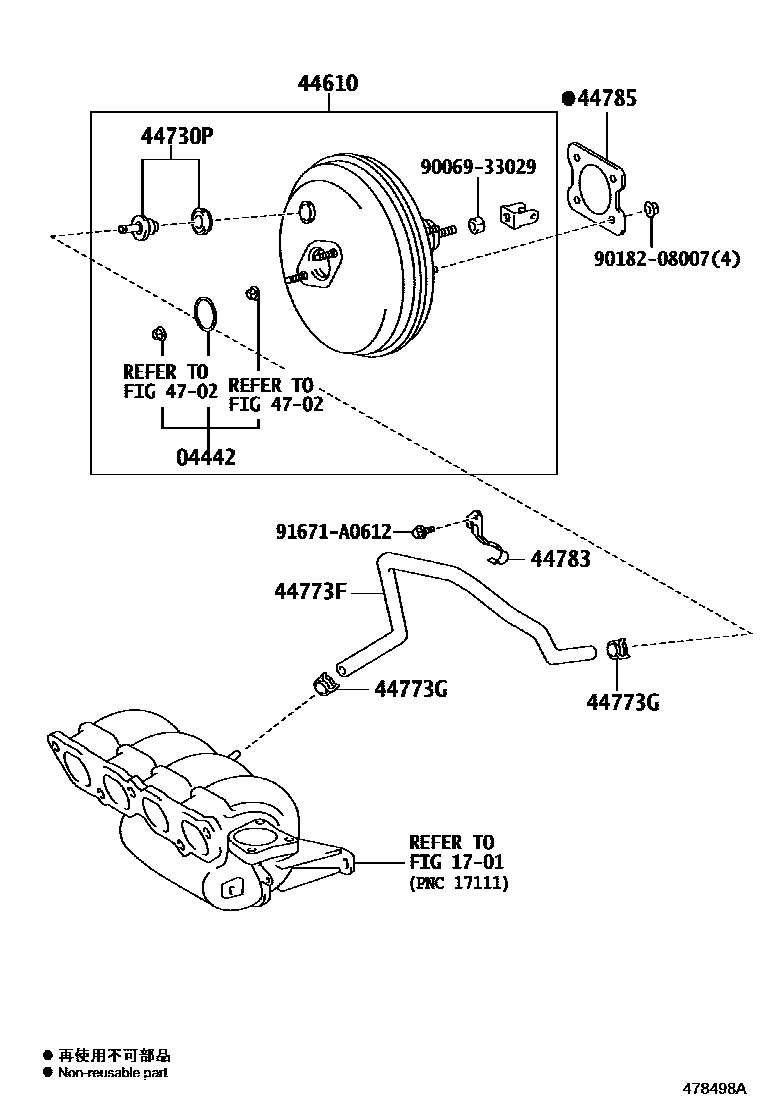

Toyota ETIOS — BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

04442FITTING KIT, BRAKE BOOSTER

main04442-0D030iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

main04442-0D030iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201209-202206

1701

44610BOOSTER ASSY, BRAKE

main44610-09890iNGK1#201209-201604

main44610-09E10iNGK1#..6F201604-202003

main44610-09E20iNGK1#..4FC201604-202003

main44610-09H50iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ202003-202103

sub44610-09J20

main44610-09H50iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(X,XLS)202003-202205

sub44610-09J20

main44610-09H60iNGK12..4FC..XS;NGK15..4FC..BZ202003-202103

sub44610-09J30

main44610-09H60iNGK15..4FC..AGT;NGK11,12..4FC..(X,XLS)202003-202205

sub44610-09J30

main44610-09J20iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(X,XLS)202206

main44610-09J30iNGK15..4FC..AGT;NGK11,12..4FC..(X,XLS)202206

44730PVALVE ASSY, VACUUM CHECK, NO.1

main44730-09050iNGK1#201209-201604

main44730-09080iNGK11..4FC201803-202205

VEHICLE STABILITY CONT-WITH

main44730-09080iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)201604-202205

main44730-09080iNGK12,15..4FC..(XLS,XS)201604-201803

main44730-09080iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

main44730-09080iNGK12..4FC..XS;NGK15..4FC..(XLS,XS)..BZ201803-202103

VEHICLE STABILITY CONT-WITH

main44730-F9030iNGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT202206

VEHICLE STABILITY CONT-WITH

44773FHOSE, UNION TO CHECK VALVE

main44773-0D040iNGK1#201209-201604

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iNGK1#¥230201209-201604

44783CLAMP, VACUUM HOSE

main44783-0D020iNGK12..4FC..XS;NGK15..4FC..BZ201604-202103

NO.1

main44783-0D020iNGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS)201604

NO.1

main44783-0D030iNGK12..4FC..XS;NGK15..4FC..BZ201604-202103

NO.2

main44783-0D030iNGK15..4FC..AGT;NGK11,12..4FC..(CROSS,X,XLS)201604

NO.2

main44783-52050iNGK1#201209-201604

44785GASKET, BRAKE BOOSTER

main44785-12040iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ¥200201209-202103

main44785-12040iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)¥200201209

4702

9006933029

main90069-33029

9018208007

main90182-08007¥100

91671A0612

main91671-A0612¥60

12 parts on this diagram · 3 diagrams in section
