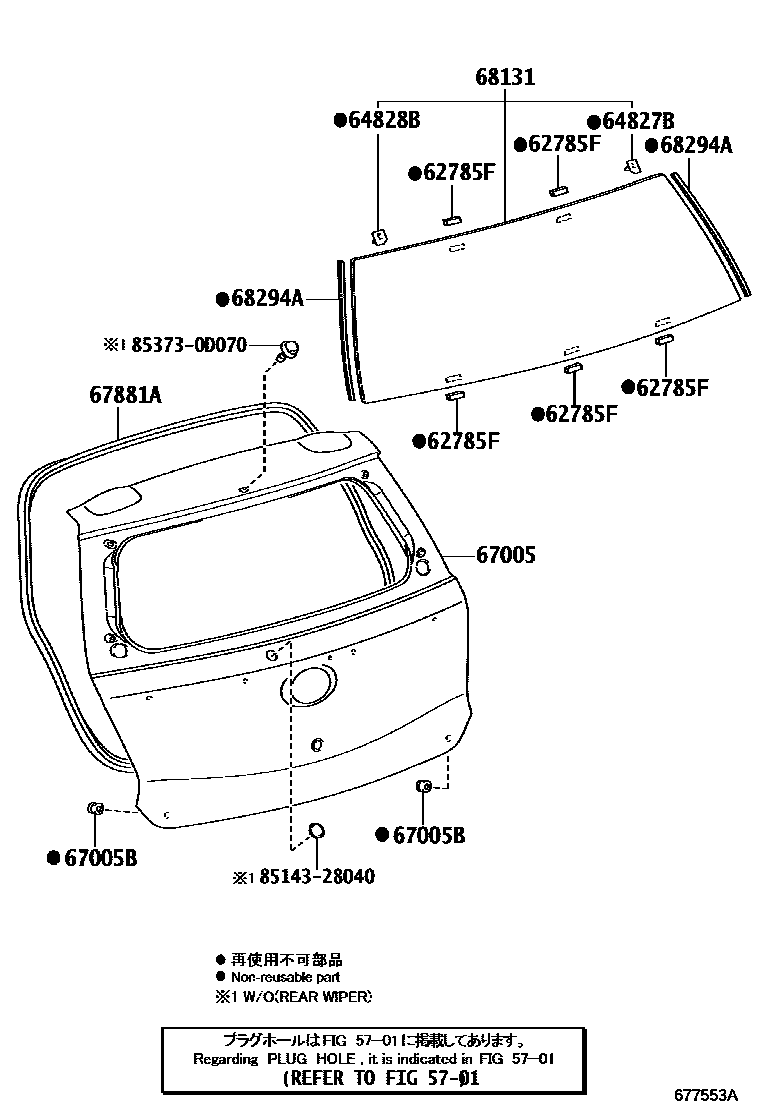

Toyota ETIOS — BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701

62785FSPACER, BACK DOOR GLASS

main62785-52010iNGK11..6F;NGK12..(4FC,6F)..XS..BZ201209-202103

64827BCLIP, BACK WINDOW GLASS, RH

main64827-0D060iNGK11..6F;NGK12..(4FC,6F)..XS..BZ201209-202103

64828BCLIP, BACK WINDOW GLASS, LH

main64828-0D060iNGK11..6F;NGK12..(4FC,6F)..XS..BZ201209-202103

67005PANEL SUB-ASSY, BACK DOOR

main67005-0D100iNGK11..STD201209-201310

main67005-0D170iNGK12..XLS201209

main67005-0D230iNGK11..6F;NGK12..(4FC,6F)..XS..BZ201209-202103

main67005-0D280iNGK12..CROSS201311-201802

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09142iNGK11..6F;NGK12..(4FC,6F)..XS..BZ¥100201209-202103

67881AWEATHERSTRIP, BACK DOOR

main67881-0D060iNGK11..6F;NGK12..(4FC,6F)..XS..BZ201209-202103

68131GLASS, BACK DOOR

main68105-0D120iNGK12..5F;NGK12..6F..XS..AGT;NGK11..(4FC,5F)..(X,XS);NGK12..(4FC,6F)..(CROSS,X,XLS)201209-202212

*EHT,T=3.1,GREEN

sub68105-0D121

main68105-0D121iNGK11..4FC;NGK12..X,XLS;NGK12..XS..AGT202301

main68105-0D210iNGK11..STD201209-201310

*TEM,T=3.1,GREEN

sub68105-0D211

68294ADAM, BACK DOOR GLASS ADHESIVE

main56117-50140iNGK12..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)¥870201209-202103

8514328040WIRING, WINDSHIELD WIPER MOTOR LEAD

main85143-28040¥200

853730D070HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-0D070

11 parts on this diagram · 2 diagrams in section
