Toyota ECHO — METER

0001 1W/O(TACHOMETER) 0002 1W(TACHOMETER) 0003 1CLOCK

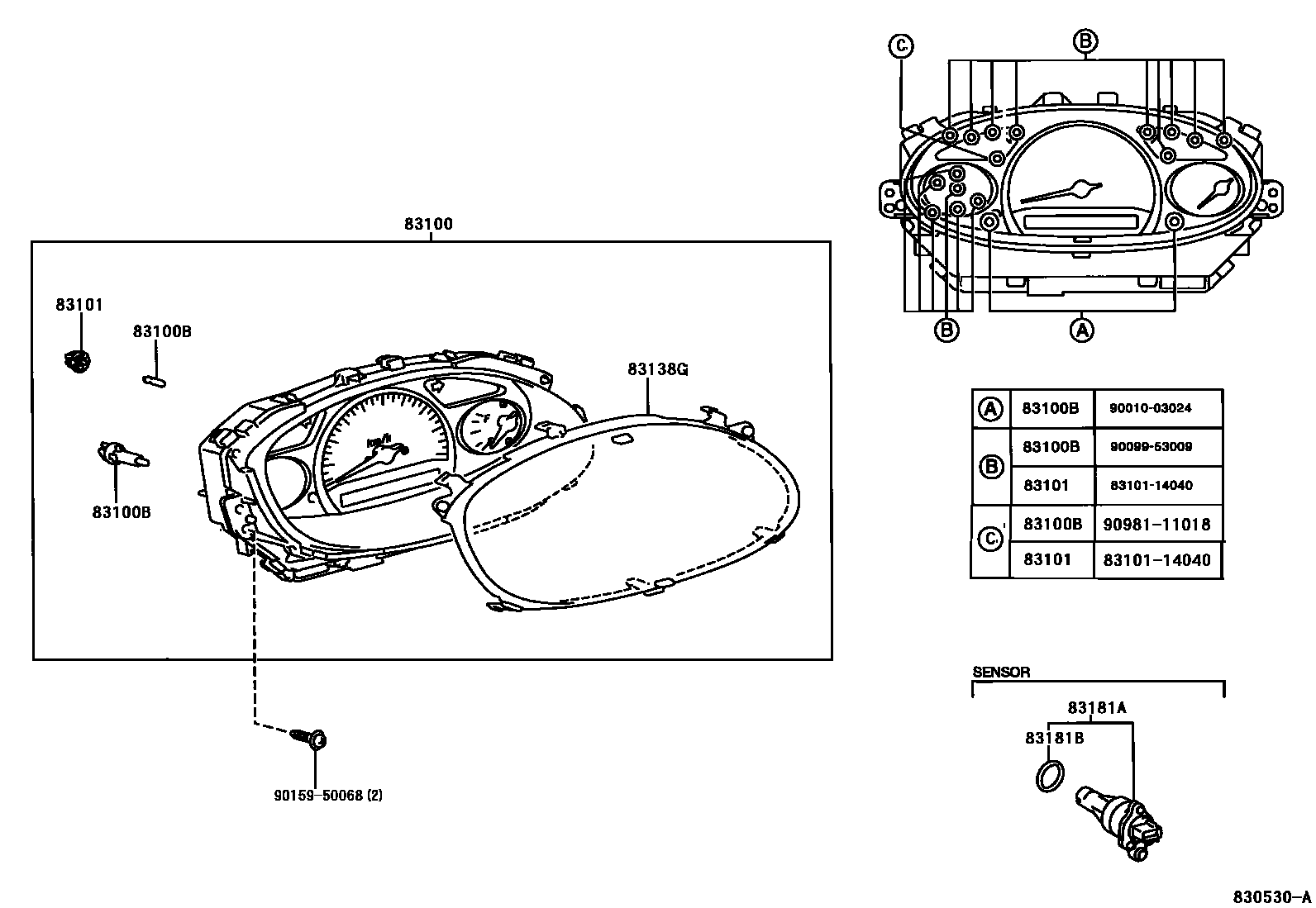

83100METER ASSY, COMBINATION

main83800-52350iNCP12..USA199908-200208

main83800-52360iNCP12..USA199908-200208

COLD AREA SPEC;COLD AREA SPEC & W(ABS);W(ABS)

main83800-52370iNCP12..CND199908-200208

main83800-5C080iNCP12..USA200208

main83800-5C090iNCP12..USA200208

COLD AREA SPEC;COLD AREA SPEC & W(ABS);W(ABS)

main83800-5C100iNCP12..CND200208

83100BBULB, COMBINATION METER, NO.1

main90010-03024iNCP12199908-200208

14V 1.4W,TYPE A:REFER TO ILLUSTRATION

main90010-07012iNCP12..USA200208-200602

14V 2W,TYPE A:REFER TO ILLUSTRATION

main90010-07016iNCP12..USA200208-200602

14V 2W,W(BLUE CAP),TYPE B:REFER TO ILLUSTRATION

main90072-02004iNCP12..USA200208-200602

14V 1.1W,TYPE C:REFER TO ILLUSTRATION

main90099-53009iNCP12199908-200208

14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION

main90981-11018iNCP12199908-200208

12V 1.2W W/O SOCKET,TYPE C:REFER TO ILLUSTRATION

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040iNCP12199908-200208

TYPE C:REFER TO ILLUSTRATION

main90072-01003iNCP12..USA200208

TYPE C:REFER TO ILLUSTRATION & W(TACHOMETER)

83138GGLASS, COMBINATION METER

main83852-52040iNCP12199908-200208

main83852-52340iNCP12..USA200208

W(TACHOMETER)

83181ASENSOR, SPEEDOMETER

main83181-12020iNCP12..MTM200208-200511

main83181-12040iNCP12..ATM200208-200511

83181BRING, O (FOR SPEEDOMETER SENSOR)

main96711-24018iNCP12..ATM199908-200208

main96711-24030iNCP12..MTM199908-200208

9015950068

main90159-50068

7 parts on this diagram · 3 diagrams in section
