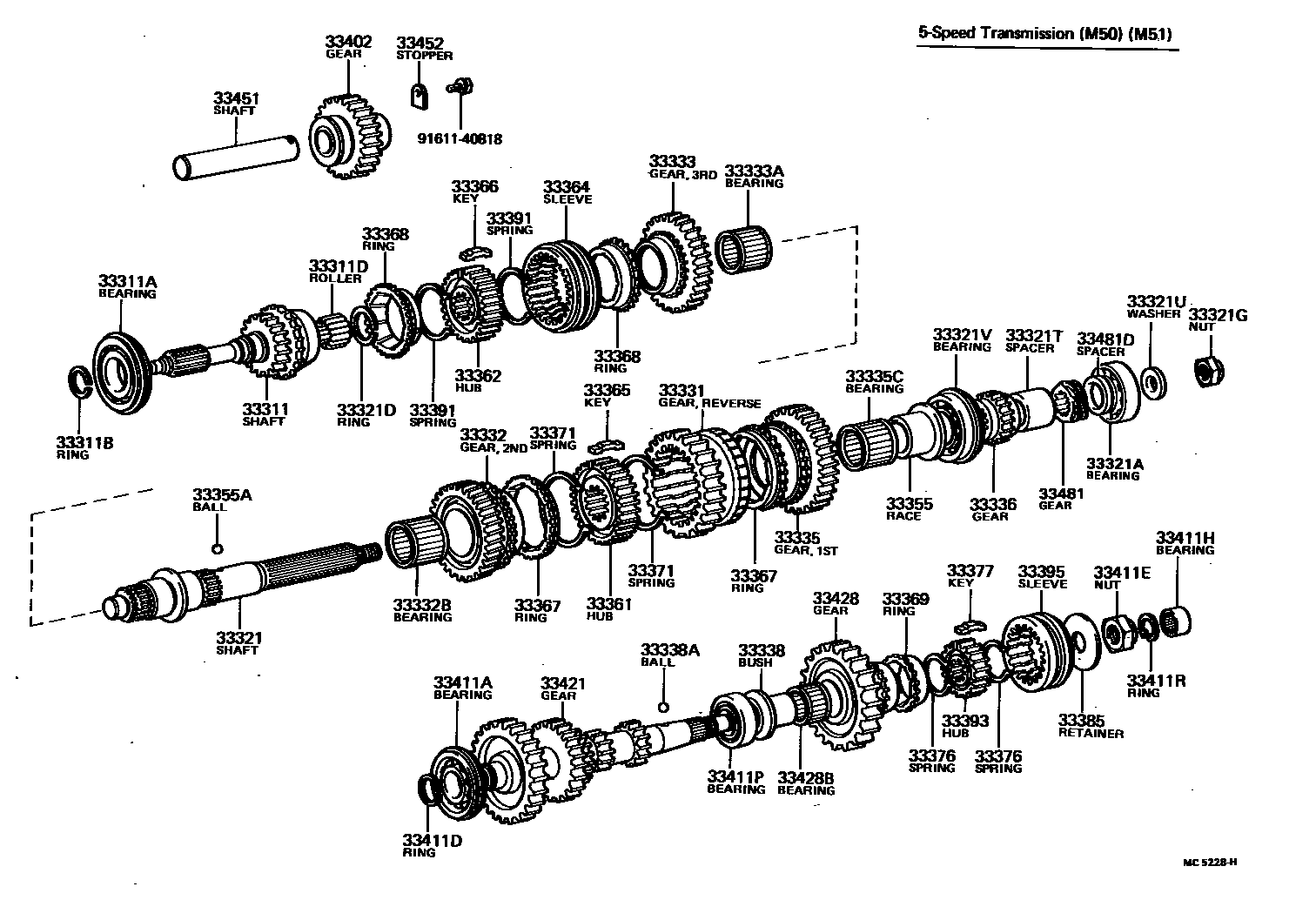

Toyota DYNA — TRANSMISSION GEAR (MTM)

0001 1 0002 1 0003 1 0004 1

33311SHAFT, INPUT

main33311-36032iBU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50¥27,300197708-198408

main33311-36060iBU20,30..M50;BU20..BTP..DSL¥24,900197708-198008

sub33311-36061¥25,000

main33311-36061iBU20,30,35..M50¥25,000198008-198110

sub33311-36062¥25,000

main33311-36062iBU20,22,30,33,35..M50¥25,000198110-198408

main33311-36070iBU36,37..H51¥27,100198204-198408

main33311-36080iBU37..275,30T198302-198408

W/H50S TRANSMISSION

33311ABEARING (FOR INPUT SHAFT FRONT)

main90363-35002iBU20..BTP..DSL;BU20,30,35..M50¥2,470197708-198110

RADIAL BALL BEARING

main90363-40004iBU20..CTP;BU25,3#..H50;BU20..KKT,TSK;BU20..TB..H50¥4,920197708-198005

sub90363-40018¥4,920

main90363-40018iBU37..275,30T¥4,920198302-198408

W/H50S TRANSMISSION

main90363-40018iBU2#,3#..H50¥4,920198005-198204

main90365-35001iBU20,22,30,33,35..M50¥8,800198110-198408

CYLINDERICAL ROLLER BEARING

main90365-40002iBU2#,32,34,36,37,4#,5#..H50,H51¥9,700198204-198408

33311BRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-33107iBU20..BTP..DSL;BU20,22,30,33,35..M50¥120197708-198408

main90520-33108iBU20..BTP..DSL;BU20,22,30,33,35..M50¥220197708-198408

main90520-33109iBU20..BTP..DSL;BU20,22,30,33,35..M50¥220197708-198408

main90520-33132iBU20..BTP..DSL;BU20,22,30,33,35..M50¥220197708-198408

main90520-33133iBU20..BTP..DSL;BU20,22,30,33,35..M50¥220197708-198408

main90520-33134iBU20..BTP..DSL;BU20,22,30,33,35..M50¥220197708-198408

main90520-36015iBU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51¥230197708-198408

main90520-36016iBU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51¥230197708-198408

33311DBEARING, INPUT SHAFT

main90361-06049iBU2#,3#,4#,5#¥180197708-198408

33321SHAFT, OUTPUT

main33321-36040iBU20..CTP;BU25,3#..H50;BU20..KKT,TSK;BU20..TB..H50197708-198006

main33321-36041iBU2#,3#..H50¥51,900198006-198204

main33321-36050iBU20,30..M50;BU20..BTP..DSL197708-198006

main33321-36051iBU20,30,35..M50¥27,900198006-198207

main33321-36052iBU20,22,30,33..M50¥27,700198207-198408

main33321-36060iBU2#,32,34,36,37,4#,5#..H50,H51¥32,000198204-198408

main33321-36060iBU37..275,30T¥32,000198302-198408

W/H50S TRANSMISSION

33321ABEARING (FOR OUTPUT SHAFT REAR)

main90363-32011iBU20,22,30,33,35..M50¥1,400198006-198408

main97103-06207iBU2#,32,34,36,37,4#,5#..H50,H51¥1,500198204-198408

main97103-06232iBU2#,3#¥1,060197708-197912

sub97104-06232

main97104-06232iBU2#,3#..H50197912-198204

33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)

main90520-36250iBU2#,3#,4#,5#¥320197708-198408

main90520-36251iBU2#,3#,4#,5#¥320197708-198408

main90520-36252iBU2#,3#,4#,5#¥320197708-198408

main90520-36253iBU2#,3#,4#,5#¥320197708-198408

main90520-36254iBU2#,3#,4#,5#¥320197708-198408

main90520-36255iBU2#,3#,4#,5#¥320197708-198408

33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)

main90179-20001iBU20,3#¥380198008-198408

main90179-20061iBU2#,3#¥330197708-198008

main90179-22005iBU2#,32,34,36,37,4#,5#..H50,H51¥240198204-198408

33321TSPACER (FOR OUTPUT SHAFT)

main90560-32002iBU20,30..M50;BU20..BTP..DSL¥680197708-198006

L=34.5

main90560-32003iBU20,22,30,33,35..M50¥920198006-198408

L=48.7

main90560-32442iBU25,3#..H50;BU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50¥1,220197708-198204

main90560-35006iBU2#,32,34,36,37,4#,5#..H50,H51¥1,220198204-198408

33321UWASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET)

main90201-20010iBU20,22,30,33..M50¥350198008-198408

main90201-20479iBU2#,3#¥350197708-198008

sub90201-20010¥350

main90201-22005iBU2#,32,34,36,37,4#,5#..H50,H51¥200198204-198408

33321VBEARING (FOR OUTPUT SHAFT CENTER)

main90363-35011iBU20,22,30,33,35..M50¥2,690198006-198408

main90363-40004iBU20..CTP;BU25,3#..H50;BU20..KKT,TSK;BU20..TB..H50¥4,920197708-198005

sub90363-40018¥4,920

main90363-40018iBU2#,30,31,32,34,35,36,37,4#,5#..H50,H51¥4,920198005-198408

main97153-06307iBU20,30..M50;BU20..BTP..DSL¥2,590197708-198006

sub90363-35021¥2,590

33331GEAR, REVERSE

main33331-36024iBU20..BTP..DSL;BU20,22,30,33,35..M50¥13,500197708-198408

33332GEAR, 2ND

main33332-36012iBU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50¥15,400197708-198408

main33332-36020iBU20..BTP..DSL;BU20,22,30,33,35..M50¥10,900197708-198408

main33332-60020iBU36,37..H51¥16,100198204-198408

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

main90364-44065iBU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51¥3,010197708-198408

main90364-46003iBU20,22,30,33..M50¥1,340198208-198408

main90364-46053iBU20..BTP..DSL;BU20,30,35..M50¥1,340197708-198208

sub90364-46003¥1,340

33333GEAR, 3RD

main33333-36013iBU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50¥15,400197708-198408

main33333-36021iBU20..BTP..DSL;BU20,22,30,33,35..M50¥14,300197708-198408

main33333-60030iBU36,37..H51¥15,400198204-198408

33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)

main90364-43001iBU20,22,30,33..M50198211-198408

NSK

sub90364-43004¥2,360

main90364-43003iBU20,30..M50¥2,360198208-198211

NSK

sub90364-43001

main90364-43004iBU20,22,30,33..M50¥2,360198208-198408

KOYO

main90364-43042iBU20..BTP..DSL;BU20,30,35..M50¥2,360197708-198208

sub90364-43004¥2,360

33335GEAR, 1ST

main33335-36042iBU20..CTP;BU25,3#..H50;BU20..KKT,TSK;BU20..TB..H50¥21,900197708-198008

main33335-36050iBU20,22,30..ST..20T¥18,700197708-198408

main33335-60020iBU2#,30,32,34,35,36,37,4#,5#..H50,H51¥17,300198008-198408

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90364-44065iBU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51¥3,010197708-198408

main90364-46003iBU20,22,30,33..M50¥1,340198208-198408

main90364-46053iBU20..BTP..DSL;BU20,30,35..M50¥1,340197708-198208

sub90364-46003¥1,340

33336GEAR, 5TH

main33336-36020iBU20..CTP;BU25,3#..H50;BU20..KKT,TSK;BU20..TB..H50¥21,300197708-198008

main33336-36021iBU20,3#..H50¥22,900198008-198204

main33336-36030iBU20..BTP..DSL;BU20,30,35..M50¥18,500197708-198210

main33336-36031iBU20,22,30,33..M50¥18,400198210-198408

main33336-36040iBU36,37..H51¥20,900198204-198408

main33336-36050iBU2#,32,34,36,37,4#,5#..H50¥18,400198204-198408

33338BUSH OR BEARING, 5TH GEAR

main33338-36010iBU25,3#..H50;BU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50¥5,800197708-198204

main33338-36020iBU20..BTP..DSL;BU20,22,30,33,35..M50¥4,700197708-198408

33338ABALL (FOR GEAR BUSH)

main90360-06004iBU20..BTP..DSL;BU20,22,30,33,35..M50¥90197708-198408

33355RACE, 1ST GEAR BEARING INNER

main33355-36010iBU20..BTP..DSL;BU20,22,30,33,35..M50¥3,040197708-198408

33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK

main90360-06004iBU25,3#..H50;BU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50¥90197708-198408

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-36010iBU20..BTP..DSL;BU20,22,30,33,35..M50¥9,400197708-198408

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-36021iBU2#,3#,4#,5#¥6,300197708-198408

33364SLEEVE, TRANSMISSION HUB, NO.2

main33364-36051iBU2#,3#,4#,5#¥7,400197708-198408

sub33364-60010¥7,300

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-36010iBU20..BTP..DSL;BU20,22,30,33,35..M50¥780197708-198408

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33366-36020iBU2#,3#,4#,5#¥720197708-198408

33367RING, SYNCHRONIZER, NO.1

main33367-36030iBU20..BTP..DSL;BU20,22,30,33,35..M50¥4,410197708-198408

2ND

main33367-40012iBU20..BTP..DSL;BU20,22,30,33,35..M50¥4,410197708-198408

1ST

33368RING, SYNCHRONIZER, NO.2

main33368-20012iBU2#,3#,4#,5#¥2,660197708-198408

33369RING, SYNCHRONIZER, NO.3

main33367-14010iBU2#,3#¥2,250197708-198408

main33368-20012iBU2#,32,34,36,37,4#,5#..H50,H51¥2,660198204-198408

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-36020iBU20..BTP..DSL;BU20,22,30,33,35..M50¥380197708-198408

33376SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB)

main33371-14010iBU2#,3#¥160197708-198408

main33391-36010iBU2#,32,34,36,37,4#,5#..H50,H51¥250198204-198408

33377KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB)

main33366-14010iBU2#,3#¥320197708-198408

main33394-36011iBU2#,32,34,36,37,4#,5#..H50,H51¥340198204-198408

33385RETAINER, SHIFTING KEY

main33385-36010iBU25,3#..H50;BU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50¥490197708-198204

main33385-36020iBU20..BTP..DSL;BU20,22,30,33,35..M50¥340197708-198408

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33371-20010iBU2#,3#,4#,5#¥200197708-198408

33393HUB, TRANSMISSION CLUTCH, NO.3

main33393-36010iBU25,3#..H50;BU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50¥8,400197708-198204

main33393-36020iBU20..BTP..DSL;BU20,22,30,33,35..M50¥8,700197708-198408

33395SLEEVE, TRANSMISSION HUB, NO.3

main33364-14010iBU2#,3#¥6,400197708-198408

main33395-36010iBU2#,32,34,36,37,4#,5#..H50,H51¥10,200198204-198408

sub33395-60010¥6,700

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-36021iBU25,3#..H50;BU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50¥15,400197708-198204

main33402-36030iBU20..BTP..DSL;BU20,22,30,33,35..M50¥14,700197708-198408

main33402-36050iBU2#,32,34,36,37,4#,5#..H50,H51¥15,400198204-198408

33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)

main90363-30001iBU20..BTP;BU20,30..M50¥1,760197708-197712

main90365-30004iBU20..BTP..DSL;BU20,22,30,33,35..M50¥5,400197712-198408

main90365-32002iBU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51¥6,300197708-198408

main90365-42001iBU37..275,30T198302-198408

W/H50S TRANSMISSION

33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1

main90520-28246iBU20..BTP..DSL;BU20,22,30,33,35..M50¥170197708-198408

main90520-28248iBU20..BTP..DSL;BU20,22,30,33,35..M50¥130197708-198408

main90520-28249iBU20..BTP..DSL;BU20,22,30,33,35..M50¥210197708-198408

main90520-30214iBU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51¥180197708-198408

main90520-30216iBU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51¥180197708-198408

main90520-30218iBU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51¥180197708-198408

main90520-38003iBU37..275,30T¥820198302-198408

main90520-38004iBU37..275,30T¥820198302-198408

main90520-38005iBU37..275,30T¥820198302-198408

main90520-38006iBU37..275,30T¥820198302-198408

main90520-38007iBU37..275,30T¥820198302-198408

33411ENUT(FOR COUNTER GEAR SHAFT)

main90179-26001iBU20,30..M50;BU20..BTP..DSL¥570197708-197906

sub90179-26002¥620

main90179-26002iBU20,30,35..M50¥620197906-198408

33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)

main90364-22003iBU20..BTP..DSL;BU20,22,30,33,35..M50¥1,740197708-198408

main90365-32010iBU25,3#..H50;BU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50¥4,760197708-198204

main90365-40001iBU2#,32,34,36,37,4#,5#..H50,H51¥3,950198204-198408

33411PBEARING, COUNTERSHAFT CENTER

main90365-30014iBU20..BTP..DSL;BU20,22,30,33,35..M50¥3,350197708-198408

33411RRING, SNAP, COUNTER GEAR REAR BEARING

main90521-38117iBU20..BTP..DSL;BU20,22,30,33,35..M50¥190197708-198408

33421GEAR, COUNTER

main33411-36040iBU20..CTP;BU25,3#..H50;BU20..KKT,TSK;BU20..TB..H50197708-198008

main33411-36060iBU20..T2;BU20,30..ST¥48,700197708-197912

sub33411-36061¥48,500

main33411-36061iBU20,22..DTP;BU20,22,30,33,35..HRF,SRF,T2,TW1,TW2¥48,500197912-198408

main33411-36070iBU20,3#..H50198008-198204

main33421-36040iBU36,37..H51¥84,200198204-198408

main33421-36050iBU2#,32,34,36,37,4#,5#..H50¥80,300198204-198408

main33421-36060iBU37..275,30T¥79,900198302-198408

W/H50S TRANSMISSION

33428GEAR, COUNTERSHAFT 5TH

main33046-36011iBU36,37..H51¥22,600198204-198408

main33046-36021iBU2#,32,34,36,37,4#,5#..H50¥22,500198204-198408

main33428-36020iBU20..CTP;BU25,3#..H50;BU20..KKT,TSK;BU20..TB..H50197708-198008

main33428-36021iBU20,3#..H50¥21,000198008-198204

main33428-36030iBU20..BTP..DSL;BU20,22,30,33,35..M50¥16,900197708-198408

sub33428-36031¥16,700

33428BBEARING (FOR COUNTER 5TH GEAR)

main90364-32007iBU2#,32,34,36,37,4#,5#..H50,H51¥3,630198204-198408

main90364-38001iBU20..BTP..DSL;BU20,22,30,33,35..M50¥3,030197708-198408

33451SHAFT, REVERSE IDLER GEAR

main33451-36022iBU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,32,34,36,37,4#,5#..H50,H51¥3,580197708-198408

main33451-36030iBU20..BTP..DSL;BU20,22,30,33,35..M50¥2,770197708-198408

33452STOPPER, REVERSE IDLER GEAR SHAFT

main33452-36020iBU20..BTP..DSL;BU20,22,30,33,35..M50¥300197708-198310

main33452-36030iBU22,33..M50¥160198310-198408

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-36050iBU2#..KKT,TSK¥2,100197708-197904

N=4,DRIVEN GEAR N=17

main33481-36050iBU25;BU20..DM1;BU20..275¥2,100197708-198006

N=4

main33481-36050iBU30..WT¥2,100197708-197904

N=4,DRIVEN GEAR N=16

main33481-36060iBU30..ST197708-197904

N=5,DRIVE GEAR N=19

main33481-36060iBU30..ST197708-197904

N=5,DRIVEN GEAR N=19

main33481-36060iBU30..ST197708-198006

N=5,DRIVEN GEAR N=18

main33481-36060iBU20..HRF,SRF,T2,TW1,TW2197904-198006

N=5

main33481-36080iBU20..CTP¥2,300198006-198204

N=4

main33481-36090iBU20..DM3;BU20..06S..WT¥2,260198006-198408

N=5

main33481-36090iBU20..BTP,DTP,FTP¥2,260198006-198204

N=5,DRIVEN GEAR N=18

main33481-36110iBU40,41,5#¥2,290198204-198408

N=4

main33481-36110iBU37..275,30T¥2,290198302-198408

W/H50S TRANSMISSION,N=4

main33481-36120iBU2#,32,34,36,37,45,46..H50,H51¥2,300198204-198408

N=5

33481DSPACER (FOR SPEEDOMETER DRIVE GEAR)

main33487-36020iBU2#,3#¥840197708-198204

main33487-36040iBU20,22,30,33,35..M50¥670198006-198408

main33487-36050iBU2#,32,34,36,37,4#,5#..H50,H51¥670198204-198408

9161140818

main91611-40818¥130

53 parts on this diagram · 4 diagrams in section
