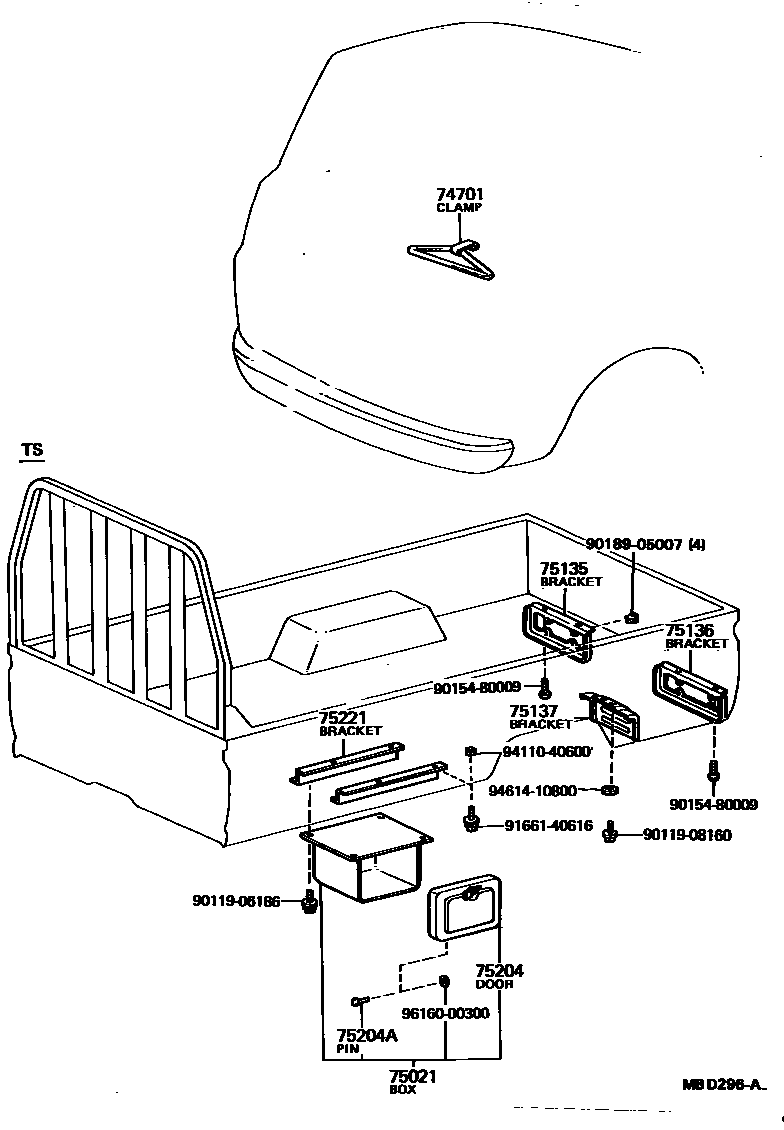

Toyota DYNA — TOOL BOX & LICENSE PLATE BRACKET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

74701CLAMP SUB-ASSY, TOOL BAG

main74701-95601iBU20,21,22,23,3#,40,41..TB,TS¥1,460197708-198408

sub58705-95701¥1,460

75021BOX SUB-ASSY, TOOL

main75201-96305iBU20,21,23..L2..TSK¥25,000197708-198408

sub75210-96302¥23,000

main75210-92703iBU20,22..TB..ST197708-198408

main75210-92725iBU20..T3..WT197708-198008

main75210-92726iBU20..CTP¥40,100198008-198408

main75210-92728iBU2#..TB..H50..03S..CBU198008-198408

COLD SPEC

main75210-92729iBU20..TB..H50..CBU197812-198008

COLD SPEC

main75210-92730iBU20,21,23..FTP198008-198408

main75210-92740iBU20..T2197708-197904

main75210-92741iBU20..M50..WT..20T197904-198008

main75210-92742iBU20,22..M50..WT..20T¥40,100198008-198408

main75210-92801iBU3#..T3¥40,200197708-198204

sub75210-92811¥36,400

main75210-92810iBU30..M50..WT197904-198008

main75210-92811iBU30,35..M50¥36,400198008-198408

main75210-95406iBU20..TS..20T¥18,000197708-198408

main75210-95407iBU20,22..TS..20T..ATP198008-198408

main75215-93102iBU20..L2..DM1..KKT197708-198204

main75215-93104iBU21,23..(DM1,DM4)..KKT198204-198408

main75215-93300iBU20,21,23..DM3197904-198408

75135BRACKET, COMBINATION REAR LAMP, RH

main65208-92704iBU30..TS¥1,740197708-198103

sub65257-92700¥1,730

sub90189-05007¥160

main65208-92705iBU2#,36..TB;BU30,32,33,34,35,37,40,41¥1,740198103-198408

sub65257-92701¥1,740

sub90189-05007¥160

main65257-92701iBU3#,41;BU2#..TB¥1,740198408-198408

sub75103-95409¥1,970

main74707-96305iBU20..DM1¥3,140197708-198204

sub74707-96307¥3,130

main74707-96307iBU21,23..DM1,DM4¥3,130198204-198408

main74781-93300iBU20..DM3197904-198105

main74781-93301iBU21,23..DM3198105-198408

75136BRACKET, COMBINATION REAR LAMP, LH

main65208-92704iBU20..T3..TS¥1,740197708-198103

sub65257-92700¥1,730

sub90189-05007¥160

main65208-92705iBU2#,36..TB;BU30,32,33,34,35,37,40,41¥1,740198103-198408

sub65257-92701¥1,740

sub90189-05007¥160

main65257-92701iBU3#,41;BU2#..TB¥1,740198408-198408

sub75103-95409¥1,970

main74708-96305iBU20..DM1¥3,140197708-198204

sub74708-96307¥3,130

main74708-96307iBU21,23..DM1,DM4¥3,130198204-198408

main74782-93300iBU20..DM3197904-198105

main74782-93301iBU21,23..DM3198105-198408

75137BRACKET, LICENSE PLATE LAMP

main75137-95400iBU20,22,30..TS¥1,990197708-198408

75204DOOR SUB-ASSY, TOOL BOX

main75204-95401iBU20,22..TS..20T197708-198408

75204APIN, TOOL BOX DOOR HINGE

main90249-05002iBU20,22..TS..20T197708-198408

75221BRACKET, TOOL BOX

main75221-95407iBU20..T3..TS197708-198008

main75221-95408iBU20,22..T1..CBU197708-198408

9011906186

main90119-06186¥140

9011908160

main90119-08160¥160

9015480009

main90154-80009

9018905007

main90189-05007¥160

9166140616

main91661-40616¥80

9411040600

main94110-40600¥80

9461410800

main94614-10800¥120

9616000300

main96160-00300¥160

16 parts on this diagram · 7 diagrams in section
