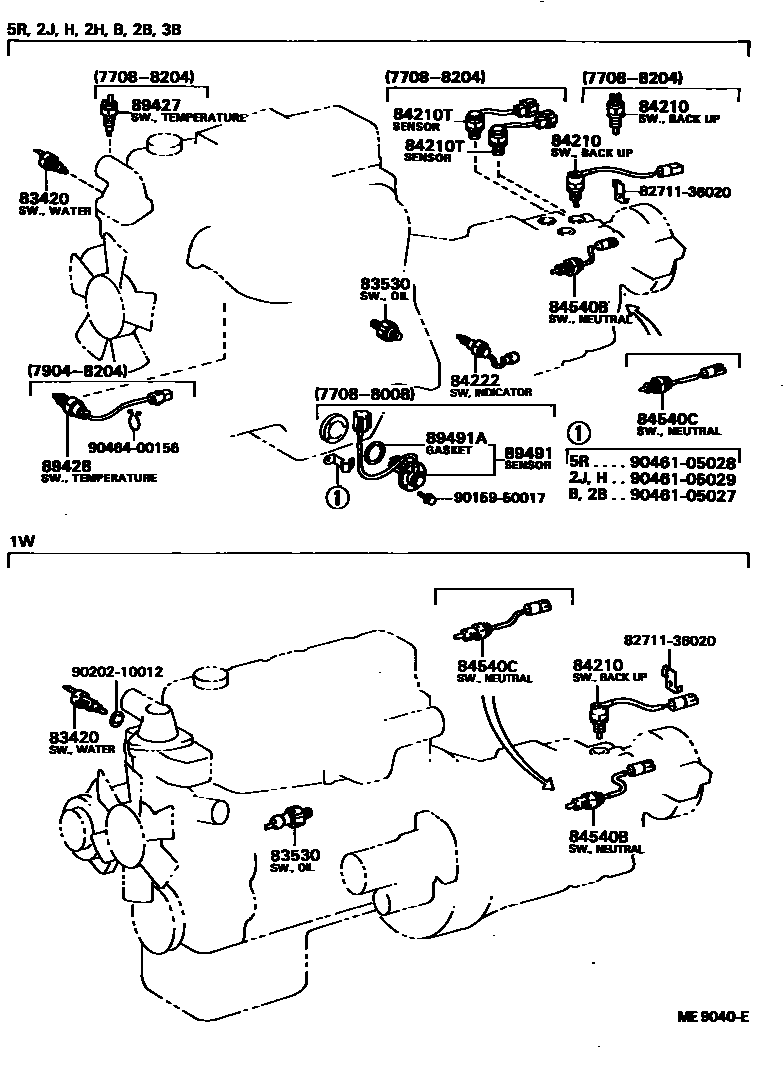

Toyota DYNA — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16010iBU2#,3#,4#,5#197912-198308

DENSO

sub83420-20020¥3,610

main83420-20011iBU2#,3#¥3,430197708-197912

main83420-20020iBU2#,3#,4#,5#¥3,610197912-198308

YAZAKI

main83420-20020iBU2#,3#,4#,51¥3,610198308-198408

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14010iBU2#,3#¥1,310197708-198004

sub83530-14030¥1,320

main83530-14010iBU2#,3#,4#,5#¥1,310198004-198408

sub83530-14030¥1,320

84210SWITCH ASSY, BACK-UP LAMP

main84210-14010iBU2#,3#¥5,200197708-198204

main84210-36010iBU2#,3#,4#,5#¥4,290198204-198408

84210TSENSOR ASSY, SHIFT POINT

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-36010iBU37..275,30T¥5,800198302-198408

W/SUPER SHIFT

84540BSWITCH ASSY, NEUTRAL START (FOR TILT CAB)

main84540-36010iBU20..DTP;BU20..ST..20T;BU25,3#..02S,03S;BU20..(02S,03S)..WT197708-198008

main84540-36011iBU20..DTP;BU20..ST..20T;BU20,3#..(02S,03S)..WT¥5,200198008-198204

main84540-36011iBU32..20T;BU2#,30,36,4#,50¥5,200198204-198302

main84540-36011iBU2#,3#,4#,51¥5,200198302-198408

84540CSWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE)

main84540-36010iBU2#,30..H50;BU20..T3..03S..WT..ATP197708-197904

W/EXHAUST BRAKE

main84540-36010iBU2#,3#..WT197904-198008

W/EXHAUST BRAKE

main84540-36011iBU2#,3#,4#,5#¥5,200198008-198408

W/EXHAUST BRAKE

89427SWITCH, TEMPERATURE DETECT

89428SWITCH, TEMPERATURE DETECT, NO.2

89491SENSOR, ENGINE OIL LEVEL

main89491-36901iBU2#,3#197708-198008

89491AGASKET, ENGINE OIL LEVEL SENSOR

main90301-25094iBU2#,3#¥310197708-198008

8271136020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36020¥640

9015950017

main90159-50017

9020210012

main90202-10012¥80

9046105027

main90461-05027

9046105028

main90461-05028

9046105029

main90461-05029

9046400156

main90464-00156¥130

18 parts on this diagram · 6 diagrams in section
