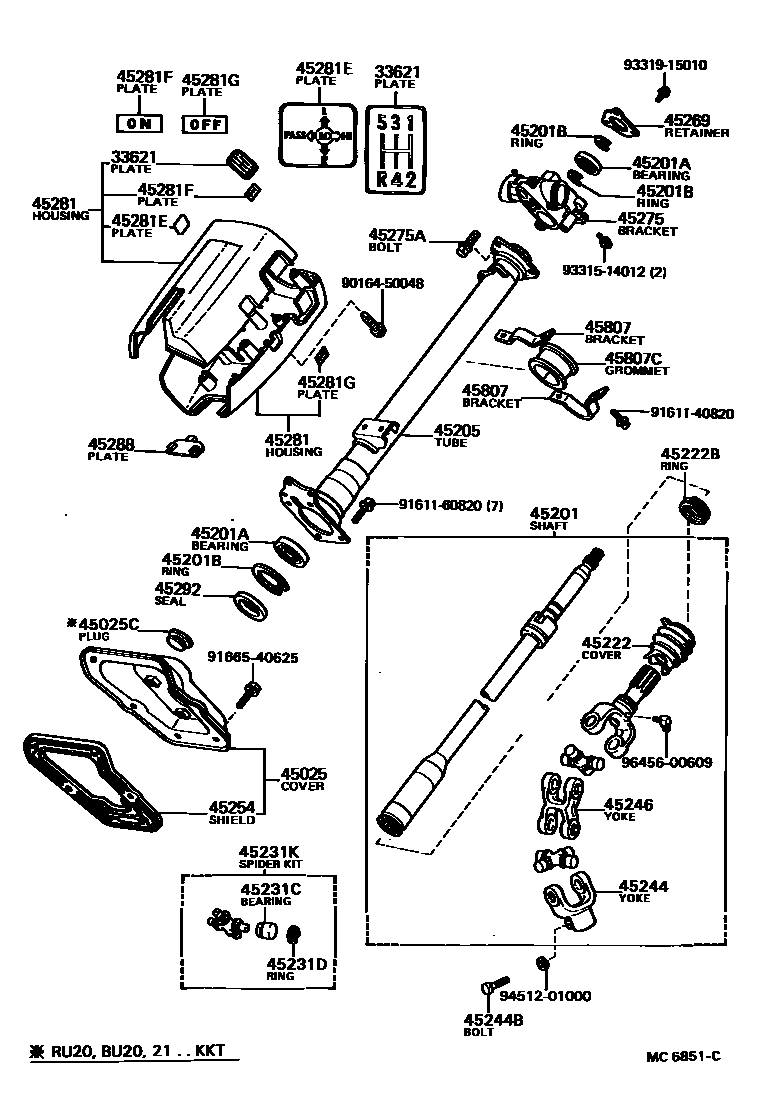

Toyota DYNA — STEERING COLUMN & SHAFT

0001 1 0002 1 0004 1 0007 1 0012 1

33621PLATE, CONTROL LEVER CAUTION

main33621-36020iBU2#,30,31,32,33,34..5H¥510197708-198408

main33621-36050iBU37..275,30T198302-198408

W/H50S TRANSMISSION

45025COVER, STEERING INTERMEDIATE SHAFT

main45025-36010iBU20..DM3;BU21,23..(DM3,TB)..03S;BU25,30,31,32,33,34..5H;BU20,22..(HRF,SRF,T2,T3,TW1,TW2)..5H¥3,460197904-198408

main45025-36010iBU25,30..5H;BU20..(HRF,SRF,T1,T2,T3,TW1)..5H¥3,460197708-197904

main45025-36010iBU20,21,22,23..BTP,CTP,DTP,FTP¥3,460197708-198408

main45025-36010iBU37..275,30T¥3,460198302-198408

W/H50S TRANSMISSION

main45025-36020iBU20,22..TS..20T198204-198408

main45025-36020iBU20,21,23..DM1,DM4197708-198408

main45025-36030iBU20,22,23,30,35,36,37,4#,5#..5F197708-198408

45025CPLUG, HOLE(FOR STEERING COLUMN HOLE COVER)

main90950-01242iBU20,21..20T..KKT¥230197708-198408

45201SHAFT SUB-ASSY, STEERING MAIN

main45210-36010iBU2#,3#197708-198008

main45210-36011iBU2#,3#,4#,5#¥56,800198008-198408

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iBU2#,3#,4#,5#¥660197708-198408

UPR

main90363-35003iBU2#,3#,4#,5#¥1,860197708-198408

LWR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iBU2#,3#,4#,5#¥120197708-198408

�������P�D�Q�O,UPR BEARING,LWR

main90520-17269iBU2#,3#,4#,5#¥120197708-198408

�������P�D�Q�O,UPR BEARING,UPR

main90521-59001iBU2#,3#,4#,5#¥300197708-198408

LWR BEARING

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-36101iBU37..275,30T198302-198408

W/H50S TRANSMISSION

main45205-36101iBU2#,30,31,32,33,34..5H197708-198408

main45205-36121iBU20,21,22,23,30,35,36,37,4#,5#..5F197708-198408

45222COVER, STEERING GEAR DUST

main45222-26010iBU2#,3#,4#,5#¥300197708-198408

STEERING GEAR HOUSING SIDE

main45222-36011iBU2#,3#,4#,5#¥720197708-198408

STEERING MAIN SHAFT SIDE

45222BRING, DUST COVER SET

main90520-32011iBU2#,3#¥110197708-197908

45231CBEARING, UNIVERSAL JOINT SPIDER(FOR STEERING MAIN SHAFT)

main37402-10020iBU2#,3#,4#,5#¥790197708-198408

45231DRING, HOLE SNAP(FOR STEERING MAIN SHAFT)

main90521-22011iBU2#,3#,4#,5#¥250197708-198408

T=1.20

main90521-22012iBU2#,3#,4#,5#¥250197708-198408

T=1.25

main90521-22013iBU2#,3#,4#,5#¥230197708-198408

T=1.30

45231KSPIDER KIT, UNIVERSAL JOINT(FOR STEERING MAIN SHAFT)

main04371-10011iBU2#,3#,4#,5#¥5,800197708-198408

45244YOKE, STEERING WORM

main45244-36010iBU2#,3#¥12,200197708-198008

main45244-60020iBU2#,3#,4#,5#¥5,200198008-198408

45244BPIN OR BOLT(FOR STEERING WORM YOKE)

main91111-51032iBU2#,3#¥210197708-198008

sub91112-61032¥170

main91121-51032iBU2#,3#,4#,5#¥170198008-198408

45246YOKE, STEERING INTERMEDIATE

main45246-36050iBU2#,3#,4#,5#¥11,900197708-198408

45254SHIELD, STEERING COLUMN HOLE

main45254-36040iBU20,21,25,30,31,32,35,36,40,45,50197708-198408

45269RETAINER, MAIN SHAFT BEARING

main45269-36010iBU2#,3#,4#,5#¥620197708-198408

45275BRACKET, STEERING COLUMN, UPPER

main45307-36050iBU2#,3#,4#,50¥12,600197708-198209

sub45307-36051¥12,600

main45307-36051iBU2#,3#,4#,5#¥12,600198209-198408

45275ABOLT, HEXAGON(FOR STEERING COLUMN BRACKET)

main91611-40616iBU2#,3#¥220197708-197911

sub91611-60616¥110

main91611-60616iBU2#,3#,4#,5#¥110197911-198408

45281HOUSING, STEERING COLUMN

main45286-36090iBU2#;BU30..20T;BU30..06S¥3,400197708-197904

UPR,W/O EXHAUST BRAKE

main45286-36090iBU25;BU30..06S;BU30..03S..20T;BU20..DM1,DM3,TS;BU20..T3..TB..03S..20T;BU20..(HRF,SRF,T2,TW2)..5H¥3,400197904-198008

UPR,W/O EXHAUST BRAKE

main45286-36100iBU20..H50..03S..20T;BU20..T3..03S..WT..ATP197708-197904

UPR,W/EXHAUST BRAKE

main45286-36100iBU20..BTP,CTP197708-198008

UPR,W/EXHAUST BRAKE

main45286-36140iBU20..02S..WT197708-197904

UPR,W/EXHAUST BRAKE

main45286-36140iBU20,30..02S..WT197904-198008

UPR,W/EXHAUST BRAKE

main45286-36230iBU30;BU20..KKT,TSK;BU20..5H..M50;BU20..TB..H50..03S..20T¥4,080198008-198204

UPR,W/O EXHAUTT BRAKE

main45286-36270iBU20,30..5H198008-198204

UPR,W/EXHAUST BRAKE

main45286-36300iBU20,35..5F198008-198204

UPR,W/O EXHAUST BRAKE

main45286-36310iBU20,35,36..5F198008-198204

UPR,W/EXHAUST BRAKE

main45286-36470iBU37..275,30T198302-198408

UPR,W/H50S TRANSMISSION

main45286-36510iBU20,22..ST198204-198408

UPR,W/O EXHAUST BRAKE

main45286-36520iBU2#,30,32,33,34..5H198204-198408

UPR,W/EXHAUST BRAKE

main45286-36550iBU2#,36,37,4#,5#..5F198204-198408

UPR,W/EXHAUST BRAKE

main45287-36070iBU2#;BU30..20T;BU30..06S¥3,400197708-197904

LWR,W/O EXHAUST BRAKE

main45287-36070iBU20..BTP,CTP,DTP¥3,400197904-198008

LWR,W/O EXHAUST BRAKE

main45287-36080iBU20..H50..20T;BU20..T3..03S..WT..ATP197708-197904

LWR,W/EXHAUST BRAKE

main45287-36080iBU20..BTP,CTP197708-198008

LWR,W/EXHAUST BRAKE

main45287-36120iBU30;BU20..M50;BU20..KKT,TSK;BU20..TB..H50..20T¥3,910198008-198204

LWR,W/O EXHAUST BRAKE

main45287-36130iBU20,3#¥3,910198008-198204

LWR,W/EXHAUST BRAKE

main45287-36220iBU20,22..ST¥3,900198204-198408

LWR,W/O EXHAUST BRAKE

main45287-36230iBU2#,3#,4#,5#¥3,900198204-198408

LWR,W/EXHAUST BRAKE

45281EPLATE, SAFETY CAUTION

main45283-22010iBU2#,3#,4#,5#¥150197708-198408

45281FPLATE, EXHAUST BRAKE CAUTION, NO.1

main17479-47010iBU20..BTP,CTP197708-197904

main17479-47010iBU30;BU2#,31..WT197904-198008

main17479-47010iBU20,30,35,36198008-198408

45281GPLATE, EXHAUST BRAKE CAUTION, NO.2

main17489-47010iBU20..BTP,CTP197708-197904

main17489-47010iBU30;BU2#,31..WT197904-198008

main17489-47010iBU20,30,35,36198008-198408

45288PLATE, STEERING COLUMN COVER

main45288-36010iBU2#,3#197708-198008

main45288-36020iBU20,3#198008-198204

main45288-36040iBU2#,3#,4#,5#198204-198408

45292SEAL, MAIN SHAFT LOWER DUST

main45292-36020iBU2#,3#,4#,5#¥270197708-198408

45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

main55661-95406iBU2#,3#,4#,5#¥540197708-198408

UPR

main55662-95406iBU2#,3#,4#,5#¥540197708-198408

LWR

45807CGROMMET(FOR STEERING COLUMN CLAMP)

main90480-50002iBU2#,3#,4#,5#¥580197708-198408

9016450048

main90164-50048¥110

9161140820

main91611-40820¥130

9161160820

main91611-60820¥200

9166540625

main91665-40625¥120

9331514012

main93315-14012¥70

9331915010

main93319-15010¥70

9451201000

main94512-01000¥90

9645600609

main96456-00609¥240

35 parts on this diagram · 5 diagrams in section
