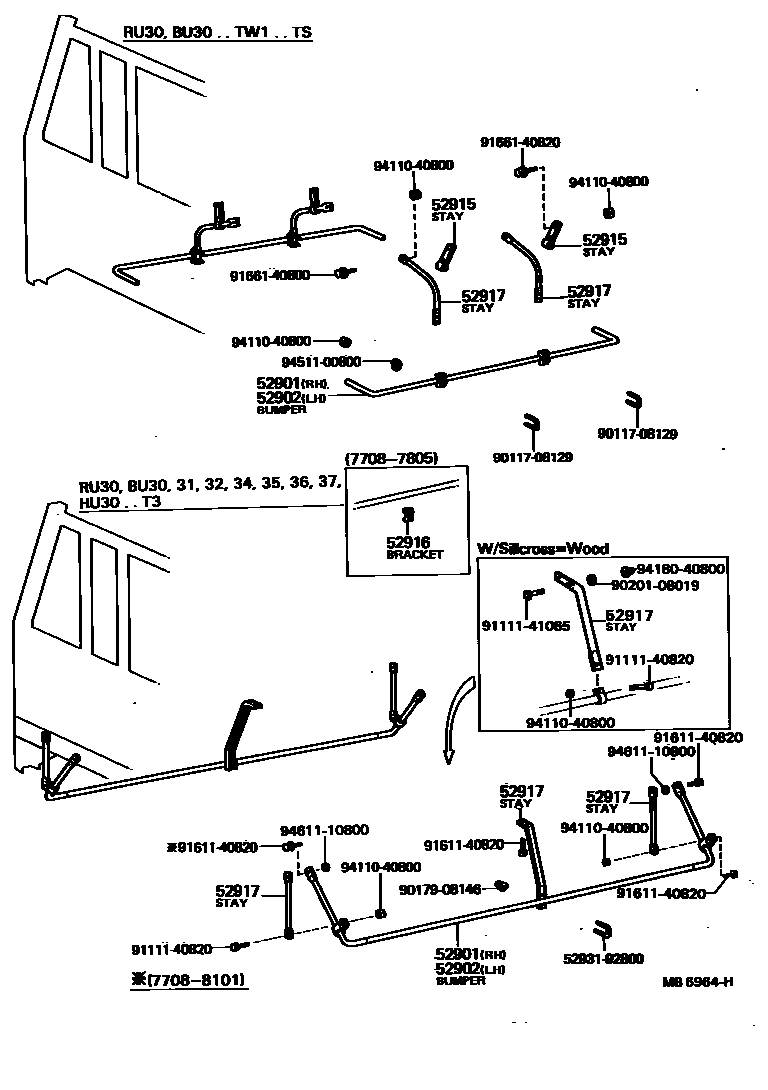

Toyota DYNA — SIDE BUMPER & BUMPER STAY

0001 1 0003 1 0005 1

52901BUMPER SUB-ASSY, SIDE, RH NO.1

main52901-92760iBU20..275197912-198008

main52901-92761iBU20,21,23..275198008-198408

main52901-92800iBU30..TB197708-197904

main52901-92801iBU3#..T3197904-198008

main52901-92802iBU30,32,34..H50..20T198008-198408

main52901-92810iBU30..M50..WT197904-198008

main52901-92811iBU35,36,37..T2198008-198408

main52901-92813iBU30,33..M50198008-198408

main52901-92820iBU35,36..H50198008-198012

main52901-92821iBU35,36..H50198008-198012

SILLCROSS=WOOD

main52901-92822iBU35,36,37..TB..H50198012-198408

main52901-92823iBU35,36,37..TB..H50198012-198408

SILLCROSS=WOOD

main52901-92860iBU30..TB..06S197904-198008

main52901-92861iBU30,32,34..06S198008-198408

main52901-92870iBU40,41198204-198408

main52902-95400iBU30..TS197708-198008

52902BUMPER SUB-ASSY, SIDE, LH NO.1

main52901-92760iBU20..275197912-198008

main52901-92870iBU40,41198204-198408

main52902-92761iBU20,21,23..275198008-198408

main52902-92800iBU30..TB197708-197904

main52902-92801iBU3#..T3197904-198008

main52902-92802iBU30,32,34..H50..20T198008-198408

main52902-92810iBU30..M50..WT197904-198008

main52902-92811iBU35,36,37..T2198008-198408

main52902-92813iBU30,33..M50198008-198408

main52902-92820iBU35,36..H50198008-198012

main52902-92821iBU35,36..H50198008-198012

SILLCROSS=WOOD

main52902-92822iBU35,36,37..TB..H50198012-198408

main52902-92823iBU35,36,37..TB..H50198012-198408

SILLCROSS=WOOD

main52902-92860iBU30..TB..06S197904-198008

main52902-92861iBU30,32,34..06S198008-198408

main52902-95400iBU30..TS197708-198008

52915STAY, SIDE BUMPER REAR, LH NO.1

main52915-95400iBU30..TS197708-198008

52916BRACKET, SIDE BUMPER REAR STAY

main52916-95200iBU30..06S197708-197805

52917STAY, SIDE BUMPER CENTER, NO.1

main52903-92870iBU40,41198204-198408

RH,FR

main52903-92870iBU40198204-198209

RH

main52903-92871iBU40,41198209-198408

RH,RR;RH,CTR

main52904-92870iBU40198204-198209

LH

main52904-92870iBU40,41198204-198408

LH,FR

main52904-92871iBU40,41198209-198408

LH,RR;LH,CTR

main52917-95400iBU30..TS197708-198008

RH

main52918-95400iBU30..TS197708-198008

LH

main52921-92800iBU30..TB197708-197904

FR

main52921-92801iBU30,31..T3¥1,490197904-198012

FR

sub52923-92820

main52921-92810iBU30..M50..WT197904-198008

FR,RR

main52921-92811iBU35,36,37..T2198008-198408

FR,RR

main52921-92812iBU30,33..M50198008-198408

FR,RR

main52921-92820iBU35,36..H50198008-198012

FR

main52921-92860iBU30..TB..06S197904-198008

FR

main52921-92861iBU30,32,34..06S198008-198408

FR

main52922-92800iBU30..TB197708-197904

CTR

main52922-92801iBU30,31,32,34..T3197904-198408

CTR

main52922-92810iBU30,33,35,36,37..T2197904-198408

CTR

main52922-92820iBU35,36,37..TB..H50198008-198408

SILLCROSS=WOOD,CTR

main52923-92800iBU30..TB197708-197904

RR

main52923-92801iBU3#..(T3,TW1)..TB197904-198008

RR

main52923-92802iBU20,21,23..275¥1,730198008-198408

RR

main52923-92802iBU35,36,37..TB..H50¥1,730198012-198408

FR

main52923-92820iBU30,32,34..H50..20T198012-198408

FR

main52923-92820iBU35,36,37..TB..H50198008-198408

RR

5293192800BRACKET, SIDE BUMPER, FRONT RH

main52931-92800¥2,020

9011708129

main90117-08129¥600

9017908146

main90179-08146¥180

9020108019

main90201-08019¥200

9111140820

main91111-40820¥180

9111141065

main91111-41065¥180

9161140820

main91611-40820¥130

9166140800

main91661-40800

9166140820

main91661-40820¥130

9411040800

main94110-40800¥120

9418040800

main94180-40800¥150

9451100800

main94511-00800¥100

9461110800

main94611-10800¥80

18 parts on this diagram · 3 diagrams in section
