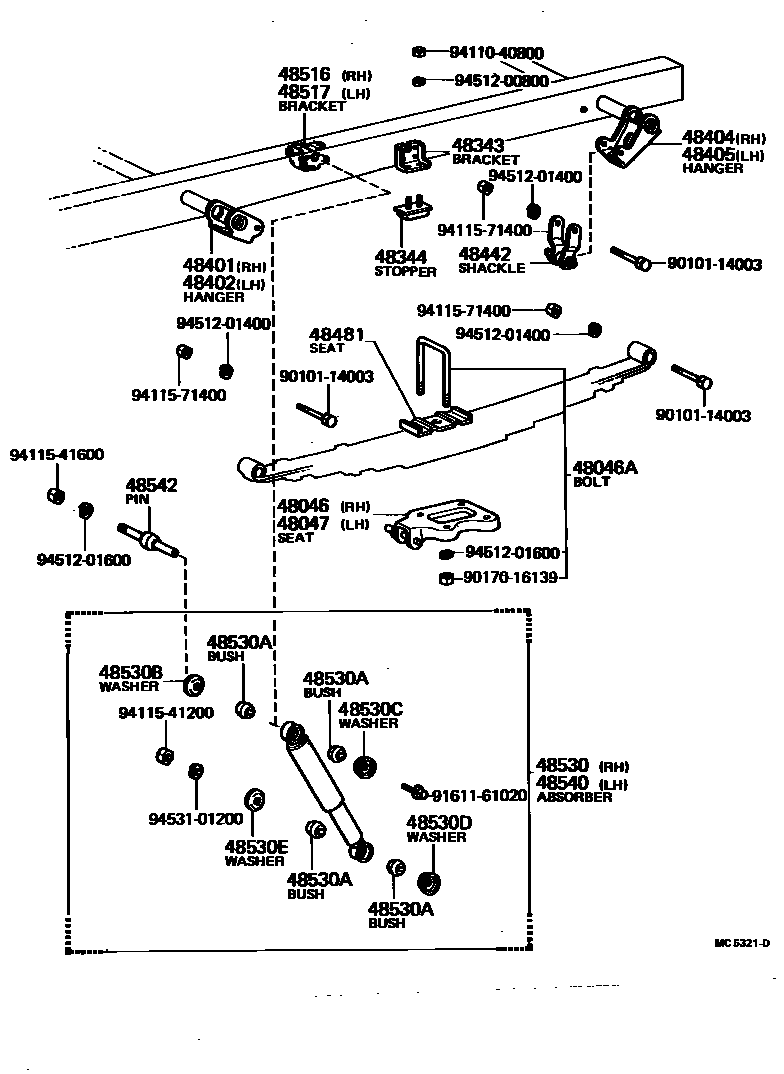

Toyota DYNA — REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0004 1 0006 1 0007 1 0009 1 0010 1 0011 1 0013 1 0016 1 0017 1 0018 1 0019 1 0020 1

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main42152-36030iBU40,41,5#¥9,100198204-198408

main48046-36090iBU20,22,30..ST¥3,520197708-198408

main48046-36100iBU20,21,23..DM3¥4,670197708-198408

main48046-36120iBU20..T3..03S..WT..ATP..DSL;BU20,21,22,23..(DM1,DM4,TB)..H50¥3,370197708-198408

sub48046-36121¥3,380

main48046-36140iBU20,22..T2,TW2¥4,950197708-198408

48046ABOLT, U(FOR REAR SPRING)

main90118-16060iBU20,22..TS¥1,830197708-198408

sub90118-16219¥3,470

main90118-16063iBU20,22..V¥1,900198008-198408

sub90118-16221¥3,480

main90118-16065iBU45,46;BU20,21,23..FTP;BU20,30,33,35,36,37..T2¥2,100197708-198408

sub90118-16226¥3,480

main90118-16065iBU45,46;BU20,21,23..FTP;BU20,30,33,35,36,37..T2¥2,100197711-198408

sub90118-16226¥3,480

main90118-16066iBU20..(DM1,TB)..H50..20T¥1,970197710-198408

sub90118-16235¥4,120

main90118-16066iBU2#..TB..H50..20T¥1,970198204-198408

sub90118-16235¥4,120

main90118-16105iBU30..ST¥3,580197710-198408

sub90118-16230¥3,240

main90118-16119iBU2#..TB..H50..20T¥1,980197710-198408

sub90118-16228¥3,170

main90118-16119iBU25;BU20..(DM1,TB)..H50;BU20..T3..03S..WT..ATP..DSL¥1,980197708-198408

sub90118-16228¥3,170

main90118-16154iBU20,22..DTP¥2,620197710-198408

sub90117-16007¥2,550

main90118-16154iBU20,22..DTP¥2,620197708-198408

sub90117-16007¥2,550

main90118-16156iBU20,22..T2,TW2¥2,980197708-198408

sub90118-16222¥3,250

main90118-16157iBU20,21,23..DM3¥1,950197708-198408

sub90118-16227¥2,740

main90118-16157iBU31..30T¥1,950197904-198408

sub90118-16227¥2,740

main90118-16157iBU31..30T¥1,950197904-198008

sub90118-16227¥2,740

main90118-16164iBU20..CTP¥3,300197711-198408

sub90118-16225¥3,370

main90118-16164iBU30..WT..20T¥3,300197711-198408

sub90118-16225¥3,370

main90118-18199iBU40,41,5#¥5,500198204-198408

sub90118-18211¥4,920

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main42152-36030iBU40,41,5#¥9,100198204-198408

main48047-36090iBU20,30..ST¥3,610197708-198408

main48047-36100iBU20,21..BTP¥4,810197708-198408

main48047-36120iBU20,21,22,23..T3..WT¥3,370197708-198408

sub48047-36121¥3,380

main48047-36140iBU20..T2,TW2¥5,400197708-198408

48343BRACKET, REAR AXLE CUSHION

main48343-36010iBU20,22,30..ST197708-198408

48344STOPPER, BUMPER, REAR

main48308-36030iBU20..T2197708-197904

main48308-36031iBU20,22..M50..WT¥4,520197904-198408

main48344-36040iBU45,46;BU20,22,30..ST¥2,100197708-198408

main48344-36050iBU30..T3..WT¥3,140197708-198408

main48344-36090iBU30,33,35,36,37..T2¥3,500197904-198408

main48344-36100iBU31,36,37..275,30T¥3,180197904-198408

main48344-36110iBU25;BU20..(DM1,TB)..H50;BU20..T3..03S..WT..ATP..DSL¥1,050197708-198008

main48344-36130iBU40,41,5#¥7,000198204-198408

sub48344-36190¥6,300

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48414-36060iBU20,22,30..ST197708-198408

main48414-36070iBU20..(DM1,TB)..H50;BU20..T3..03S..WT..ATP..DSL197708-198104

main48414-36071iBU2#..(DM1,TB)..H50198104-198408

main48414-36080iBU20..DM3197708-198104

main48414-36081iBU20,21,23..BTP198104-198408

main48414-36090iBU3#,45,46..WT¥6,200197708-198408

main48414-36100iBU20..T2,TW2197708-198104

main48414-36101iBU20,22..M50..WT198104-198408

main48414-36120iBU25197803-198008

main48414-36150iBU40,41,5#¥20,300198204-198408

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48414-36060iBU20,22,30..ST197708-198408

main48414-36070iBU20..(DM1,TB)..H50;BU20..T3..03S..WT..ATP..DSL197708-198104

main48414-36071iBU2#..(DM1,TB)..H50198104-198408

main48414-36090iBU20..CTP¥6,200197708-198408

main48414-36120iBU25197803-198008

main48414-36150iBU40,41,5#¥20,300198204-198408

main48415-36020iBU20..DM3197708-198104

main48415-36021iBU20,21,23..DM3198104-198408

main48415-36030iBU20..T2,TW2197708-198104

main48415-36031iBU20,22..M50..WT198104-198408

48404BRACKET SUB-ASSY, REAR SPRING, REAR RH

main48416-36080iBU20,22,30..ST¥3,620197708-198408

main48416-36090iBU20..T3..03S..WT..ATP..DSL;BU20,21,22,23..(DM1,TB)..H50197708-198408

main48416-36100iBU20,21,23..DM3¥7,000197708-198408

main48416-36110iBU20..CTP¥8,000197708-198408

main48416-36120iBU20,22..T2,TW2197708-198408

main48416-36140iBU25197803-198008

main48416-36160iBU40,41,5#¥21,500198204-198408

48405BRACKET SUB-ASSY, REAR SPRING, REAR LH

main48416-36080iBU20,22,30..ST¥3,620197708-198408

main48416-36090iBU20..T3..03S..WT..ATP..DSL;BU20,21,22,23..(DM1,TB)..H50197708-198408

main48416-36110iBU20..CTP¥8,000197708-198408

main48416-36140iBU25197803-198008

main48416-36160iBU40,41,5#¥21,500198204-198408

main48417-36030iBU20,21,23..BTP¥6,800197708-198408

main48417-36040iBU20,22..T2,TW2197708-198408

48442SHACKLE, SPRING, NO.2

main48042-36020iBU2#,30¥5,400197708-197901

sub48042-36021¥6,000

main48042-36021iBU2#,3#,45,46¥6,000197901-198408

main48042-37901iBU40,41,5#¥4,790198204-198408

48481SEAT, REAR SPRING, UPPER

main48481-36020iBU25;BU20..T3..03S..WT..ATP..DSL;BU20,21,23..(DM1,DM4,TB)..H50¥2,660197708-198408

main48481-36030iBU20,21,23..DM3197708-198408

main48481-36040iBU20,21,23,36,37..CTP,FTP,GTP¥670197708-198408

main48481-37011iBU40,41,5#¥2,630198204-198408

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48505-36020iBU20..T3..03S..WT..ATP..DSL;BU20,21,22,23..(DM1,TB)..H50197708-198408

main48516-36020iBU20,22,30..ST¥1,820197708-198408

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48506-36020iBU20..T3..03S..WT..ATP..DSL;BU20,21,22,23..(DM1,TB)..H50197708-198408

main48516-36020iBU20,22,30..ST¥1,820197708-198408

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-39275iBU30..WT¥7,400197708-197910

sub48531-39276¥7,000

main48531-39276iBU30,32,33,34,35,36,37,45,46..WT¥7,000197910-198408

sub48531-39277¥7,000

main48531-39285iBU20,30..ST¥6,800197708-197910

sub48531-39455¥7,200

main48531-39295iBU20..T2,TW2¥7,400197708-198008

sub48531-39445¥7,000

main48531-39445iBU20,21,23..DM3;BU20,22..M50..WT¥7,000197910-198408

sub48531-39446¥7,000

main48531-39455iBU20,22,30..ST¥7,200197910-198408

main48531-39515iBU40,41,5#¥7,000198204-198408

sub48531-39516¥7,000

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16007iBU2#,3#,4#,5#¥260197708-198408

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03003iBU30,32,33,34,35,36,37,4#,5#..WT¥110197708-198408

main90948-03004iBU20,22,30..ST¥200197708-198408

main90948-03007iBU20,21,23..BTP¥110197904-198408

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03004iBU2#,3#,4#,5#..WT¥200197708-198408

main90948-03007iBU20,22,30..ST¥110197708-198408

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03003iBU2#,3#¥110197708-198408

main90948-03004iBU40,41,5#¥200198204-198408

main90948-03007iBU20..T2,TW2¥110197708-198408

PNC 48530 OR 48540 = MARK 48531-36050

main90948-03007iBU20,21,23..BTP¥110198008-198408

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iBU2#,3#,45,46¥200197708-198408

main90948-03007iBU40,41,5#¥110198204-198408

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-39275iBU30..WT¥7,400197708-197910

sub48531-39276¥7,000

main48531-39276iBU20,21,23..CTP,FTP¥7,000197910-198408

sub48531-39277¥7,000

main48531-39285iBU20,30..ST¥6,800197708-197910

sub48531-39455¥7,200

main48531-39295iBU20..BTP¥7,400197708-198008

sub48531-39445¥7,000

main48531-39445iBU20,21,23..BTP¥7,000197910-198408

sub48531-39446¥7,000

main48531-39455iBU20,22,30..ST¥7,200197910-198408

main48531-39515iBU40,41,5#¥7,000198204-198408

sub48531-39516¥7,000

48542PIN, SHOCK ABSORBER UPPER PIVOT, REAR

main48542-36020iBU20,22,30..ST¥2,110197708-198408

sub48542-37030

main48542-36040iBU20,23..DM3;BU20..T2,TW2197708-198408

9010114003

main90101-14003¥710

9017016139

main90170-16139¥300

9161161020

main91611-61020¥240

9411040800

main94110-40800¥120

9411541200

main94115-41200¥300

9411541600

main94115-41600¥210

9411571400

main94115-71400¥160

9451200800

main94512-00800¥80

9451201400

main94512-01400¥100

9451201600

main94512-01600¥200

9453101200

main94531-01200¥80

32 parts on this diagram · 14 diagrams in section
