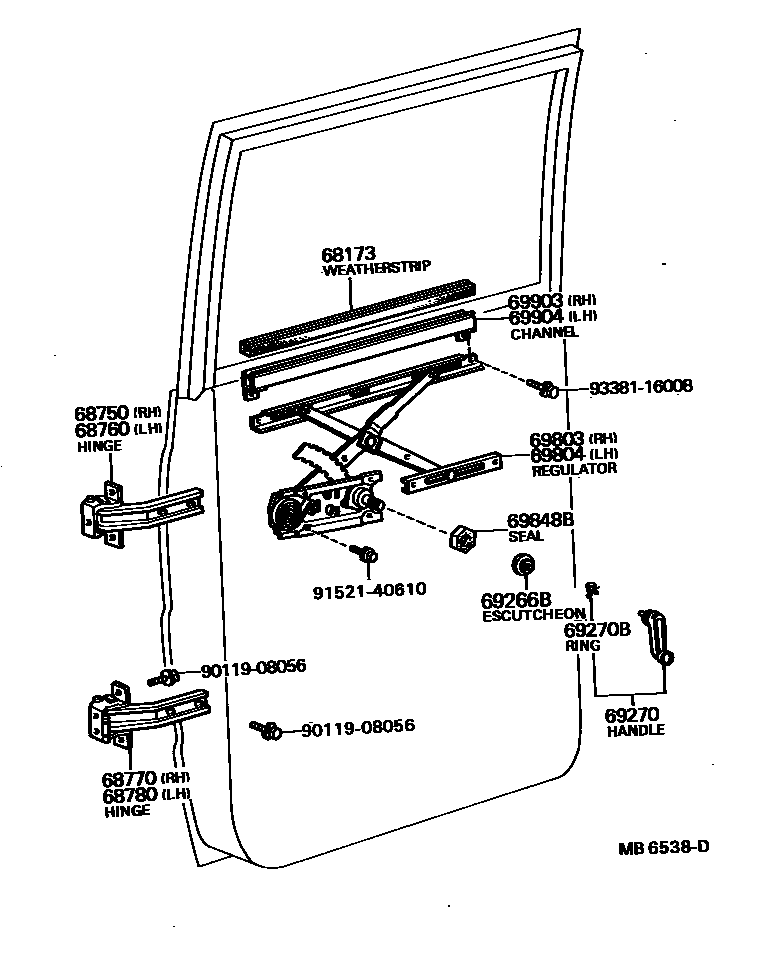

Toyota DYNA — REAR DOOR WINDOW REGULATOR & HINGE

68173WEATHERSTRIP, REAR DOOR GLASS CHANNEL

main69981-95700iBU20,30..TS..06S¥1,010197708-197711

sub69981-95600¥860

main69981-95701iBU20,22,30,32,34..TR..06S¥700197711-198408

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-95400iBU20,22,30,32,34..TR..06S¥6,900198107-198408

main68750-95A00iBU20,30..TR..06S¥6,800197708-198107

sub68750-95400¥6,900

68760HINGE ASSY, REAR DOOR, UPPER LH

main68750-95400iBU20,22,30,32,34..TR..06S¥6,900198107-198408

main68750-95A00iBU20,30..TR..06S¥6,800197708-198107

sub68750-95400¥6,900

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-95010iBU20,30..TR..06S¥13,200197812-198107

sub68770-95400¥13,300

main68770-95400iBU20,22,30,32,34..TR..06S¥13,300198107-198408

main68770-95A00iBU20,30..TS..06S197708-197812

sub68770-95010¥13,200

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-95010iBU20,30..TR..06S¥13,200197812-198107

sub68780-95400¥13,300

main68780-95400iBU20,22,30,32,34..TR..06S¥13,300198107-198408

main68780-95A00iBU20,30..TS..06S¥13,100197708-197812

sub68780-95010¥13,200

69266BESCUTCHEON, DOOR REGULATOR HANDLE(FOR REAR DOOR)

main69272-30010iBU20,22,30,32,34..TR..06S¥180197708-198408

69270HANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-95404iBU20,30..TR..06S¥810197708-198204

main69260-95405iBU20,22,32,34..TR..06S¥1,530198204-198408

sub69260-25010¥1,620

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01274iBU20,22,30,32,34..TR..06S¥160197708-198408

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69830-95A00iBU20,22,30,32,34..TR..06S¥6,200197708-198408

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69840-95A00iBU20,22,30,32,34..TR..06S¥6,200197708-198408

69848BSEAL, WINDOW REGULATOR HOLE(FOR REAR DOOR)

main69848-95700iBU20,22,30,32,34..TR..06S¥410197708-198408

69903CHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69901-95700iBU20,30..TS..06S¥840197708-197712

main69901-95701iBU20,22,30,32,34..TR..06S¥880197712-198408

69904CHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69901-95700iBU20,30..TS..06S¥840197708-197712

main69901-95701iBU20,22,30,32,34..TR..06S¥880197712-198408

9011908056

main90119-08056

9152140610

main91521-40610¥110

9338116008

main93381-16008¥120

16 parts on this diagram · 1 diagram in section
