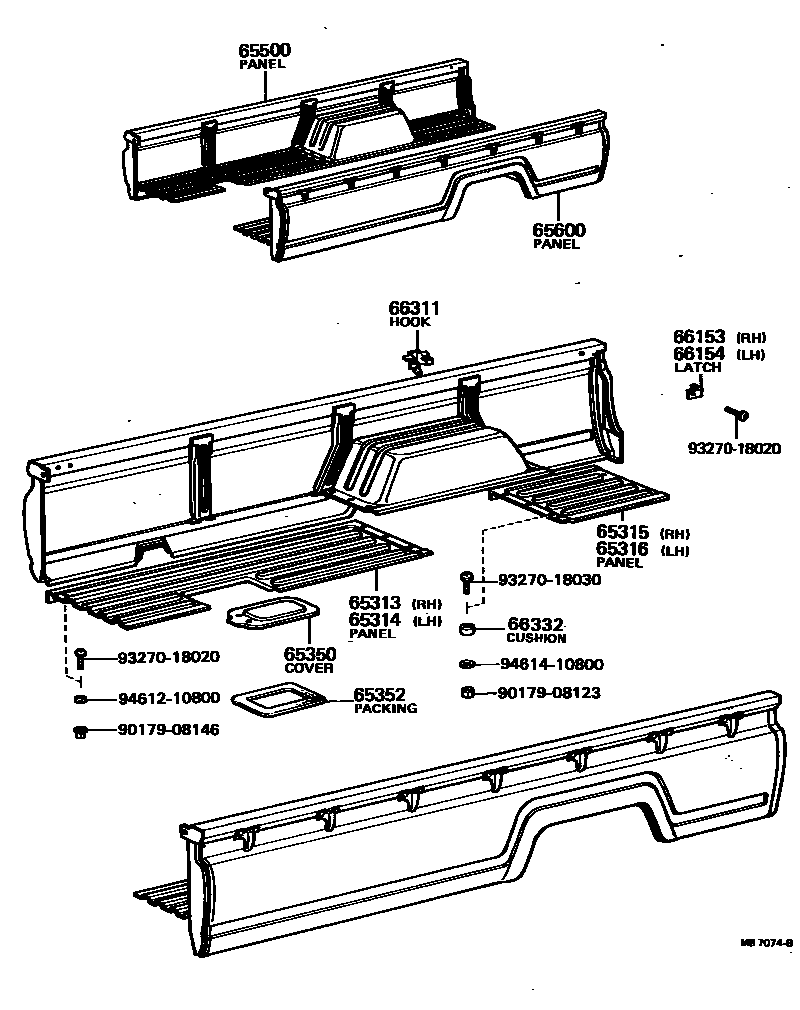

Toyota DYNA — REAR BODY SIDE PANEL

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0011 1 0012 1

65313PANEL, FLOOR FRONT CORNER, RH

main65313-95404iBU20..T1197708-198408

main65313-95405iBU20..TS..06S¥8,500197708-198408

65314PANEL, FLOOR FRONT CORNER, LH

main65314-95403iBU20..T1197708-198408

main65314-95404iBU20..TS..06S¥8,500197708-198408

65315PANEL, FLOOR REAR CORNER, RH

main65315-95405iBU20..T1,TW1¥8,800197708-198408

sub65315-25010¥9,000

65316PANEL, FLOOR REAR CORNER, LH

main65316-95405iBU20..T1,TW1¥8,800197708-198408

sub65316-25010¥9,000

65350COVER ASSY, BATTERY SERVICE HOLE

main65305-95402iBU20,22..T1¥5,100197708-198408

65352PACKING, BATTERY SERVICE HOLE COVER

main65307-95A01iBU20..TS..20T198008-198209

main65352-95400iBU20..T1¥1,090197708-198008

sub65307-95A01

main65352-95A01iBU20,22..TS..20T¥1,070198209-198408

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-92236iBU20,22..06S..WT198204-198408

main65500-92712iBU20..T3..TB¥216,000197708-197904

sub65500-92713

main65500-92713iBU20..T3..TB197904-197912

main65500-92714iBU20..T3..TB..20T¥251,000197912-198008

sub65500-92715

main65500-92715iBU20..T3..20T198008-198204

main65500-92717iBU2#..T3..20T198204-198408

main65500-92740iBU20..T2¥191,000197708-197712

sub65500-92741¥177,000

main65500-92741iBU20..T2¥177,000197712-197904

sub65500-92742

main65500-92742iBU20..M50..WT..20T197904-197912

main65500-92743iBU20..M50..WT..20T197912-198008

main65500-92744iBU20..M50..WT..20T198008-198204

main65500-92745iBU20,22..M50..WT..20T198204-198408

main65500-92750iBU20..06S..WT197904-197912

main65500-92751iBU20..06S..WT197912-198008

main65500-92752iBU20..06S..WT198008-198204

main65500-92760iBU20..275¥251,000197912-198008

sub65500-92761

main65500-92761iBU20..275198008-198204

main65500-92762iBU21,23..275198204-198408

main65500-92802iBU30..TB197708-197904

main65500-92803iBU3#..02S,03S197904-197912

main65500-92804iBU3#..02S,03S197912-198008

main65500-92806iBU30..20T198008-198204

main65500-92807iBU30,32,33,34..20T198204-198408

main65500-92821iBU35,36198008-198204

main65500-92822iBU36,37,40,41198204-198408

main65500-92860iBU30..TB..06S197904-197912

main65500-92861iBU30..TB..06S197912-198008

main65500-92862iBU30..06S198008-198204

main65500-92863iBU32,34..06S198204-198408

main65500-95411iBU20..T3..TS¥157,000197708-198008

main65500-95415iBU20..T1197708-198008

main65500-95416iBU20..TS..06S197708-198008

main65500-95417iBU30..TS197708-198008

main65500-95420iBU20,22..TS..20T198008-198408

main65500-95421iBU20,22..TS..06S198008-198408

main65501-96308iBU20..L2..TSK197708-197904

main65501-96309iBU20..L1..TSK197708-198204

main65501-96310iBU20..L2..TSK197904-198204

main65501-96313iBU21,23..DM1..TSK¥121,000198204-198408

main65501-96314iBU21,23..DM4..TSK198204-198408

main65510-93102iBU20..L1..KKT197708-198204

main65510-93103iBU21,23..DM4..KKT198204-198408

main65530-93102iBU20,21,23..L2..DM1..KKT197708-198408

main65530-93300iBU20..DM3197904-198008

main65530-93301iBU20,21,23..DM3198008-198408

65600PANEL ASSY, REAR BODY SIDE, LH

main65501-96308iBU20..L2..TSK197708-197904

main65501-96309iBU20..L1..TSK197708-198204

main65501-96310iBU20..L2..TSK197904-198204

main65501-96313iBU21,23..DM1..TSK¥121,000198204-198408

main65501-96314iBU21,23..DM4..TSK198204-198408

main65520-93102iBU20..L1..KKT197708-198204

main65520-93103iBU21,23..DM4..KKT198204-198408

main65530-93300iBU20..DM3197904-198008

main65530-93301iBU20,21,23..DM3198008-198408

main65540-93102iBU20,21,23..L2..DM1..KKT197708-198408

main65600-92236iBU20,22..06S..WT198204-198408

main65600-92712iBU20..T3..TB¥216,000197708-197904

sub65600-92713

main65600-92713iBU20..T3..TB197904-197912

main65600-92714iBU20..T3..TB..20T¥251,000197912-198008

sub65600-92715

main65600-92715iBU20..T3..20T198008-198204

main65600-92717iBU2#..T3..20T198204-198408

main65600-92740iBU20..T2¥191,000197708-197712

sub65600-92741¥177,000

main65600-92741iBU20..T2¥177,000197712-197904

sub65600-92742

main65600-92742iBU20..M50..WT..20T197904-197912

main65600-92743iBU20..M50..WT..20T197912-198008

main65600-92744iBU20..M50..WT..20T198008-198204

main65600-92745iBU20,22..M50..WT..20T198204-198408

main65600-92750iBU20..06S..WT197904-197912

main65600-92751iBU20..06S..WT197912-198008

main65600-92752iBU20..06S..WT198008-198204

main65600-92760iBU20..275¥251,000197912-198008

sub65600-92761

main65600-92761iBU20..275198008-198204

main65600-92762iBU21,23..275198204-198408

main65600-92802iBU30..TB197708-197904

main65600-92803iBU3#..02S,03S197904-197912

main65600-92804iBU3#..02S,03S197912-198008

main65600-92806iBU30..20T198008-198204

main65600-92807iBU30,32,33,34..20T198204-198408

main65600-92821iBU35,36198008-198204

main65600-92822iBU36,37,40,41198204-198408

main65600-92860iBU30..TB..06S197904-197912

main65600-92861iBU30..TB..06S197912-198008

main65600-92862iBU30..06S198008-198204

main65600-92863iBU32,34..06S198204-198408

main65600-95409iBU20..T3..TS¥157,000197708-198008

main65600-95411iBU20..T1197708-198008

main65600-95412iBU20..TS..06S197708-198008

main65600-95413iBU30..TS197708-198008

main65600-95416iBU20,22..TS..20T198008-198408

main65600-95417iBU20,22..TS..06S198008-198408

66153LATCH, TAIL GATE FEMALE, RH

main66153-95012iBU20,22..T1,TW1¥460197708-198408

main66201-93101iBU20..DM1..KKT197708-198008

main66201-93102iBU20,21,23..(DM1,DM3)..KKT198008-198408

main66201-93103iBU21,23..DM4..KKT198204-198408

main66201-93300iBU20..DM3197904-198008

main66201-96302iBU20..TSK197708-198008

main66201-96303iBU20,21,23..DM1..TSK¥14,800198008-198408

main66201-96304iBU21,23..DM4..TSK¥14,800198204-198408

66154LATCH, TAIL GATE FEMALE, LH

main66153-95012iBU20,22..T1,TW1¥460197708-198408

main66202-93101iBU20..DM1..KKT197708-198008

main66202-93102iBU20,21,23..(DM1,DM3)..KKT198008-198408

main66202-93103iBU21,23..DM4..KKT198204-198408

main66202-93300iBU20..DM3197904-198008

main66202-96301iBU20..TSK197708-198008

main66202-96302iBU20,21,23..DM1..TSK¥14,800198008-198408

main66202-96303iBU21,23..DM4..TSK¥14,800198204-198408

66311HOOK, ROPE

main66311-95400iBU20,22,30..TS¥450197708-198408

66332CUSHION, RUBBER

main90540-09012iBU20,22..TS..06S¥180198204-198308

sub66332-95A00¥230

main90540-09060iBU20,22..TS..20T¥170197708-198408

9017908123

main90179-08123¥160

9017908146

main90179-08146¥180

9327018020

main93270-18020¥200

9327018030

main93270-18030¥130

9461210800

main94612-10800¥80

9461410800

main94614-10800¥120

18 parts on this diagram · 11 diagrams in section
