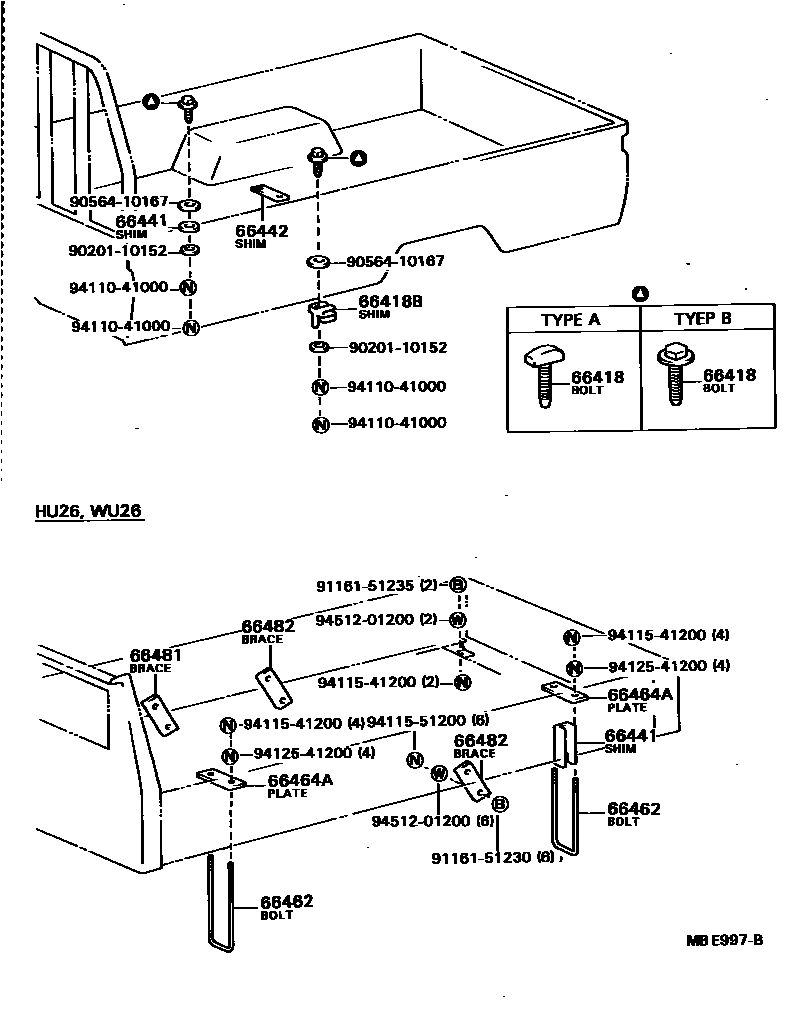

Toyota DYNA — REAR BODY MOUNTING

0001 1 0002 1 0003 1 0004 1 0006 1 0007 1 0008 1 0009 1

66418BOLT, MOUNTING

main66418-92720iBU30,33,35,36,37..T2¥670197708-198408

main66418-95400iBU20,22..T1,TW1,TW2¥520197708-198408

main90119-10004iBU20,22..T1,TW1,TW2¥210197708-198408

sub90119-10091¥260

66418BSHIM, MOUNTING

main66439-95400iBU20,22..T1¥780197708-198408

main66443-92721iBU30,33,35,36,37..T2¥890197708-198408

66441SHIM, MOUNTING, NO.1

main66441-92220iBU20,22..TS..06S¥1,080198106-198408

sub90564-15142¥530

main90564-15142iBU30..TS¥530197708-198008

OD=70

66442SHIM, MOUNTING, NO.2

main66443-95011iBU20,22..TS..06S198106-198408

main66443-95405iBU30..TS¥680197708-198008

66462BOLT, U(FOR MAIN SILL)

main66461-92700iBU20,22,30..TB..ST¥1,830197708-198408

L=373

sub90117-12023¥1,900

main66461-92820iBU30,32,34,35,36,37,40..TB..H50..03S¥1,800197708-198408

L=363

main66462-92700iBU20,22..TB..ST¥1,780197708-198408

L=354

sub90117-12021¥1,880

main66462-92820iBU30,32,34,35,36,37,40,41..TB..H50..03S¥1,670197708-198408

L=315

main66463-92700iBU20,22,30..TB..ST¥1,750197708-198408

L=325

sub90117-12024

main66463-92707iBU41¥1,820198304-198408

L=336

main66463-92707iBU20,22..TB..ST¥1,820197708-198408

COLD SPEC,L=330

main90117-12003iBU20..T3..TS¥1,830197708-198008

RR

main90117-12004iBU30..06S¥1,830197708-197710

CTR

sub90117-12003¥1,830

main90117-12005iBU20..T3..TS197911-198008

CTR

main90117-12005iBU20..T3..TS197708-197911

FR,CTR

main90117-12005iBU30..06S197708-197710

FR

main90117-12009iBU30..TS¥2,410197710-198008

CTR

main90117-12010iBU30..TS197710-198008

FR

main90117-12013iBU20..T3..TS197911-198008

FR

66464APLATE, U BOLT

main51875-95011iBU20..T3..TS¥720197708-198008

main66466-92580iBU20,22..TB..ST¥910197708-198408

66481BRACE, SILL TO FRAME, RH

main66481-95406iBU30..TS¥1,280197710-198008

main66483-92702iBU20,22..TB..ST197708-198408

main66483-92802iBU30..TB197708-198008

main66483-92803iBU30,32,34,35,36,37,40,41..TB..H50198008-198408

main66483-92870iBU20..T3..TS197708-198008

66482BRACE, SILL TO FRAME, LH

main66481-95406iBU30..TS¥1,280197710-198408

main66483-92702iBU20,22..TB..ST197708-198408

main66483-92802iBU30..TB197708-198008

main66483-92803iBU30,32,34,35,36,37,40,41..TB..H50198008-198408

main66483-92870iBU30..06S197708-198008

9020110152

main90201-10152¥210

9056410167

main90564-10167¥630

9116151230

main91161-51230¥180

9116151235

main91161-51235¥180

9411041000

main94110-41000¥160

9411541200

main94115-41200¥300

9411551200

main94115-51200¥170

9412541200

main94125-41200¥160

9451201200

main94512-01200¥100

17 parts on this diagram · 8 diagrams in section
