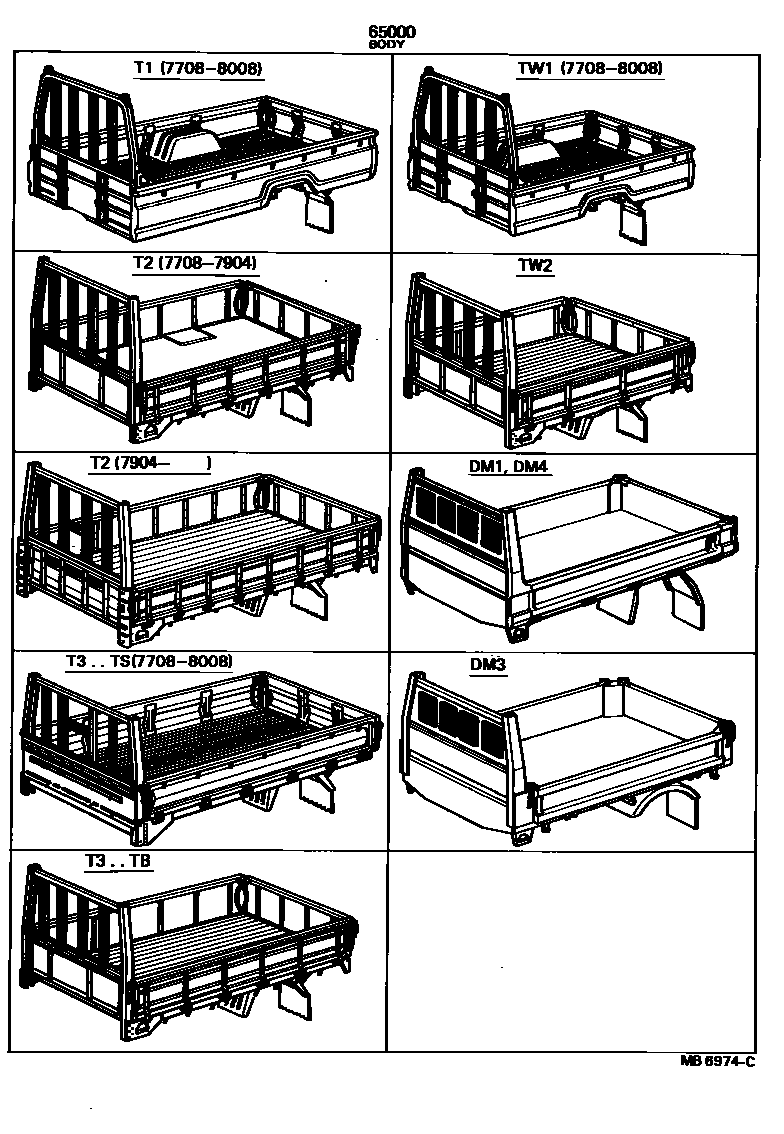

Toyota DYNA — REAR BODY ASSEMBLY

0001 1 0003 1

65000BODY ASSY, REAR

main65000-92705iBU20..TB..ST¥1,007,000197708-198008

sub65000-92707¥1,009,000

main65000-92707iBU20..TB..ST¥1,009,000198008-198204

sub65000-92717

main65000-92708iBU20..TB..ST¥1,056,000197708-198008

COLD SPEC

sub65000-92716¥1,058,000

main65000-92716iBU20..TB..ST¥1,058,000198008-198204

COLD SPEC

sub65000-92719

main65000-92717iBU20,22..TB..ST198204-198408

main65000-92719iBU20,22..TB..ST198204-198408

COLD SPEC

main65000-92726iBU20..T3..WT..20T¥973,000197708-198008

sub65000-92727¥975,000

main65000-92727iBU20..TB..H50..20T¥975,000198008-198204

sub65000-92728

main65000-92728iBU2#..TB..H50..20T198204-198408

main65000-92740iBU20..T2197708-197904

main65000-92741iBU20..M50..WT..20T¥963,000197904-198008

sub65000-92743¥964,000

main65000-92743iBU20..M50..WT..20T¥964,000198008-198204

sub65000-92744

main65000-92744iBU20,22..M50..WT..20T198204-198408

main65000-92750iBU20..06S..WT¥894,000197904-198008

sub65000-92752¥895,000

main65000-92752iBU20..06S..WT¥895,000198008-198204

sub65000-92753

main65000-92753iBU20,22..06S..WT198204-198408

main65000-92760iBU20..275¥1,169,000197912-198008

sub65000-92761¥1,169,000

main65000-92761iBU20..275¥1,169,000198008-198204

sub65000-92762

main65000-92762iBU21,23..275198204-198408

main65000-92801iBU30..ST197708-198008

main65000-92802iBU30..ST197802-197904

W/OVER FENDER

main65000-92803iBU30..H50..20T198008-198201

main65000-92804iBU30,32,34..H50..20T198201-198408

main65000-92805iBU32,34..20T198204-198408

W/TORSION SPRING

main65000-92812iBU30..M50..WT197904-198008

main65000-92813iBU35,36,37..T2198008-198408

main65000-92814iBU30,33..M50198008-198408

main65000-92816iBU30,33198204-198408

W/TORSION SPRING

main65000-92817iBU36,37..H51198204-198408

W/TORSION SPRING

main65000-92822iBU30..H50..20T197708-198008

main65000-92823iBU30..WT..20T197802-197904

W/OVER FENDER

main65000-92824iBU35,36,37..TB..H50198008-198408

SILLCROSS=WOOD

main65000-92825iBU35,36,37..TB..H50198008-198408

main65000-92826iBU36,37..TB..H50198204-198408

W/TORSION SPRING

main65000-92835iBU40,41198209-198408

main65000-92847iBU30..25T197708-198204

main65000-92848iBU30..25T197802-197904

W/OVER FENDER

main65000-92860iBU30..TB..06S197904-198008

main65000-92865iBU30,32,34..06S198008-198408

main65000-92868iBU40,41198209-198408

W/TORSION SPRING

main65000-92877iBU40¥1,721,000198204-198209

sub65000-92835

main65000-92886iBU40¥1,842,000198204-198209

W/TORSION SPRING

sub65000-92868

main65000-92894iBU31..275197904-198008

main65000-92897iBU31..30T197904-198008

main65000-93102iBU20..L1..KKT197708-198204

main65000-93103iBU21,23..DM4..KKT198204-198408

main65000-93111iBU20..L2..KKT197708-198204

main65000-93112iBU21,23..DM1..KKT198204-198408

main65000-93300iBU20..DM3197904-198008

main65000-93301iBU20..DM3198008-198202

main65000-93302iBU20,21,23..DM3198202-198408

main65000-95431iBU20..T1197708-198008

main65000-95433iBU20..TS..06S197708-198008

main65000-95434iBU20..T3..TS197708-198008

main65000-95444iBU30..TS197708-198008

main65100-96315iBU20..L1..TSK197708-197904

main65100-96316iBU20..L2..TSK197708-197904

main65100-96318iBU20..L1..TSK197904-198008

main65100-96319iBU20..L2..TSK197904-198008

main65100-96320iBU20..L1..TSK198008-198204

main65100-96321iBU20..L2..TSK198008-198204

main65100-96323iBU21,23..DM1..TSK198204-198408

main65100-96324iBU21,23..DM4..TSK198204-198408

1 parts on this diagram · 2 diagrams in section
