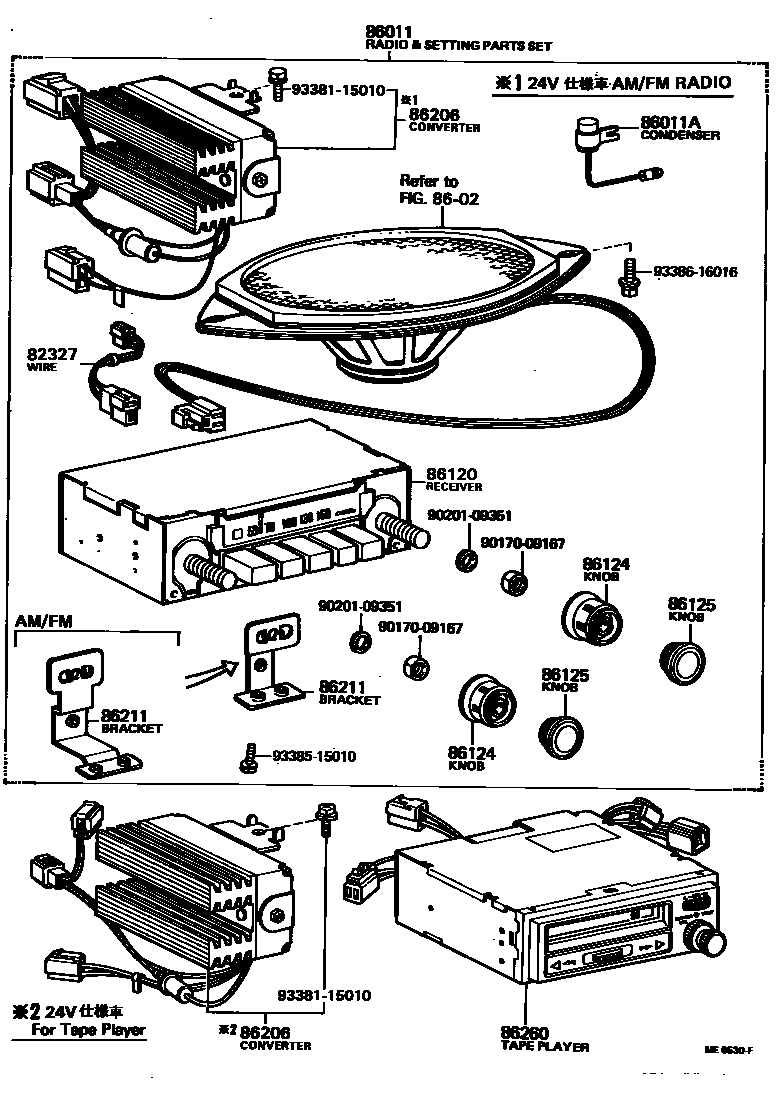

Toyota DYNA — RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

82327WIRE, TO RADIO INSTRATION

86011RADIO & SETTING PARTS SET

main86011-95400iBU20,21,22,23,30,31,32,33,34197708-198408

24V,AM 5-BUTTON

main86011-95402iBU20,21,22,23,30,31,32,33,34197708-198408

24V,AM/FM 5-BUTTON

86011ACONDENSER, RADIO SETTING

main90980-04011iBU2#,3#¥460197708-198008

main90980-04040iBU2#,3#,4#,5#¥1,030198008-198408

8602

86120RECEIVER ASSY, RADIO

main86120-95400iBU2#,3#,4#,5#¥28,100197708-198408

24V,AM 5-BUTTON

main86120-95401iBU2#,3#,4#,5#198204-198408

AM/FM 5-BUTTON

main86120-95A02iBU2#,3#197708-198204

AM/FM 5-BUTTON

86124KNOB, RADIO RECEIVER CONTROL

main86124-95A00iBU2#,3#,4#,5#¥740197708-198408

86125KNOB, RADIO RECEIVER SWITCH

main86125-95A00iBU2#,3#,4#,5#¥370197708-198408

86206CONVERTER SUB-ASSY, VOLTAGE

main86270-39015iBU2#,3#,4#,5#197708-198408

24V,TAPE PLAYER

main86270-39015iBU2#,3#,4#,5#198204-198408

24V,AM/FM RADIO

main86270-39025iBU2#,30,31197708-198204

24V,AM/FM RADIO

main86270-39035iBU35,36198008-198204

24V,AM/FM RADIO

86211BRACKET, RADIO, NO.1

main86211-95400iBU2#,30,31,32,33,34197708-198408

AM

main86211-95400iBU2#,3#,4#,5#198204-198408

AM/FM

main86211-95401iBU2#,30,31197708-198204

AM/FM

main86211-95402iBU35,36198008-198408

AM

main86211-95403iBU35,36198008-198204

AM/FM

86260TAPE PLAYER ASSY

main86260-14090iBU2#,30197708-197904

main86260-95A01iBU2#,3#,4#,5#197904-198408

9017009167

main90170-09167¥160

9020109351

main90201-09351¥120

9338115010

main93381-15010¥60

9338515010

main93385-15010¥70

9338616016

main93386-16016¥80

15 parts on this diagram · 2 diagrams in section
