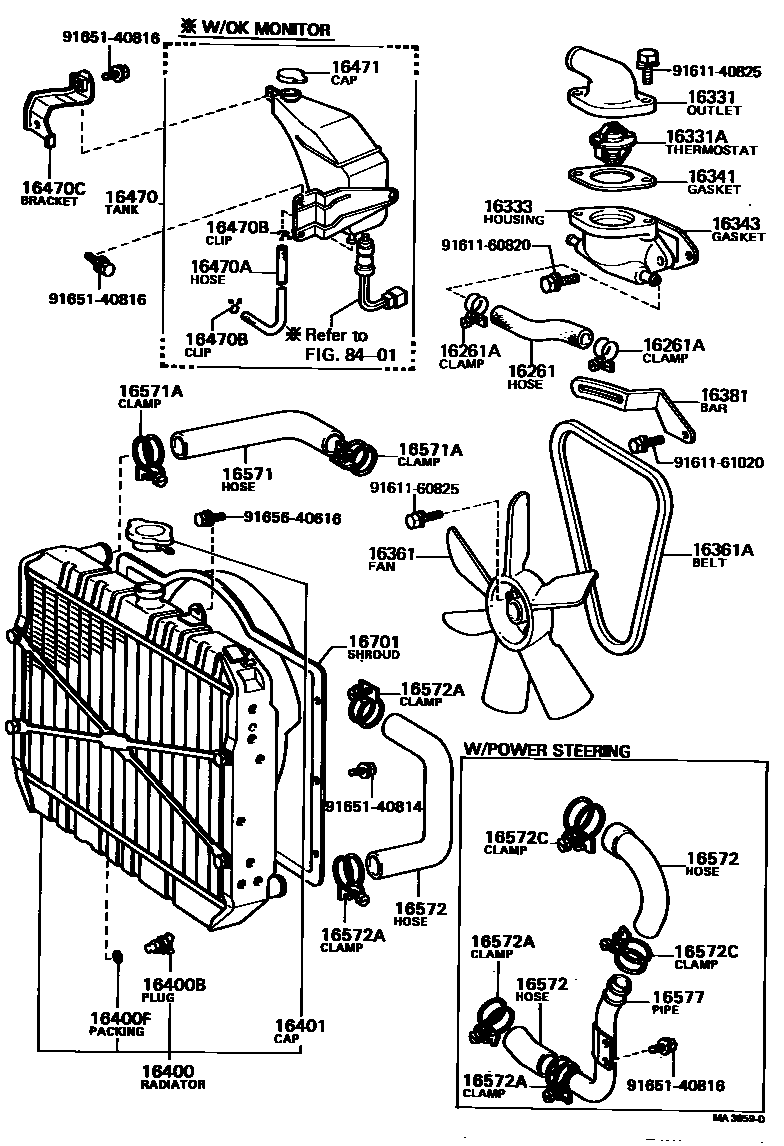

Toyota DYNA — RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

16261HOSE, WATER BY-PASS

main16261-56011iB,2B,3B..BU2#,3#¥1,130197708-198204

sub16261-56012¥770

main16261-56012iB,3B..BU2#,3#,4#,5#¥770198204-198408

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90044-60053iB,2B,3B..BU2#,3#,4#,5#¥230197708-198408

16331OUTLET, WATER

main16331-56010iB,2B..BU2#,3#¥1,860197708-198008

main16331-56020iB,3B..BU2#,3#,4#,5#¥3,950198008-198408

16331ATHERMOSTAT

main90916-03039iB,2B,3B..BU2#,3#¥3,370197708-198010

sub90916-03058¥3,370

main90916-03045iB,2B,3B..BU2#,3#¥3,370197811-198010

sub90916-03059¥3,090

main90916-03058iB,3B..BU20,3#¥3,370198010-198204

sub90916-03066¥3,090

main90916-03059iB,3B..BU2#,3#,4#,5#¥3,090198010-198408

sub90916-03080¥2,790

main90916-03066iB,3B..BU2#,3#,4#,5#¥3,090198204-198408

sub90916-03077¥3,070

16333HOUSING, WATER OUTLET

main16333-56011iB..BU2#,30¥4,140197708-197811

sub16333-56012¥4,120

main16333-56012iB,2B..BU2#,3#¥4,120197811-198008

main16333-56020iB,2B..BU3#¥4,730197908-198008

W/PS

main16333-56040iB,3B..BU20,3#¥5,700198008-198204

main16333-56050iB,3B..BU2#,3#,4#,5#¥7,100198204-198408

16341GASKET, WATER OUTLET

main16341-51010iB,2B..BU2#,3#¥370197708-198008

sub16341-51011¥390

main16341-56010iB..BU2#,30¥350197802-197811

sub16341-51010¥370

main16341-56020iB,3B..BU2#,3#,4#,5#¥270198008-198408

sub16341-56021¥320

16343GASKET, WATER OUTLET HOUSING

main16343-56012iB,2B..BU2#,3#¥530197708-198008

sub16343-56020¥520

main16343-56020iB,3B..BU2#,3#,4#,5#¥520198008-198408

sub16343-56022¥510

16361FAN

main16361-47010i2B..BU31¥5,600197904-198008

6 BLADES,OD=410

main16361-56030iB..BU20,25,30¥6,200197708-198408

6 BLADES,OD=380

main16361-56040iB..BU22,33¥8,400197708-198408

W/COOLER,6 BLADES,OD=410

main16361-56040iB..BU22,33¥8,400198204-198408

6 BLADES,OD=410

main16361-56050i3B..BU36,37,4#,5#¥6,300197908-198408

6 BLADES,OD=380

main16361-56050iB..BU20..WT;B..BU20..DTP;B..BU20..TR..ST;B,3B..BU21,25,30¥6,300197908-198302

W/PS,6 BLADES,OD=380

main16361-56060iB..BU22..DTP;B..BU22,33..T1,T2,T3,TW2¥6,800197908-198408

W/PS,6 BLADES,OD=410

main16361-56060iB..BU22..DTP;B..BU22,33..T1,T2,T3,TW2¥6,800198204-198408

W/PS&COOLER,6 BLADES,OD=410

main16361-56060iB..BU30¥6,800197908-198204

W/PS & COOLER,6 BLADES,OD=410

main16361-56060i3B..BU36,37,4#,5#¥6,800198204-198408

COOLER,6BLADES,OD=410

main16361-56060i3B..BU23..FTP¥6,800198302-198408

6 BLADES,OD=410

16361ABELT, V(FOR FAN & ALTERNATOR)

main99323-01175iB..BU2#,30¥1,330197807-197904

main99343-01175iB,2B..BU2#,3#¥1,820197904-198008

main99343-01195iB,3B..BU2#,3#,4#,5#¥1,820198008-198408

main99523-11176iB..BU2#,30¥1,330197708-197807

sub99323-01175¥1,330

16381BAR, FAN BELT ADJUSTING

main16381-56020iB,2B..BU2#,3#¥1,470197708-198008

main16381-56030iB,3B..BU2#,3#,4#,5#¥1,900198008-198408

16400RADIATOR ASSY

main16400-56040iB..BU20,30¥50,600197708-197801

sub16400-56042¥99,800

main16400-56041iB..BU20,22,25,30,33¥48,600197801-198408

sub16400-56042¥99,800

main16400-56060i2B..BU31¥91,000197904-198008

sub16400-56090¥91,000

main16400-56070iB..BU22..DTP;B..BU22,33..T1,T2,T3,TW2¥49,000197908-198408

W/PS

sub16400-56140

main16400-56080i2B..BU31197908-198008

W/PS

main16400-56120iB..BU35198008-198204

sub16400-78010

main16400-58030i3B..BU36,37,4#,5#¥58,000198009-198408

sub16400-58080

main16400-58060i3B..BU21,32¥128,000198204-198302

sub16400-58061¥128,000

main16400-58061i3B..BU23..BTP;3B..BU23,34..DMP,TR¥128,000198302-198408

main16400-58070i3B..BU21,32¥124,000198204-198302

W/PS

sub16400-58071¥124,000

main16400-58071i3B..BU23..BTP;3B..BU23,34..DMP,TR¥124,000198302-198408

W/PS

16400BPLUG, RADIATOR DRAIN COCK

main16417-24200iB,2B,3B..BU2#,3#,4#,5#¥390197708-198408

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24200iB,2B,3B..BU2#,3#,4#,5#¥320197708-198408

16401CAP SUB-ASSY, RADIATOR

main16401-41020iB..BU2#,30¥1,420197708-197810

sub16401-41021¥1,290

main16401-41021iB,2B,3B..BU2#,3#,4#,5#¥1,290197810-198408

16470TANK ASSY, RADIATOR RESERVE

main16470-56070iB,2B..BU2#,3#¥5,900197708-198008

W/O 0K MONITOR

sub16470-56071¥5,800

main16470-56071iB,3B..BU2#,30,32,33,34¥5,800198008-198408

W/O OK MONITOR

main16470-56080iB,2B..BU2#,3#¥10,600197708-198008

W/OK MONITOR

sub16470-56081¥8,800

main16470-56081iB,3B..BU2#,30,32,33,34¥8,800198008-198408

W/OK MONITOR

sub16470-56100

main16470-56090iB,3B..BU35,36,37,4#,5#¥5,800198008-198408

W/O OK MONITOR

main16470-56100iB,3B..BU35,36,37,4#,5#198008-198408

W/OK MONITOR

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12005iB,2B..BU2#,3#¥740197708-198008

sub90445-12897¥910

main90445-12521iB,3B..BU35,36,37,4#,5#¥710198008-198408

main90445-12897iB,3B..BU2#,30,32¥910198008-198408

L=550

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085iB,2B,3B..BU2#,3#,4#,5#¥100197708-198408

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16611-56020iB,2B,3B..BU2#,30,31,32,33,34¥1,440197708-198408

main16611-56030iB,3B..BU35,36,37,4#,5#198008-198408

16471CAP SUB-ASSY, RESERVE TANK

main16471-34030iB,2B,3B..BU2#,3#,4#,5#197708-198408

16571HOSE, RADIATOR, INLET

main16571-56020iB,2B..BU2#,3#¥4,160197708-198408

main16571-56030iB,3B..BU35,36,37,4#,5#¥2,290198008-198408

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90460-50016iB,2B,3B..BU2#,3#,4#,5#¥240197708-198408

ID=50

16572HOSE, RADIATOR, OUTLET

main16572-56030iB..BU20,22,25,30,33¥4,150197708-198408

main16572-56040i2B..BU31¥2,900197904-198408

main16572-56050i3B..BU23..BTP;3B..BU23,34..DMP,TR¥2,680198302-198408

W/PS,WATER PUMP SIDE

main16572-56050iB,2B,3B..BU2#,30,31,32¥2,680197908-198302

W/PS,PUMP SIDE

main16572-56050i3B..BU23..FTP¥2,680198302-198408

PUMP SIDE

main16572-56070iB,3B..BU35,36,37,4#,5#¥2,900198009-198408

main16573-56010i3B..BU23..BTP;3B..BU23,34..DMP,TR¥1,270197908-198408

W/PS,RADIATOR SIDE

main16573-56010i3B..BU23..BTP;3B..BU23,34..DMP,TR¥1,270198302-198408

RADIATRO SIDE

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-50016iB..BU22..DTP;B..BU22,33..T1,T2,T3,TW2¥240198302-198408

W/PS

main90460-50016iB,2B,3B..BU2#,3#,4#,5#¥240197708-198408

RADIATOR SIDE

main90460-50016iB,2B,3B..BU2#,30,31,32,35¥240197708-198302

W/PS,ID=50

main96111-10560iB,2B,3B..BU2#,3#,4#,5#¥230197708-198408

WATER PUMP SIDE

16572CCLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)

main90460-50016i3B..BU23..BTP;3B..BU23,34..DMP,TR¥240197708-198408

WATER PUMP SIDE

main90460-50016i3B..BU23..FTP¥240198302-198408

W/PS,WATER PUMP SIDE

main96111-10560i3B..BU23..FTP¥230197708-198408

PIPE SIDE

main96111-10560i3B..BU23..FTP¥230198302-198408

W/PS,PIPE SIDE

16577PIPE, RADIATOR, NO.7

main16577-56010i3B..BU23..FTP¥4,100197908-198408

W/PS

16701SHROUD SUB-ASSY, FAN

main16701-56050iB..BU2#,30¥7,900197708-198008

main16701-56051iB..BU20,22,30,33198008-198408

main16701-56060iB..BU2#,30197708-198008

W/COOLER

main16701-56061iB..BU20,22,30,33198008-198408

W/COOLER

main16701-56120i2B..BU31197904-198008

main16701-56130i2B..BU31197904-198008

W/COOLER

main16701-56140iB..BU2#,30197908-198008

W/PS

main16701-56141iB..BU20,30198008-198408

W/PS

main16701-56150iB..BU2#,30197908-198008

W/PS & COOLER

main16701-56151iB..BU20,30198008-198408

W/PS & COOLER

main16701-56160i2B..BU31197908-198008

W/PS

main16701-56180i3B..BU21,32198204-198408

main16701-56190iB,3B..BU35,36,37,4#,5#198008-198408

main16701-56200iB,3B..BU35,36,37,4#,5#198008-198408

W/COOLER

main16701-58010i3B..BU23..FTP198204-198408

W/PS OR W/PS&COOLER

8401

9161140825

main91611-40825¥160

9161160820

main91611-60820¥200

9161160825

main91611-60825¥140

9161161020

main91611-61020¥240

9165140814

main91651-40814¥180

9165140816

main91651-40816¥80

9165640616

main91656-40616¥100

34 parts on this diagram · 3 diagrams in section
