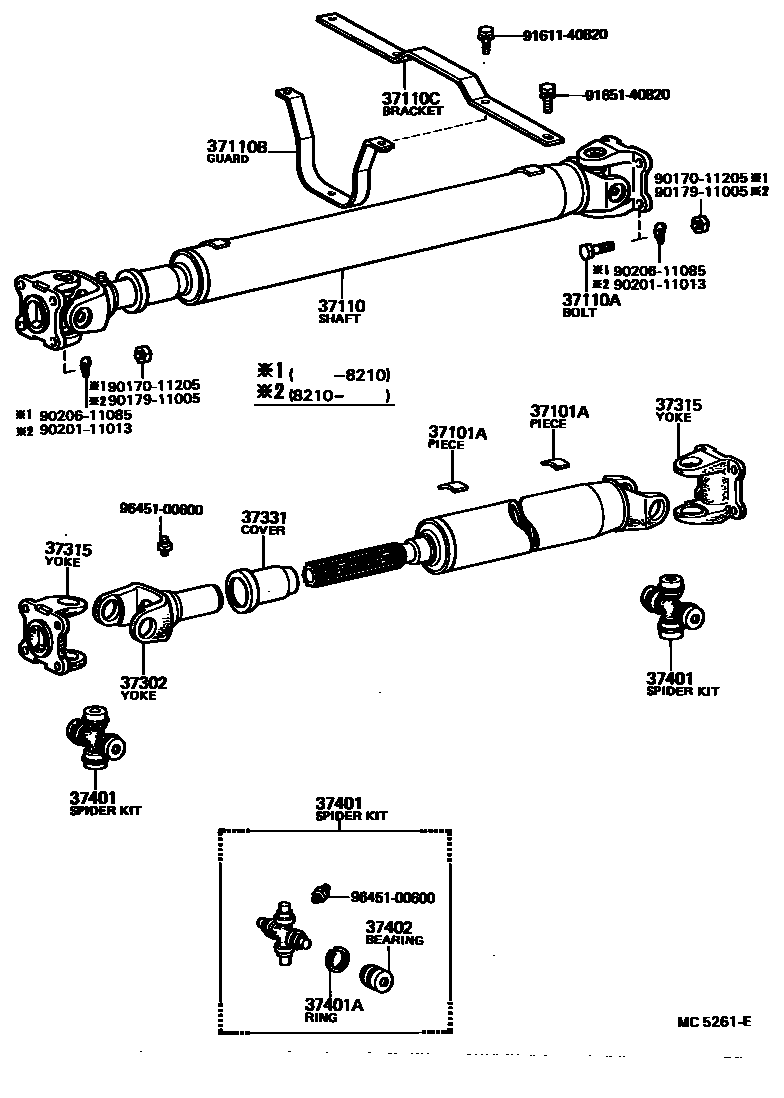

Toyota DYNA — PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0003 1

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iBU2#,3#,4#,5#¥180197708-198408

main90937-01136iBU2#,3#,4#,5#¥200197708-198408

main90937-01140iBU2#,3#,4#,5#¥180197708-198408

main90937-01147iBU2#,3#,4#,5#¥120197708-198408

main90937-01148iBU2#,3#,4#,5#¥110197708-198408

main90937-01149iBU2#,3#,4#,5#¥110197708-198408

main90937-01150iBU2#,3#,4#,5#¥110197708-198408

main90937-01151iBU2#,3#,4#,5#¥120197708-198408

main90937-01152iBU2#,3#,4#,5#¥110197708-198408

main90937-01153iBU2#,3#,4#,5#¥110197708-198408

main90937-01154iBU2#,3#,4#,5#¥110197708-198408

main90937-01155iBU2#,3#,4#,5#¥110197708-198408

main90937-01156iBU2#,3#,4#,5#¥110197708-198408

main90937-01157iBU2#,3#,4#,5#¥110197708-198408

main90937-01158iBU2#,3#,4#,5#¥110197708-198408

37110SHAFT ASSY, PROPELLER

main37110-36201iBU30..M50¥82,300197708-198204

sub37110-36202¥74,800

main37110-36202iBU30,33¥74,800198204-198408

sub37110-36371¥74,800

main37110-36290iBU20..DTP¥81,800197708-198204

main37110-36350iBU20..BTP,CTP,FTP¥82,300197708-198204

sub37110-36351¥74,800

main37110-36351iBU20,22..H50¥74,800198204-198408

sub37110-36471¥74,800

main37110-36360iBU25¥85,100197803-198008

sub37110-36361

main37110-36370iBU30..H50¥82,300198104-198204

sub37110-36371¥74,800

main37110-36371iBU32,34¥74,800198204-198408

main37110-36380iBU35,36..H50¥85,100198008-198204

sub37110-36381¥84,600

main37110-36381iBU36,37¥84,600198204-198408

main37110-36431iBU40,41¥93,500198204-198408

main37110-36441iBU5#198204-198408

main37110-36461iBU45,46198204-198408

main37110-36471iBU21,23¥74,800198204-198408

main37110-36480iBU20,22..M50¥89,800198204-198408

sub37110-36290¥81,800

main37110-60210iBU35..M50¥85,100198008-198204

sub37110-36381¥84,600

37110ABOLT (FOR PROPELLER SHAFT)

main90101-11468iBU2#,3#,4#,50¥210197708-198210

sub90105-11H00¥480

main90105-11013iBU2#,3#,4#,5#¥190198210-198408

37110BGUARD, PROPELLER SHAFT

main51569-36020iBU20,30..ST197708-197904

main51569-36030iBU20..T2197708-197904

main51569-36040iBU20..H50..20T;BU20..T3..03S..WT..ATP197708-198408

main51569-36050iBU20..BTP,CTP197708-197904

main51569-36060iBU20,21,23..BTP,CTP¥3,510197904-198408

main51569-36070iBU40,41,5#¥3,760198204-198408

main51569-36080iBU45,46¥3,650198204-198408

37110CBRACKET, PROPELLER SHAFT GUARD

main51568-36020iBU20..DTP;BU22,33..M50;BU20..TB..ST;BU20,21,23..DM3,TS;BU20..HRF,SRF,T2,TW2;BU30,31,32,34,35,36,37,40,41,5#¥3,710197708-198408

main51568-36050iBU45,46¥3,650198204-198408

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-36010iBU2#,3#,4#,5#¥12,500197708-198408

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-36010iBU2#,3#,4#,5#¥6,400197708-198408

37331COVER, SLIDING SHAFT DUST

main37305-25010iBU2#,3#¥1,150197708-198204

main37305-36010iBU2#,3#,4#,5#¥2,280198204-198408

37401SPIDER KIT, UNIVERSAL JOINT

main04371-36021iBU2#,3#,4#,5#¥9,100197708-198408

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90520-29002iBU2#,3#,4#,5#¥180198101-198408

main90520-29286iBU2#,3#,4#,5#¥180197708-198408

main90520-29287iBU2#,3#,4#,5#¥180197708-198408

main90520-29288iBU2#,3#,4#,5#¥180197708-198408

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-36060iBU2#,3#,4#,5#¥980197708-198408

sub37402-36080¥640

sub90520-29024¥120

sub90520-29025¥120

sub90520-29026¥120

sub90520-29027¥120

9017011205

main90170-11205¥180

9017911005

main90179-11005¥180

9020111013

main90201-11013¥90

9020611085

main90206-11085¥120

9161140820

main91611-40820¥130

9165140820

main91651-40820¥90

9645100600

main96451-00600¥110

18 parts on this diagram · 2 diagrams in section
