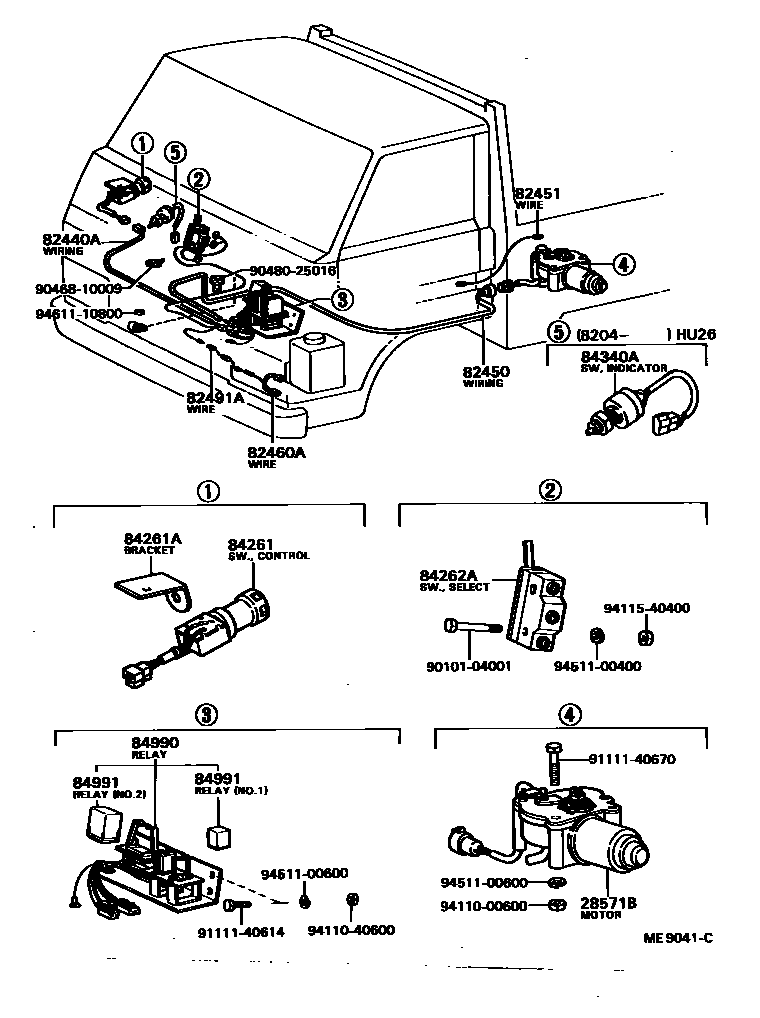

Toyota DYNA — POWER TAKE-OFF CONTROL

28571BMOTOR, POWER TAKE-OFF CONTROL

main28571-56130iB,3B..BU2#,3#..CBU¥63,900198008-198408

82440AWIRING ASSY, POWER TAKE-OFF CONTROL, NO.1

main82440-93300iBU20,21,23..DM3..CBU198008-198408

82450WIRING ASSY, POWER TAKE-OFF CONTROL, NO.2

main82450-93300iBU20,21,23..DM3..CBU198008-198408

82451WIRE, POWER TAKE-OFF CONTROL, NO.1

main82451-93300iBU20,21,23..DM3..CBU198008-198408

82460AWIRE, POWER TAKE-OFF CONTROL, NO.3

main82460-93300iBU20,21,23..DM3..CBU198008-198408

82491AWIRE, POWER TAKE-OFF CONTROL, NO.2

main82491-93300iBU20,21,23..DM3..CBU198008-198408

84261SWITCH, POWER TAKE-OFF CONTROL

main84261-93300iBU20,21,23..DM3..CBU198008-198408

84261ABRACKET, POWER TAKE-OFF CONTROL SWITCH

main74762-93300iBU20,21,23..DM3..CBU198008-198408

84262ASWITCH, POWER TAKE-OFF SELECT

main84262-93300iBU20,21,23..DM3..CBU198008-198408

84340ASWITCH, POWER TAKE-OFF INDICATOR

84990RELAY ASSY, POWER TAKE-OFF CONTROL, NO.1

main84990-93300iBU20,21,23..DM3..CBU198008-198408

84991RELAY, POWER TAKE-OFF CONTROL, NO.2

main84991-93300iBU20,21,23..DM3..CBU198008-198408

NO.1

main84992-93300iBU20,21,23..DM3..CBU198008-198408

NO.2

9010104001

main90101-04001

9046810009

main90468-10009

9048025016

main90480-25016

9111140614

main91111-40614

9111140670

main91111-40670¥130

9411000600

main94110-00600

9411040600

main94110-40600¥80

9411540400

main94115-40400¥240

9451100400

main94511-00400¥200

9451100600

main94511-00600¥120

9461110800

main94611-10800¥80

23 parts on this diagram · 1 diagram in section
