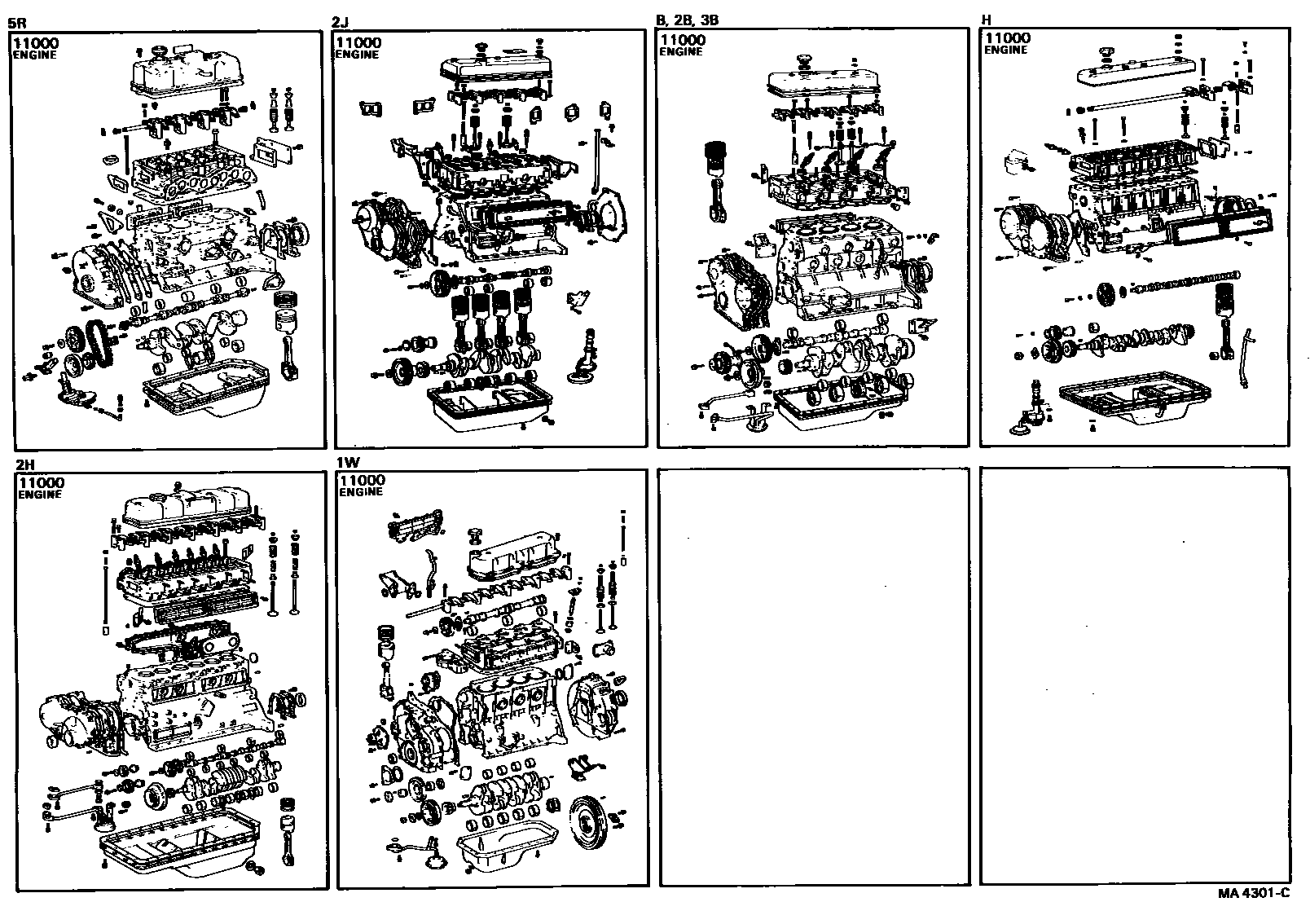

Toyota DYNA — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-56011iB..BU2#,30¥931,000197708-197811

sub19000-56012

main19000-56012iB..BU2#,30197811-197904

sub19000-56015¥978,000

sub12311-56010¥5,900

sub19850-56012¥3,960

main19000-56013iB..BU2#,30..5H197904-198004

sub19000-56016

sub12311-56010¥5,900

sub19850-56012¥3,960

main19000-56016iB..BU2#,30..5H198004-198008

main19000-56050iB..BU2#,30¥845,000197708-197811

W/OK MONITOR

sub19000-56051

main19000-56051iB..BU2#,30197811-197904

W/OK MONITOR

sub19000-56053

sub12311-56010¥5,900

sub19850-56012¥3,960

main19000-56052iB..BU2#,30197904-198004

W/OK MONITOR

sub19000-56054

sub12311-56010¥5,900

sub19850-56012¥3,960

main19000-56054iB..BU2#,30198004-198008

W/OK MONITOR

main19000-56090iB..BU20,30,35¥809,000198008-198201

sub19000-56091¥809,000

sub22177-56042

sub22811-56011¥940

sub90179-08161¥300

sub91611-41014¥160

main19000-56091iB..BU20,30,35¥809,000198201-198209

sub19000-56092¥809,000

main19000-56092iB..BU20,30¥809,000198209-198302

sub19000-56120¥846,000

main19000-56110iB..BU22,33198302-198408

main19000-57031i2B..BU31198004-198008

main19000-57040i2B..BU31197904-198004

sub19000-57031

sub12311-56010¥5,900

sub19850-56012¥3,960

main19000-57050i2B..BU31197904-198004

W/OK MONITOR

sub19000-57051

sub12311-56010¥5,900

sub19850-56012¥3,960

main19000-57051i2B..BU31198004-198008

W/OK MONITOR

main19000-58010i3B..BU36198009-198201

sub22177-56042

main19000-58011i3B..BU21,32,36,4#,50¥870,000198201-198209

sub19000-58012¥872,000

main19000-58012i3B..BU21,32,36,4#,50¥872,000198209-198302

sub19000-58080¥823,000

main19000-58070i3B..BU23,34,37,4#,51¥907,000198302-198408

1 parts on this diagram · 1 diagram in section
