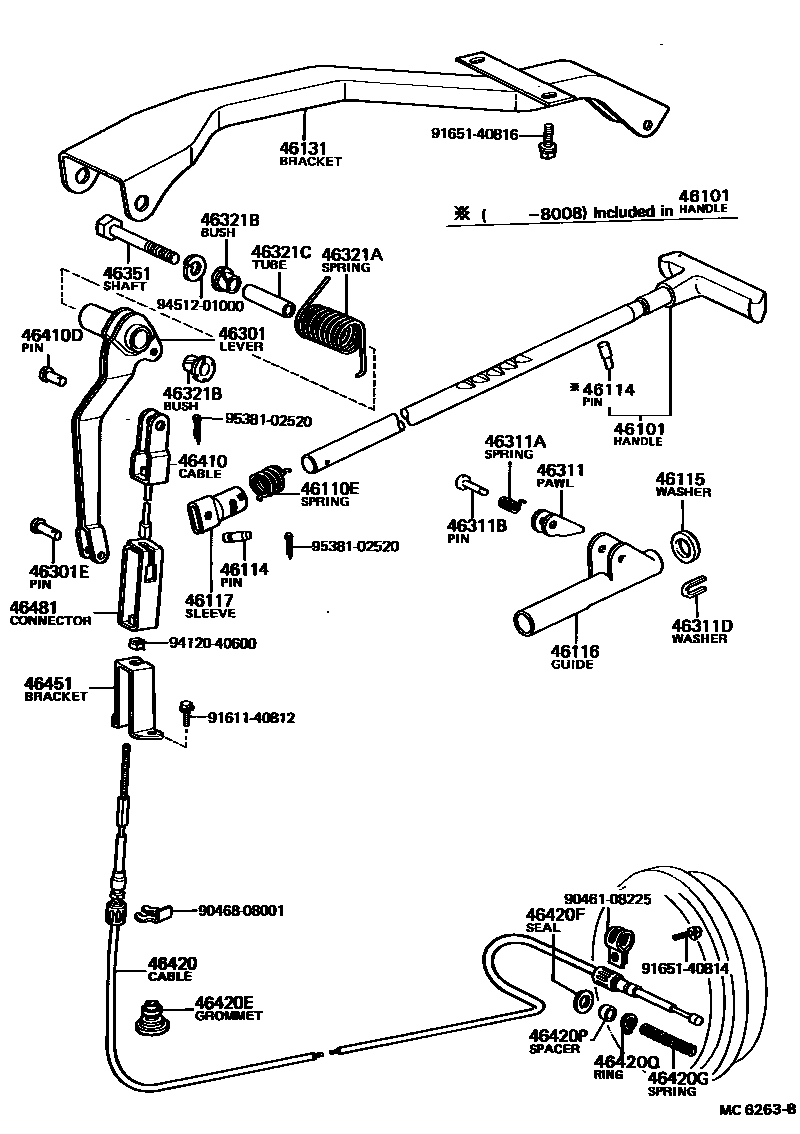

Toyota DYNA — PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1 0005 1

46101HANDLE SUB-ASSY, PARKING BRAKE CONTROL

main46101-36090iBU20,30¥2,670197708-197712

sub46101-36091¥2,670

main46101-36091iBU2#,3#¥2,670197712-198008

sub46101-36092¥2,710

main46101-36161iBU2#,3#,4#,5#¥2,530198008-198408

46110ESPRING, TORSION(FOR PARKING BRAKE PLUNGER)

main90508-14038iBU2#,3#,4#,5#¥200197708-198408

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iBU2#,3#,4#,5#¥160197708-198408

UPR

main46114-30010iBU2#,3#,4#,5#¥230197708-198408

LWR

46115WASHER, PARKING BRAKE PLUNGER

main46115-20010iBU2#,3#,4#,5#¥200197708-198408

46116GUIDE, PARKING BRAKE PLUNGER

main46116-36090iBU2#,3#,4#,5#¥760197708-198408

46117SLEEVE, PARKING BRAKE PLUNGER

main46117-30010iBU2#,3#,4#,5#¥330197708-198408

46131BRACKET SUB-ASSY, PARKING BRAKE

main46131-36060iBU20,30197708-197712

sub46131-36061¥8,100

sub46131-36070

main46131-36061iBU2#,3#,4#,5#¥8,100197712-198408

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-36050iBU2#,3#,4#,5#¥2,430197708-198408

46301EPIN, W/HOLE(FOR INTERMEDIATE LEVER)

main90240-08010iBU2#,3#,4#,5#¥230197708-198408

46311PAWL, PARKING BRAKE

main46311-28010iBU2#,3#,4#,5#¥600197708-198408

46311ASPRING(FOR PARKING BRAKE PAWL)

main90508-08041iBU2#,3#,4#,5#¥140197708-198408

46311BPIN, PARKING BRAKE PAWL PIVOT

main90249-05010iBU2#,3#,4#,5#¥230197708-198408

46311DWASHER, TYPE C(FOR PARKING BRAKE PAWL)

main90213-03007iBU2#,3#,4#,5#¥220197708-198408

46321ASPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90508-35002iBU2#,3#,4#,5#¥430197708-198408

46321BBUSH(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90386-13007iBU2#,3#,4#,5#¥160197708-198408

46321CTUBE(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90387-10004iBU2#,3#,4#,5#¥210197708-198408

46351SHAFT, INTERMEDIATE LEVER PIVOT

main91111-71070iBU20,30¥320197708-197801

main91111-71075iBU2#,3#,4#,5#¥260197801-198408

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-36120iBU2#,3#¥1,020197708-198201

sub46410-36121¥950

main46410-36121iBU2#,3#,4#,5#¥950198201-198408

sub46410-36350¥1,210

46410DPIN(FOR PARKING BRAKE FRONT CABLE)

main90240-08094iBU2#,3#,4#,5#¥250197708-198408

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-36040iBU20..ST;BU20..T2,TW2;BU22,30,33..M50¥7,500197803-198408

main46420-36060iBU20..T2;BU20,30..ST¥8,000197708-197803

main46420-36070iBU20,21,23..CTP,FTP¥7,500197708-198408

main46420-36110iBU30..06S;BU30..25T¥7,300197708-197904

main46420-36110iBU20..CTP¥7,300197803-197904

main46420-36150iBU20,30..T3..WT..20T¥8,000197708-197904

main46420-36160iBU20,21,23..DM3¥6,800197904-198408

main46420-36170iBU36¥7,900198009-198204

main46420-36180iBU36,37..20T;BU36,37..GTP¥7,800198008-198408

main46420-36190iBU35..M50¥7,900198008-198204

main46420-36210iBU4#,5#;BU36,37..275,30T¥7,800198204-198408

main46420-36230iBU37..275,30T¥8,000198302-198408

W/H50S TRANSMISSION

46420EGROMMET(FOR PARKING BRAKE CABLE CLAMP)

main90480-26006iBU2#,3#,4#,5#¥340197708-198408

46420FSEAL, DUST(FOR PARKING BRAKE CABLE)

main90303-10001iBU2#,3#,4#,5#¥120197708-198408

46420GSPRING(FOR PARKING CABLE INNER WIRE SET)

main90501-14003iBU25,31;BU30..06S;BU30..25T¥170197708-198408

7INCHES

main90501-14021iBU20..BTP,DTP;BU20..HRF,SRF,T1,TW1,TW2¥180197904-198408

6.3INCHES

main90501-14021iBU20..T2;BU20,30..ST¥180197803-197904

main90501-14026iBU20..BTP¥190197708-197904

6.3INCHES

main90501-14026iBU20,30..T3..WT..20T¥190197803-197904

46420PSPACER, PARKING BRAKE

main90560-08002iBU2#,3#,4#,5#¥180197708-198408

46420QRING, E(FOR PARKING BRAKE CABLE)

main96160-00700iBU2#,3#,4#,5#¥200197708-198408

46451BRACKET, CABLE SUPPORT

main46451-36010iBU2#,3#,4#,5#¥2,250197708-198408

46481CONNECTOR, PARKING CABLE

main46481-36011iBU2#,3#¥840197708-198201

sub46481-36012¥760

main46481-36012iBU2#,3#,4#,5#¥760198201-198408

9046108225

main90461-08225¥140

9046808001

main90468-08001¥210

9161140812

main91611-40812¥110

9165140814

main91651-40814¥180

9165140816

main91651-40816¥80

9412040600

main94120-40600¥170

9451201000

main94512-01000¥90

9538102520

main95381-02520¥130

35 parts on this diagram · 5 diagrams in section
