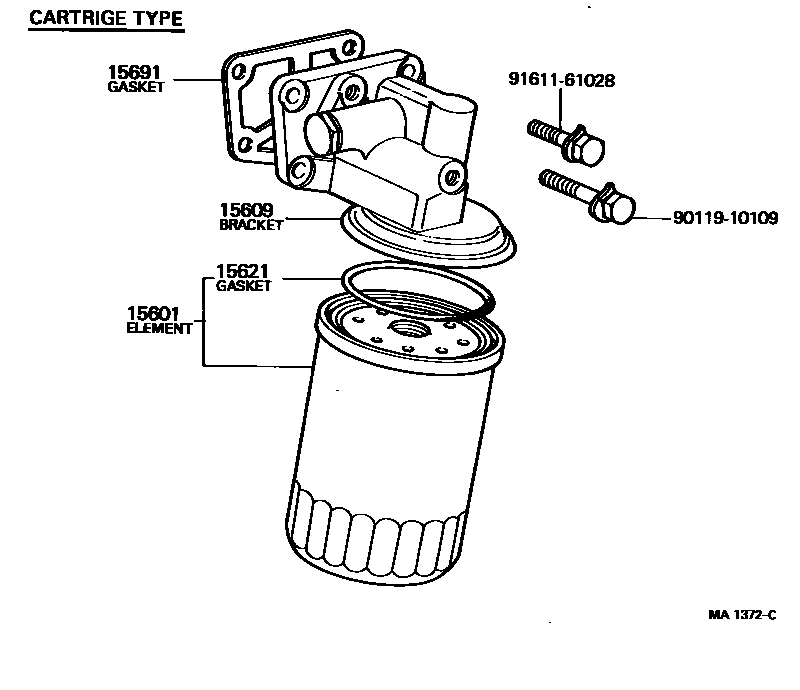

Toyota DYNA — OIL FILTER

0001 1 0002 1

15601FILTER SUB-ASSY, OIL

main15600-41010iB,2B,3B..BU2#,3#,4#,5#¥1,470197708-198408

sub90915-40002¥1,470

15609BRACKET SUB-ASSY, OIL FILTER

main15609-56020iB,2B..BU2#,3#197708-198008

main15609-56040iB,3B..BU2#,3#,4#,5#198008-198408

15621GASKET, OIL FILTER BODY

main15621-41010iB,2B,3B..BU2#,3#,4#,50197708-198208

15691GASKET, OIL FILTER

main15691-56020iB,2B..BU2#,3#¥450197708-198008

sub15691-56021¥400

main15691-56030iB,3B..BU2#,3#,4#,5#¥520198008-198408

sub15691-56031¥500

9011910109

main90119-10109¥250

9161161028

main91611-61028¥140

6 parts on this diagram · 2 diagrams in section
