Toyota DYNA — METER

0001 1 0002 1 0003 1 0004 1

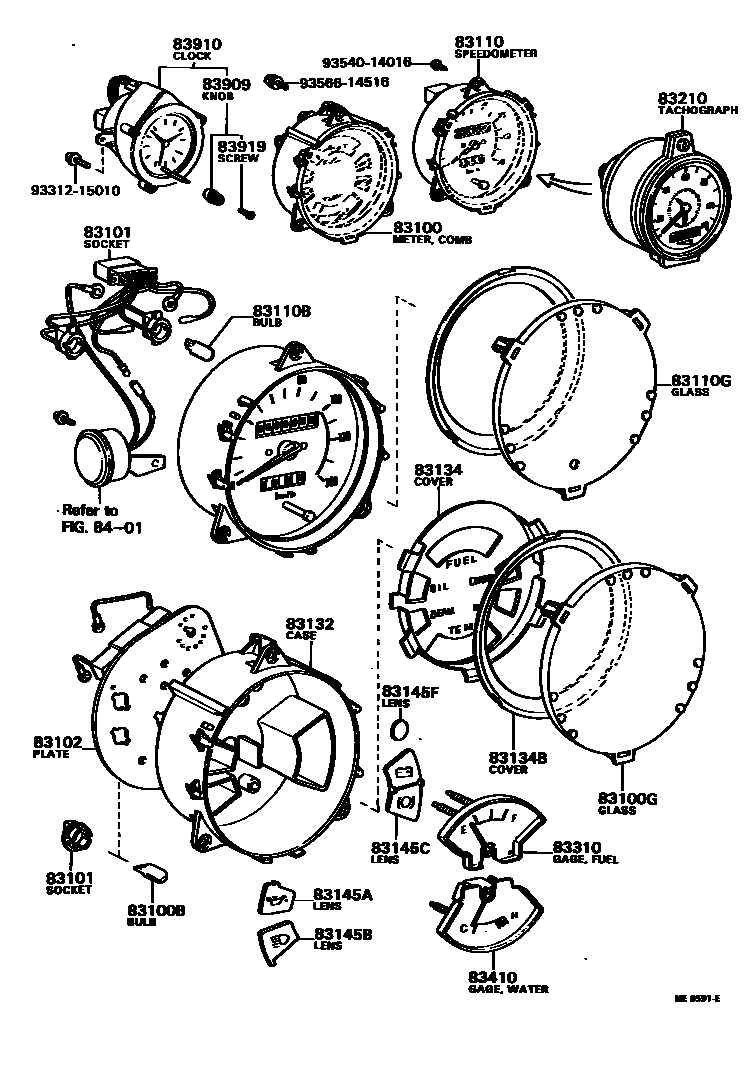

83100METER ASSY, COMBINATION

main83100-95400iBU2#,3#197708-197912

24V

main83100-95403iBU2#,3#197912-198008

24V

main83100-95405iBU2#,3#,4#,5#¥11,400198008-198408

24V

main83100-95406iBU36..TB198204-198302

24V,W/FUEL WARNING

main83100-95406iBU2#,33,34198302-198408

24V,W/FUEL WARNING

main83100-95406iBU20,3#198008-198204

24V,W/FUEL WARNING

83100BBULB, COMBINATION METER, NO.1

main99134-12030iBU2#,3#,4#,5#¥120197708-198408

�Q�S�u�@�R�v,24V 3W

83100GGLASS, COMBINATION METER

main83134-95400iBU2#,3#,4#,5#¥1,200197708-198408

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-20040iBU2#,3#,4#,5#¥220197708-198408

COMBINATION METER

main83101-95400iBU20,22..ST198204-198408

SPEEDOMETER

main83101-95402iBU2#,3#,4#,5#198008-198408

SPEEDOMETER,W/*EB

main83101-95402iBU2#,30..WT197708-197904

SPEEDOMETER,W/*EB

main83101-95402iBU2#,3#..WT197904-198008

SPEEDOMETER,W/*EB

main83101-95418iBU30,35;BU20..M50;BU20..KKT,TSK;BU20..TB..H50198008-198204

SPEEDOMETER

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-95400iBU2#,3#197708-198008

24V

main83247-95402iBU2#,3#,4#,5#¥1,750198008-198408

24V

83110SPEEDOMETER ASSY

main83110-95405iBU2#;BU30..20T;BU30..06S¥30,200197708-198008

24V

sub83110-95412

main83110-95412iBU25197708-197904

24V,W/*EB

main83110-95412iBU2#,3#..WT197904-198008

24V,W/*EB

main83110-95418iBU30,35;BU20..M50;BU20..KKT,TSK;BU20..TB..H50¥21,600198008-198204

24V

main83110-95418iBU20,22..ST¥21,600198204-198408

24V

main83110-95419iBU2#,3#,4#,5#¥22,900198008-198408

24V,W/*EB

83110BBULB, SPEEDOMETER

main99134-12030iBU2#,3#,4#,5#¥120197708-198408

24V 3W

83110GGLASS, SPEEDOMETER

main83138-95400iBU2#,3#,4#,5#¥1,200197708-198408

83132CASE, COMBINATION METER

main83132-95401iBU2#,3#,4#,5#197708-198408

83134COVER, COMBINATION METER, NO.1

main83134-95402iBU2#,3#197708-198008

main83134-95403iBU2#,3#,4#,5#198008-198408

83134BCOVER, COMBINATION METER, NO.2

main83134-95401iBU2#,3#,4#,5#¥4,710197708-198408

83145ALENS, METER, NO.2

main83145-95410iBU2#,3#197708-198008

main83145-95413iBU2#,3#,4#,5#198008-198408

83145BLENS, METER, NO.3

main83145-95411iBU2#,3#197708-198008

main83145-95414iBU2#,3#,4#,5#198008-198408

83145CLENS, METER, NO.4

main83145-95412iBU2#,3#197708-198008

main83145-95415iBU2#,3#,4#,5#198008-198408

83145FLENS, METER, NO.7

main83145-95416iBU2#,30,32..TB..03S..WT..20T198204-198302

main83145-95416iBU20,3#198008-198204

main83145-95416iBU36..TB198204-198408

main83145-95416iBU23..DM1,DM4198302-198408

83210TACHOGRAPH ASSY

main83210-95400iBU2#,3#197708-198204

24V,7-DAYS

main83210-95402iBU20,3#198102-198204

24V,1-DAY

main83210-95404iBU2#,3#,4#,5#198204-198408

24V,7-DAYS

main83210-95405iBU2#,3#,4#,5#198204-198408

24V,1-DAY

83310GAGE ASSY, FUEL RECEIVER

main83243-95400iBU2#,3#¥4,060197708-198008

main83243-95401iBU2#,3#,4#,5#¥3,850198008-198408

main83243-95402iBU21..DM1,DM4¥3,870198204-198302

W/FUEL WARNING

main83243-95402iBU36..TB¥3,870198204-198408

W/FUEL WARNING

main83243-95402iBU23..DM1,DM4¥3,870198302-198408

W/FUEL WARNING

main83243-95402iBU20,3#¥3,870198008-198204

W/FUEL WARNING

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-95400iBU2#,3#¥4,060197708-197912

main83244-95401iBU2#,3#,4#,5#¥2,620198008-198408

main83244-95430iBU2#,3#197912-198008

83909KNOB, CLOCK

main83909-14012iBU36..TB¥200198008-198408

83910CLOCK ASSY

main83910-95400iBU35,37,40,41,5#¥25,100198008-198408

83919SCREW, CLOCK

main83919-14012iBU35,37,40,41,5#¥240198008-198408

8401

9331215010

main93312-15010¥100

9354014016

main93540-14016¥120

9356614516

main93566-14516¥130

25 parts on this diagram · 4 diagrams in section
