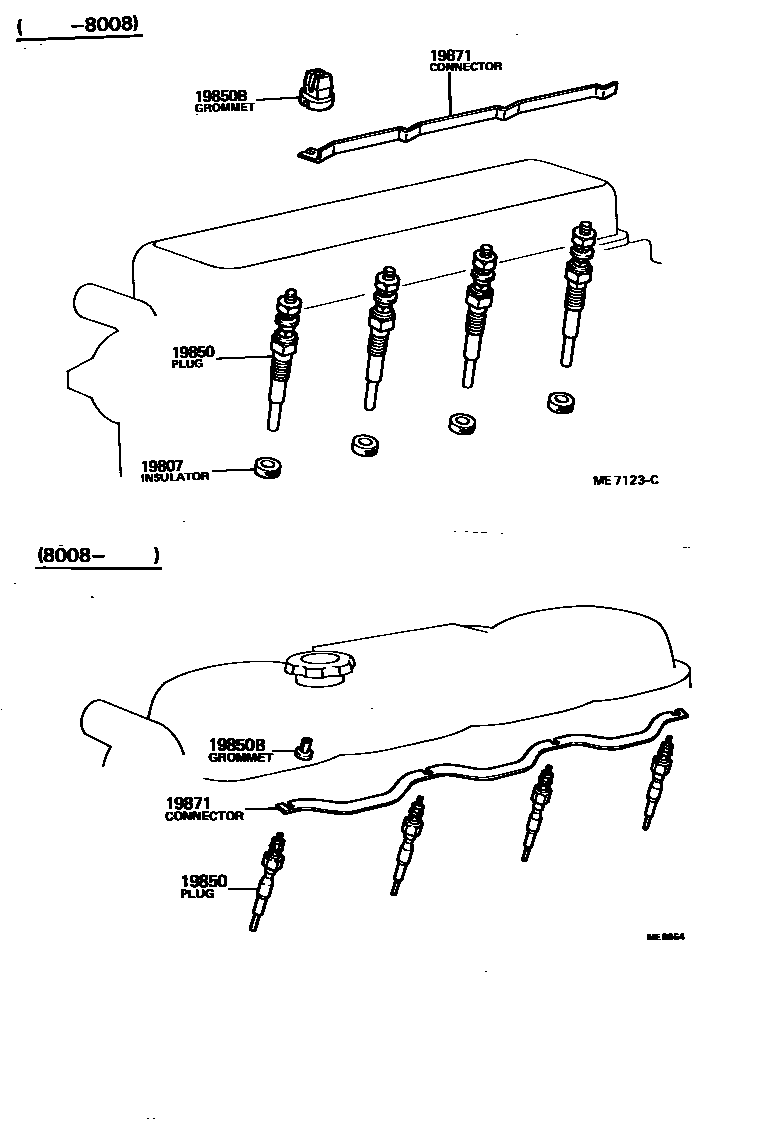

Toyota DYNA — IGNITION COIL & SPARK PLUG / GLOW PLUG

19807INSULATOR SUB-ASSY, GLOW PLUG, NO.1

main19877-56010iB,2B..BU2#,3#¥310197708-198008

19850PLUG ASSY, GLOW

main19850-56012iB,2B..BU2#,3#¥3,960197708-198008

���a�u�|�f�u���Q�S�u�|�Q�O�D�T�u,*24V-20.5V

main19850-68040iB,3B..BU20,3#¥4,180198008-198204

*24V-20.5V

main19850-68060iB,3B..BU2#,3#,4#,5#¥4,000198204-198408

���a�u�|�f�u���Q�S�u�|�P�S�u,*24V-14V

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024iB,3B..BU2#,3#,4#,5#¥90198008-198408

main90189-05011iB,2B..BU2#,3#¥210197904-198008

main90189-06004iB..BU2#,30¥200197708-197904

19871CONNECTOR, GLOW PLUG NO.1

main19871-56010iB,2B..BU2#,3#¥1,470197708-198008

sub19871-56020¥1,650

main19871-56020iB,3B..BU2#,3#,4#,5#¥1,650198008-198408

4 parts on this diagram · 1 diagram in section
