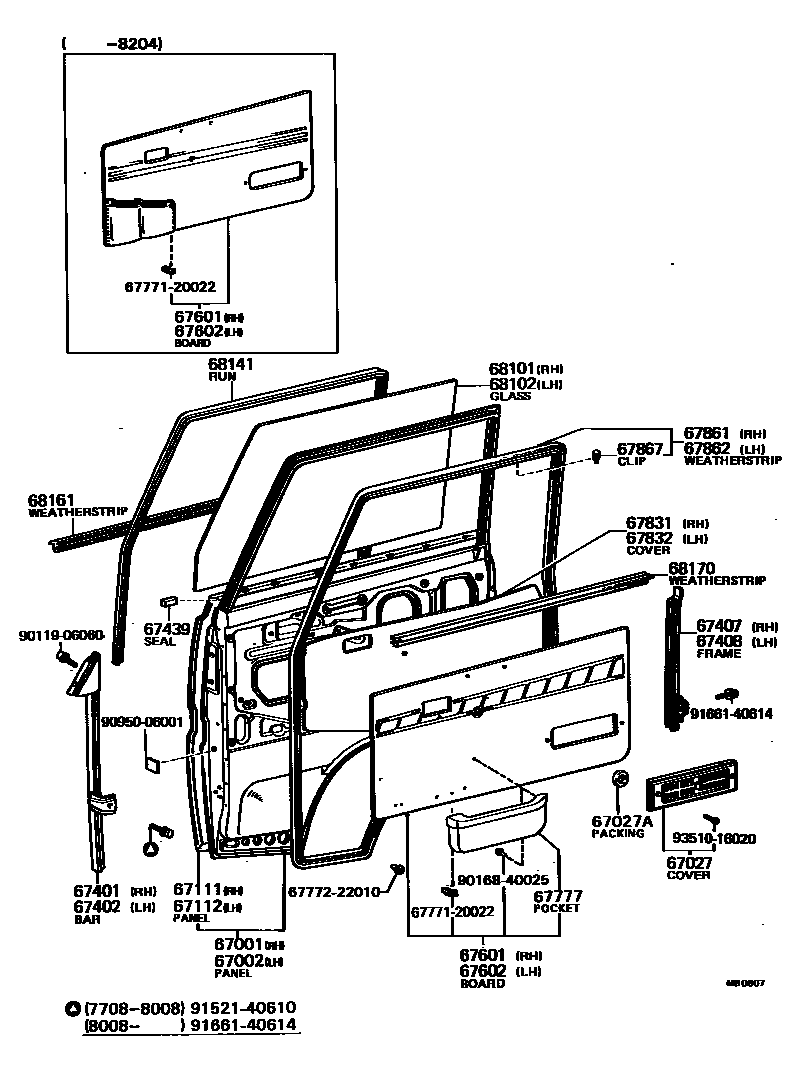

Toyota DYNA — FRONT DOOR PANEL & GLASS

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-95404iBU2#,3#197708-198012

sub67001-95407¥60,900

sub68170-95402¥2,860

main67001-95407iBU20,3#..TB..03S..WT¥60,900198008-198012

CUSTOM PACK SPEC

sub67001-95413¥60,900

main67001-95407iBU20,3#¥60,900198012-198204

sub67001-95413¥60,900

main67001-95413iBU2#,3#,4#,5#¥60,900198204-198308

sub67001-95414¥60,800

main67001-95414iBU2#,3#,4#,51¥60,800198308-198408

sub67001-95420¥60,800

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-95404iBU2#,3#¥60,900197708-198012

sub67002-95407¥60,900

sub68170-95402¥2,860

main67002-95405iBU2#,3#¥60,900197708-198012

W/POWER WINDOW

sub67002-95408¥60,900

sub68170-95402¥2,860

main67002-95407iBU20,3#..TB..03S..WT¥60,900198008-198012

CUSTOM PACK SPEC

sub67002-95413¥60,900

main67002-95407iBU20,3#¥60,900198012-198204

sub67002-95413¥60,900

main67002-95408iBU20,3#¥60,900198012-198204

W/POWER WINDOW

sub67002-95415¥60,900

main67002-95413iBU2#,3#,4#,5#¥60,900198204-198308

sub67002-95414¥60,800

main67002-95414iBU2#,3#,4#,51¥60,800198308-198408

sub67002-95422¥60,800

main67002-95415iBU2#,3#,4#,5#¥60,900198204-198308

W/POWER WINDOW

sub67002-95416¥60,800

main67002-95416iBU2#,3#,4#,51¥60,800198308-198408

W/POWER WINDOW

67027COVER SUB-ASSY, DOOR VENTILATING HOLE

main68300-95400iBU2#,3#¥1,400197708-198204

main68300-95401iBU2#,3#,4#,5#¥1,380198204-198408

67027APACKING, FRONT SCUFF

main58644-95A00iBU2#,3#,4#,5#¥190197708-198408

67111PANEL, FRONT DOOR, OUTER RH

main67111-95901iBU2#,3#,4#,5#¥15,700197907-198408

67112PANEL, FRONT DOOR, OUTER LH

main67112-95901iBU2#,3#,4#,5#¥15,700197907-198408

67401BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT RH

main67401-95400iBU2#,3#,4#,5#¥1,630197708-198408

67402BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT LH

main67402-95400iBU2#,3#,4#,5#¥1,550197708-198408

67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67407-95400iBU2#,3#,4#,5#¥930197708-198408

67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67408-95400iBU2#,3#,4#,5#¥930197708-198408

67439SEAL, FRONT JOINT PIECE

main67439-95400iBU2#,3#,4#,5#197708-198408

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-95400iBU2#,3#¥6,400197708-198008

W/POCKET

sub67610-37040

main67610-95401iBU2#,3#¥6,400197708-198008

W/O POCKET

sub67610-95400¥6,400

main67610-95402iBU20,3#¥6,500198008-198204

main67610-95403iBU20,3#..TB..03S..WT198008-198204

FULL TRIM

main67610-95405iBU2#,3#,4#,5#¥7,900198204-198408

sub67610-37050¥7,900

main67610-95407iBU21,23..(DM1,DM4,TB)..03S;BU20,22,3#,40,41,5#..03S..WT198204-198408

FULL TRIM

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-95400iBU2#,3#¥6,400197708-198008

sub67620-95401¥6,400

main67620-95402iBU2#,3#197708-198008

W/POWER WINDOW

sub67620-95401¥6,400

main67620-95403iBU20,3#¥5,300198008-198204

sub67620-37060¥5,300

main67620-95404iBU20,3#..TB..03S..WT198008-198204

FULL TRIM

main67620-95405iBU20,3#..TB..03S..WT198008-198204

FULL TRIM,W/POWER WINDOW

main67620-95406iBU20,3#¥5,300198008-198204

W/POWER WINDOW

sub67620-37070

main67620-95408iBU2#,3#,4#,5#¥6,000198204-198408

sub67620-37090¥6,000

main67620-95410iBU2#,3#,4#,5#¥6,000198204-198408

W/POWER WINDOW

sub67620-37100

main67620-95411iBU21,23..(DM1,DM4,TB)..03S;BU20,22,3#,40,41,5#..03S..WT198204-198408

FULL TRIM

main67620-95412iBU21,23..(DM1,DM4,TB)..03S;BU20,22,3#,40,41,5#..03S..WT198204-198408

FULL TRIM,W/POWER WINDOW

67777POCKET, FRONT DOOR TRIM, RH

main67778-95400iBU2#,3#,4#,5#198204-198408

sub67778-22030¥4,730

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-95402iBU2#,3#197708-198008

main67831-95403iBU2#,3#,4#,5#¥760198008-198408

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-95402iBU2#,3#197708-198008

main67832-95403iBU2#,3#,4#,5#¥760198008-198408

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-95402iBU2#,3#,4#,5#¥6,300197708-198408

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-95402iBU2#,3#,4#,5#¥6,300197708-198408

67867CLIP, DOOR WEATHERSTRIP

main67867-95401iBU2#,3#,4#,5#¥210197708-198408

WHITE

main67868-30040iBU2#,3#¥110198107-198408

NATURAL

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-95402iBU2#,3#¥10,900197708-198008

*TT,T=4.0

main68111-95403iBU20..CTP;BU25,3#..5H;BU20..5H..M50;BU20..KKT,TSK;BU20..BTP..DSL;BU20..TB..H50..03S..20T¥10,000197708-198408

*TEM,T=4.0

sub68111-95402¥10,900

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-95402iBU2#,3#¥10,900197708-198008

*TT,T=4.0

main68112-95403iBU20..CTP;BU25,3#..5H;BU20..5H..M50;BU20..KKT,TSK;BU20..BTP..DSL;BU20..TB..H50..03S..20T¥10,000197708-198408

*TEM,T=4.0

sub68112-95402¥10,900

68141RUN, FRONT DOOR GLASS

main68141-95404iBU2#,3#,4#,5#¥3,150197708-198408

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-95400iBU2#,3#,4#,5#¥2,710197708-198408

RH

main68210-95401iBU2#,3#,4#,5#¥2,710197708-198408

LH

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-95400iBU2#,3#¥2,870197708-198012

sub68170-95402¥2,860

main68170-95402iBU2#,3#,4#,5#¥2,860198012-198408

6777120022WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20022¥200

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010¥170

9011906060

main90119-06060¥600

9016840025

main90168-40025¥70

9095006001

main90950-06001¥170

9152140610

main91521-40610¥110

9166140614

main91661-40614¥120

9351016020

main93510-16020¥240

32 parts on this diagram · 1 diagram in section
