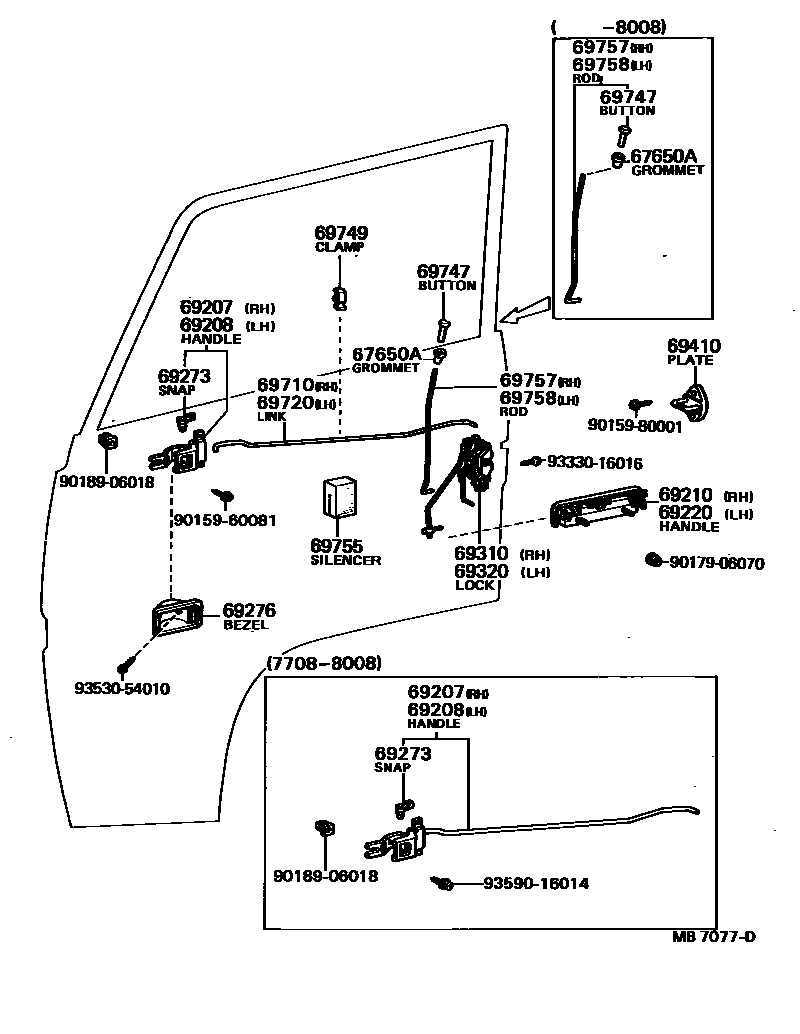

Toyota DYNA — FRONT DOOR LOCK & HANDLE

67650AGROMMET(FOR DOOR PANEL LOCK BUTTON)

main67689-95400iBU21,23..(DM1,DM4,TB)..03S;BU20,22,3#,40,41,45,5#..03S..WT198204-198408

FULL TRIM

main67689-95A00iBU20,3#..TB..03S..WT¥710198008-198204

FULL TRIM

main90480-10102iBU2#,3#,4#,5#¥190197708-198408

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-95400iBU2#,3#,4#,5#¥2,080198204-198408

main69205-95A00iBU20,3#¥2,070198008-198204

main69710-95402iBU2#,3#¥2,680197708-198008

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-95400iBU2#,3#,4#,5#¥2,080198204-198408

main69720-95402iBU2#,3#¥2,680197708-198008

main69720-95403iBU20,3#¥2,760198008-198204

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-95403iBU2#,3#,4#,5#¥3,840197708-198408

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-95403iBU2#,3#,4#,5#¥3,840197708-198408

69273SNAP, DOOR INSIDE HANDLE ROD

main69279-12010iBU2#,3#¥300197708-198008

main69279-12010iBU2#,3#,4#,5#¥300198008-198408

RH

main69279-16010iBU2#,3#,4#,5#¥270198008-198408

LH

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69276-95400iBU2#,3#,4#,5#¥470198204-198408

main69276-95A00iBU2#,3#¥410197708-198204

69310LOCK ASSY, FRONT DOOR, RH

main69310-95404iBU2#,3#,4#,5#¥6,500197708-198408

69320LOCK ASSY, FRONT DOOR, LH

main69320-95404iBU2#,3#,4#,5#¥6,500197708-198408

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-22020iBU2#,3#,4#,5#¥1,090197708-198408

sub69410-89103¥1,050

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69715-95401iBU2#,3#,4#,5#¥700198008-198408

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69716-95401iBU2#,3#,4#,5#¥700198008-198408

69747BUTTON, DOOR LOCKING

main69747-20020iBU2#,3#,4#,5#¥250197708-198408

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12010iBU2#,3#,4#,50¥140197708-198208

main69749-30020iBU2#,3#,4#,5#¥280198208-198408

69755SILENCER, FRONT DOOR LOCK LINK

main69759-95500iBU2#,3#¥300197708-198008

69757ROD, FRONT DOOR LOCKING CONTROL, NO.2 RH

main69705-95402iBU2#,3#197708-198008

sub69747-20020¥250

sub69757-95401¥710

main69757-95401iBU2#,3#,4#,5#¥710198008-198408

69758ROD, FRONT DOOR LOCKING CONTROL, NO.2 LH

main69706-95401iBU2#,3#197708-198008

sub69747-20020¥250

sub69758-95401¥710

main69758-95401iBU2#,30,32,35,36,40,45,50¥710198008-198408

9015960081

main90159-60081¥70

9015980001

main90159-80001¥120

9017906070

main90179-06070¥180

9018906018

main90189-06018¥80

9333016016

main93330-16016¥140

9353054010

main93530-54010¥70

9359016014

main93590-16014¥280

24 parts on this diagram · 1 diagram in section
